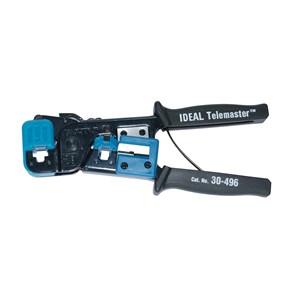

Pressverktyg för modularkontakter- RJ
Pressverktyg för modularkontakter, utrustad med en färdiginställd skal- och klippfunktion.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Modularplugg
- Compression shape:
- Notching

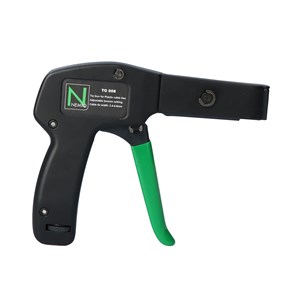

TG 008
Hand Tool for Plastic cable ties. The tool have adjustable tension setting and automatic cutting function. Can handle cable ties from 2.4-4.8mm width.
TG 008: Tool for professional use in metal.
Length: 165 mm
- Tensioning strength:
- Manual
- Material tool:
- Plastic
- Property:
- Automatic cut off
- Construction type:
- Ställbart dragtryck, Automatisk klipp
- Construction/operation:
- Mechanic one hand
- Material cable tie:
- Plastic
- MIL specified:
- No
Crimp tool - Basic
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors, Screen connector
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals, Non-insulated terminals, roller compaction, Coaxial
- Compression shape:
- Hexagon, Oval pressing, Roll compression (shrinking)

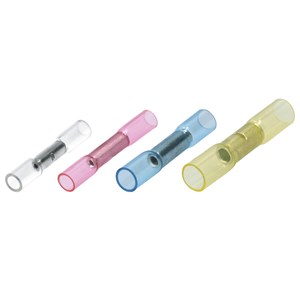

Shrink Splice Sleeves CS-series
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief.
Protects against vibration in rugged environments.
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyethylene (PE) Ethylene Vinyl Acetate (EVAc)
Internal adhesive: PE-LD
Shrinkage temperature: 100 °C
Shrinkage rate: 3:1
Halogen-free
Transparent insulation, which means that visual inspection can be done after shrinkage.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Shrink insulation PE
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Surface protection:
- Tinned
- Material:
- Copper
- Voltage max:
- 600V
NP 695
Indent crimp tool for cable lugs, splices and uninsulated DIN terminals. Stepless settings of crimping dies depending on cable series and area of cable lug.
Standard scale for:
KS / KR 6.0 mm²
KSF / KRF 10-70 mm²
KST / KRT 10-95 mm²
KSD / KRD 16-95 mm²
DIN 46234 6.0-70 mm²
KRDIN/KSDIN 10-95 mm²
Crimps made with this tool fulfills IEC 61238-1.
Built-in ratchet and release button. Completed crimps with settings according to scale on tool will fulfill SS-EN 61238-1.
Length: 525 mm.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- Compression shape:
- Arbour clamping
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes

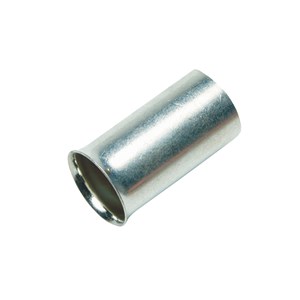

Uninsulated cord end-sleeves, CN-Series
Temperature range: Up to 110º C (230º F)
Max. voltage: 600V
Easy entry
DIN 46228-4:2020-03
- Insulated:
- No
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- None
- Surface protection:
- Tinned
- Material:
- Copper
- Colour code:
- CN (N/A)
- Halogen free:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- Yes
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes

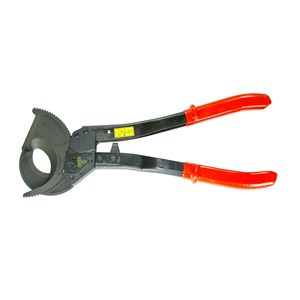

Cable cutter CC 22
Cable cutter with double jaws that cuts and stripps copper and aluminium cable.
Forged steel with polished / hardened jaws.
Available with multi color soft grip handle.
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- No
- Cutting jaws exchangeable:
- No
- With strip function:
- Yes
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic one hand
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No
Cord end-sleeves, CED-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: DIN
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- Black, Green, Grey, Yellow, Red, White, Blue
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CED/CTD (DIN)
- Halogen free:
- Yes
Cord end-sleeves, CEW-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: Old German color line
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- Black, Green, Grey, Orange, Yellow, Brown, Red, White, Blue, Beige, Ivory, Olive, Turquoise
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CEW/CTW (Old German colorline)
- Halogen free:
- Yes

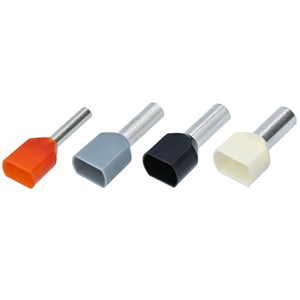

Twin end-sleeves, CTW-Series
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
Colour code: Old German color line
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Twin-sleeves
- Colour:
- Black, Green, Grey, Orange, Yellow, Red, White, Blue, Ivory
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CEW/CTW (Old German colorline)
- Halogen free:
- Yes
Twin end-sleeves, CTD-Series
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
Colour code: DIN
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Twin-sleeves
- Colour:
- Black, Grey, Yellow, Red, White, Blue
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CED/CTD (DIN)
- Halogen free:
- Yes
Crimp tool - XL-Series
Pressverktyg i flera utförande med pressbackar från NCXD/DHD/DRG-serien. Utrustad med ergonomiska handtag.
Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.
Välj mellan att köpa ram och själv kombinera vilka pressbackar som ska medfölja eller något av våra färdiga koncept.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes, No
- Number of included inserts:
- 0-1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves, Cable lugs and connectors, Screen connector, Various applications
- Construction/operation:
- Mechanical
- For component:
- Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated flagg terminal, Insulated terminals, Non-insulated terminals, roller compaction, Coaxial, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås
- Compression shape:
- Trapezoid compression, Hexagon, Arbour clamping, Oval pressing, Notching, Roll compression (shrinking)
Heat Shrink Butt DS-series
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyamid (PA) nylon with meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Surface protection:
- Tinned
- Material:
- Copper
- Voltage max:
- 600V
Fish tape in cassette, nylon, 20 m
A flexible fish tape, ideal for small conduits with tight turns. With its rounded head, the tape smoothly passes through joints and bends without getting stuck.
Comes with a replaceable head, extra heads for special applications are available in the DFA KIT.
Tensile strength: 1000N
Diameter: 4 mm
- Application range:
- Installation tube
- Head form:
- Ring
- Thread connection:
- Yes
- Twisted:
- No
- Material quality:
- Polyamide (PA)
- Shape:
- Round
- Material:
- Plastic

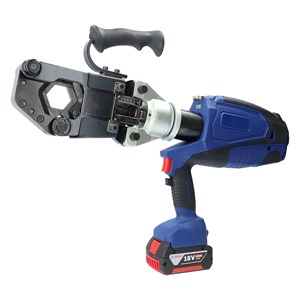

Multifunctional Battery Operated Tool: NGB2
Tool for efficiency and flexibility in a wide range of tasks. Our battery-powered tool is designed to be adaptable with various heads, allowing you to handle multiple work areas with a single device. Switch between different heads to perform tasks ranging from hexagonal crimping of cable lugs from 16-400 mm² Cu & 16-300 mm² Al with the HX400, to a powerful cable cutter that cuts up to 45 mm Cu and 40 mm ACSR with the CC40. For convenience, we sell both the machine and the heads separately as well as complete machines, enabling you to purchase according to your needs.
NGB2 Usage Areas:
HX400 - Seamless hexagonal crimping for cable lugs and splice connectors from 16-400 mm² Cu & 16-300 mm² Al.
CC40 - Cable cutter that cuts up to 45 mm Cu and 40 mm ACSR.
- Grip design:
- 2-components, Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 125 kN
- Suitable for:
- Cable lugs and connectors
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes, No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Construction/operation:
- Accumulator-hydraulic, Hydraulic cutter head
- Isolation protection 1000 V:
- No
- Compression shape:
- Hexagon
- VDE tested:
- No
RDOE (H07RN-F) - Drum
H07RN-F Connection cable of rubber for use in heavy equipment and farm machinery, where high mechanical stresses occur, in both dry and humid areas, both outdoors and in water.
Structure:
Conductors: Extra stranded copper according to IEC 60228 class 5
Conductor Insulation: EPDM rubber
Sheath Colour: Black
Technical data:
Rated voltage Uo / U:H07RN-F: 450/750V
Test voltage:H07RN-F: 2500V
Insulation Resistance: > 1 Gohma x cm
Core identification H07RN-F:
2-conductor: blue, brown
3-conductor: Green / yellow, blue, brown
4-conductor: Green / yellow, brown, black, gray
5-conductor: Green / yellow, blue, brown, black, gray
7-conductor: sv"1", sv"2", sv"3", sv"4", sv"5", sv"6", green/yellow
Temperature range: Flexible -25ºC to +60ºC (-13ºF to +140ºF)
Minimum bend radius: Flexible 6 x cable diameter
- Number of cores:
- 2-7 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - ethylene propylene rubber (EPR)
- Core identification:
- Colour
- Protective conductor:
- Yes
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Rubber - chlorinated/chlorosulfonated polyethylene (CPE/CSP)
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-60 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 60 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 55-87.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX-CY (EMC) - 100m
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned braided copper wire, which protects against mechanical loads and in particular all shields electrical freqvencly as well inside and outside the cable (EMC Directive).
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems.
Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Inner Sheath: PVC
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath Colour: Transparent
Technical data:
Rating voltage: 300/500 V
Test voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range: Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Approvals: Meets Swedish and European standards asSS EN 60204
- Number of cores:
- 3-25 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Transparent
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 31.6-66.4 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
KRT - Cable lugs angled -90º
"Copper tube lugs for stranded (class 5) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs palm can for ie be: n35-12T
n = nemiq // 35 = 35 wire // 12 = M12 stud size. // T = KRT, F = KRF, D= KRD
Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (OD).
When crimping with hexagon dies neck inscription and die markings must conform."
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 66-395 A
- Number of mounting holes:
- 1 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- Yes
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 90°
- Series:
- KRT/KST(10-500mm2)
- Model:
- Double-sided
- Transparent:
- No
- Type of fastening:
- Other
- Colour:
- Black
- Material:
- Polyamide (PA)
- Halogen free:
- Yes
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Number of mounting holes:
- 0-1 .
- Code digit:
- 13-60 .
- According to DIN:
- No
- Sleeve form:
- Long
- Cross section form:
- Round
- Suitable for Al/St-cables:
- No
- Longitudinal sealed:
- Yes
- Max Temp:
- 150 °C
- Colour:
- Other
- Surface protection:
- Untreated
- Material:
- Aluminium/copper
Stegmatade
CC 325 / CC 520
Cable cutter for copper and aluminium cable.
Cutting capacity:CC 325: 32 mm / 240 mm²CC 520: 52 mm / 380 mm²
Length: 270 mm / 450 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Ratchet model mechanical
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No
Toppskarvar, crimp
N-series
Fully insulated closed-end connectors
Material: Copper
Insulation: Nylon (PA)
Temperature range: -40° C - +105° C (-40º F - +221º F)
- Model:
- Bushing
- Insulation:
- Fully isolated
- Colour insulation:
- Other
- Colour:
- White
- Material insulation:
- Polyamide (PA)
- Material:
- Copper
- Connector type:
- Toppskarv, pressbar
- UL-File No.:
- E42024
