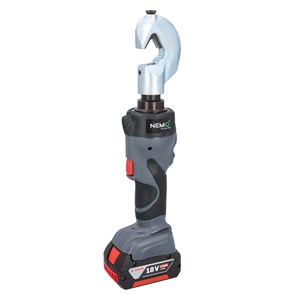

Battery-Powered Crimp Tool - NMBT IC
A Battery Crimp tool that works reliably on copper cable lugs. Cable lugs and joint sleeves are pressed in the same outlet from 10-95 mm² CU. The tool is equipped with a battery indicator and the head is rotatable 180°. Comes with a Bosch battery and a battery charger in a durable plastic case.
Type of crimp: Indent crimp
Min value: 10 mm²
Max value: 95 mm²
Battery: Bosch 18 VDC, 4.0 Ah Li-Ion
Pressure: 26.5 kN, 2.7 ton
Weight: 2 kg (including battery)
Dimension case (LxWxH): 560 x 160 x 400 mm
Crimps performed with this tool complies with IEC 61238-1.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Compression force:
- 26.5 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping

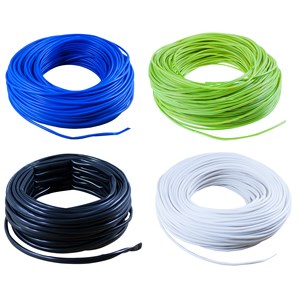

PVC isolation tube
Tubing used for insulation and bundling of cables.
Is available in a variety of colors making it suitable also for identification.
Halogen free: Nej
- Sheathing material:
- Not sheathed
- Heat-resistant:
- No
- Stretch sleeve:
- No
- Material filament:
- Without coil
- Plain interior:
- Yes
- Plain exterior:
- Yes
- Flexibility:
- Very flexible
- Colour:
- Black, Green/yellow, White, Blue, Transparent
- Material:
- Polyvinyl chloride (PVC)
- Halogen free:
- No
- Approved according to N:
- No
- Approved according to DIN EN 61386-23:
- No
- Approved according to UR:
- No
- Approved according to CSA:
- No
RQ (H05Z-K, H07Z-K) - Ring
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: Halogen free polymer blends
Core identification: The table below
Technical data:
Rated voltage:
H05Z-K 0.5-1.0 mm²: 300/500
VH07Z-K 1.5-120 mm²: 450/750 V
Test voltage:
H05Z-K 0.5-1.0 mm²: 2000
VH07Z-K 1.5-120 mm²: 2500 V
Max operating temperature +70ºC (+158ºF) H05Z-K
Max operating temperature +90ºC (+194ºF) H07Z-K
Can handle a short operating temperature of +250ºC (+482ºF)
Minimum bend radius: 4 x cable diameter
Packaging
Plastic coil: RQ 10.0-50.0 mm²
Box: RQ 0.5-6.0 mm²
Drum: 500 m 95.0 mm²
- Number of cores:
- 1 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Grey, Red, Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -15-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 90 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Grey, Green/yellow, Brown, Red, Light blue
- Material insulation:
- Polymen
- Core colour:
- Blue, Brown, Grey, Green/yellow, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Packaging:
- Ring, Carton (box)
- Min. permitted bending radius, stationary application/permanent installation:
- 25.04-63.44 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RQ (H05Z-K, H07Z-K) - Box
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: Halogen free polymer blends
Core identification: The table below
Technical data:
Rated voltage:
H05Z-K 0.5-1.0 mm²: 300/500
VH07Z-K 1.5-120 mm²: 450/750 V
Test voltage:
H05Z-K 0.5-1.0 mm²: 2000
VH07Z-K 1.5-120 mm²: 2500 V
Max operating temperature +70ºC (+158ºF) H05Z-K
Max operating temperature +90ºC (+194ºF) H07Z-K
Can handle a short operating temperature of +250ºC (+482ºF)
Minimum bend radius: 4 x cable diameter
Packaging
Box: RQ 0.5-6.0 mm²
- Number of cores:
- 1 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -15-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70-90 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300-600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue, Pink, Purple, Light blue, Dark blue
- Material insulation:
- Polymen
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Pink, Red, Black, White
- Conductor surface:
- Bare, Tinned
- Halogen free:
- Yes
- Packaging:
- Carton (box)
- Min. permitted bending radius, stationary application/permanent installation:
- 10.4-19 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RKUB Single conductor
GeneralConnection cable for vehicle applications. ISO 6722, class A
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B4: 160mm x 56mm x 90mm
Spool B5: 200mm x 56mm x 88mm
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper, IEC 60228,5
Conductor insulation: PVC, EN 50363,3
Flame retardant: IEC 60332-1-2
Core identification: According to table below
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue, Pink, Purple, Black/white, Red/black, Blue/Black, Grey/Red, Grey/Black, Green/Black, Yellow/Red
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Pink, Red, Black, Black and white, White, Several
- Conductor surface:
- Bare
- Packaging:
- Ring, Reel B3, Reel B4
- Min. permitted bending radius, stationary application/permanent installation:
- 6.8-47.6 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RQ (H05Z-K, H07Z-K) - Drum
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: Halogen free polymer blends
Core identification: The table below
Technical data:
Rated voltage:
H05Z-K 0.5-1.0 mm²: 300/500
VH07Z-K 1.5-120 mm²: 450/750 V
Test voltage:
H05Z-K 0.5-1.0 mm²: 2000
VH07Z-K 1.5-120 mm²: 2500 V
Max operating temperature +70ºC (+158ºF) H05Z-K
Max operating temperature +90ºC (+194ºF) H07Z-K
Can handle a short operating temperature of +250ºC (+482ºF)
Minimum bend radius: 4 x cable diameter
Packaging
Drum: 500 m 95.0 mm²
- Number of cores:
- 1 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -15-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 90 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black
- Material insulation:
- Polymen
- Core colour:
- Black
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Packaging:
- Drum
- Min. permitted bending radius, stationary application/permanent installation:
- 36.76-63.44 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

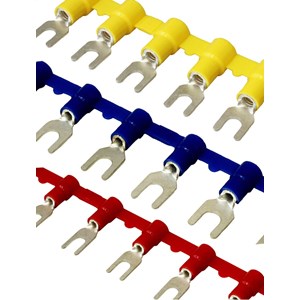

- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19-27 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245

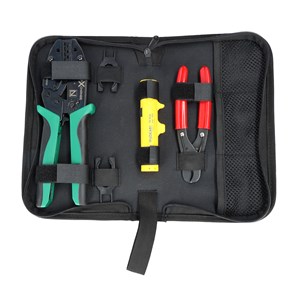

Installation Kit – Solar Panel Connectors
Tool kit equipped with tools for installing MC4 / MC3 connectors.
The kit includes:
NCX MC4 / NCX MC3 / NCX SOLAR – Crimping tool for solar panel connectors. This high-quality ratchet crimping tool ensures proper crimping. It comes with the NCXD MC4 / NCXD MC3 dies, and has storage in the handle for up to 2 extra pairs of NCXD type dies. NCX SOLAR is equipped with both NCXD MC4 and NCXD MC3 dies.
CC 08 – Cable cutter with a single jaw for multi-stranded copper cable. Equipped with a return spring.
MC4 RT – Assembly and unlocking tool for MC4 connectors (not included in NCX MC3-SET).
PV Strip 2.5-6 – Stripping tool for solar panel cable from 2.5 mm² up to 6 mm². Integrated length stoppers at 8.5 and 15 mm, designed for common PV connectors.
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1-2 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Ratchet model mechanical
- Compression shape:
- Square compression, Roll compression (shrinking), Universal (exchangeable inserts)

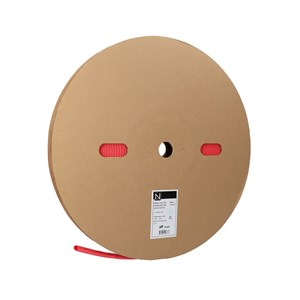

NHSA, 3:1, with adhesive, reel
NHSA är en flexibel tunnväggig krympslang av polyolefin med invändig beläggning av lim.
Användningsområden: Idealisk för inkapsling, skydd och fukttätning av elektriska komponenter, förgreningar och förstärkning av kabelmantlar.
Material: Polyolefin med smältlim
Färg: Röd
Arbetstemperatur: -45° C till +125° C
Lägsta krymptemperatur: +70° C, Lägsta temperatur för maximal krympning: +125° C
Väggtjocklek: Tunnväggig med smältlim
Krympgrad: 3:1
- Model:
- Thin-walled
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 3:1
- With inner glue:
- No
- Printable:
- No
- Colour:
- Red
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- UL approval:
- No
Plastbuntband med metallinnehåll - DCT-serien
Buntband med inblandning av metallpigment gör det möjligt att även små bitar från bandet kan detekteras av en metalldetektor eller röntgenutrustning. Det metallinnehållande buntbandet är speciellt utvecklat för användning inom livsmedels och läkemedelsindustrin.
Material buntband: Polyamid 6 med metallpigment
- Detectable:
- Yes
- Min. tensile strength:
- 80-540 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Blue
- Surface protection:
- Untreated
- Material:
- Plastic with metal pigments
- Max. tensile force:
- 80-540 N
- Inflammability class of insulation material according to with UL94:
- Other
- MIL approval:
- No
- VG approval:
- No
- UL approval:
- No
- Approved according to CE:
- No
- With approval according to UL:
- No
- Approved according to DNV:
- No

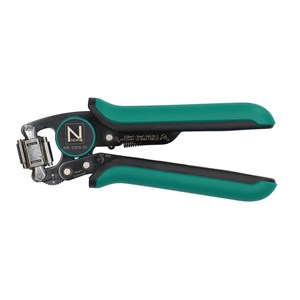

Crimp tool NAE 00816 SQ
Pressverktyg med 360° roterbart presshuvud, stegvis justering med 45° låsläge. För ändhylsor med eller utan isoleringskrage från 0.08-16 mm² / AWG 28-5 och tvillinghylsor från 2 x 0.25-10 mm² / AWG 23-8.
En ratchettång som säkerställer att pressningen fullföljs.
Pressning enligt DIN 46228, EN 50027
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Square compression

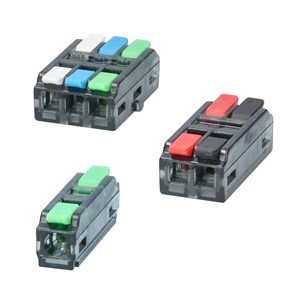

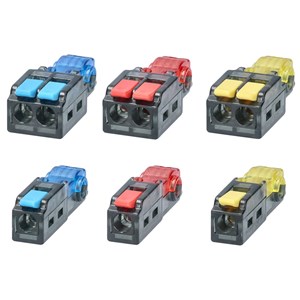

Lighting connector, with lever
Lighting connector for both solid and stranded cable.
No tool needed.
Stripping length: 11 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: PC (Polycarbonate)
Spring: Stainless steel
- Nominal voltage:
- 600 V
- Nominal current:
- 32 A
- Transparent:
- No
- Number of clamp positions:
- 4-10 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Multi-coloured
Crimping tool - NMC mini
Press tool suitable for work in tight spaces and for installers with small hands. Available in multiple versions equipped with 1 set of dies.
The press tool is a ratchet pliers that ensures the completion of the pressing. The return lock has a release hook in case you want to terminate the pressing.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves, Cable lugs and connectors
- Construction/operation:
- Mechanical
- Compression shape:
- Trapezoid compression, Arbour clamping, Oval pressing, Roll compression (shrinking)
Bolt-on
MEGA M
Maximal spänning: 70 V DC
Uppfyller ISO 20934 o
Tröga säkringa, förtent
Hålstorlek: M8
Maximalt vridmoment 12Nm ± 1 Nm
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- No
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Pink, Red, Other, Orange, White
- Nominal voltage DC:
- 70 V
- Max. continuous voltage DC:
- 70 V
- Nominal current:
- 80-500 A
RK (H05V-K, H07V-K)
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:
HO5V-K 0.5-1.0 mm²: 300/500
VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:
HO5V-K 0.5-1.0 mm²: 2000
VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300-600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue, Pink, Purple, Light blue, Dark blue
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H05V-K (RK 0.5-1.0mm2), H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Pink, Red, Black, White
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring, Carton (box)
- Min. permitted bending radius, stationary application/permanent installation:
- 12.4-18.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RK Drum
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:
HO5V-K 0.5-1.0 mm²: 300/500
VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:
HO5V-K 0.5-1.0 mm²: 2000
VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey, Red, Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Grey, Green/yellow, Red
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Grey, Green/yellow, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Drum
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6-60.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
ST2, släta stålbuntband med låskula - SS316
Self-locking stainless steel cable ties for use in or outside. The strong locking mechanism includes a steel ball and it is easy to enter the back end that is dawning. This givesa simple, fast and safe installation.Properties cable ties without coating:Material: Stainless steel type 316Temperature range: -80 degrees Celsius - +500 degrees Celsius (-112º F - +932º F)Colour: Metal
- Detectable:
- No
- Min. tensile strength:
- 667-1335 N
- Model:
- Without toothing
- Material quality:
- Stainless steel 316 (V4A)
- Mounting temperature:
- -80-538 °C
- Band closure:
- Ball latch
- UV-stable acc. ASTM D6779:
- Yes
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Stainless steel
- Surface protection:
- Untreated
- Material:
- Metal
- Halogen free:
- Yes
- Max. tensile force:
- 667-1335 N
- Inflammability class of insulation material according to with UL94:
- Other
- MIL approval:
- No
- VG approval:
- No

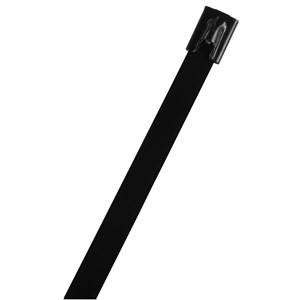

ST2, släta stålbuntband med låskula, med beläggning
Self-locking stainless steel cable ties for use in or outside. The strong locking mechanism includes a steel ball and it is easy to enter the back end that is dawning. This givesa simple, fast and safe installation.Properties coated cable ties: Material: Stainless steel type 316Temperature range: -40ºC - +150ºC Colour: Black
- Detectable:
- No
- Min. tensile strength:
- 465-1200 N
- Model:
- Without toothing
- Material quality:
- Stainless steel 316 (V4A)
- Mounting temperature:
- -80-150 °C
- Band closure:
- Ball latch
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black
- Surface protection:
- Plastic-coated
- Material:
- Metal
- Halogen free:
- Yes
- Max. tensile force:
- 465-1200 N
- Inflammability class of insulation material according to with UL94:
- Other
- MIL approval:
- No
- VG approval:
- No
RK (H05V-K, H07V-K)
Used as connectors line and installation line.
StructureConductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:HO5V-K 0.5-1.0 mm²: 300/500 VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:HO5V-K 0.5-1.0 mm²: 2000 VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Grey, Red, Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Grey, Green/yellow, Red, Light blue, Dark blue
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Blue, Grey, Green/yellow, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6-60.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Splicing connectors for tap wires
Splicing connector for 1 or 2 tap wires from a run through cable. The run through cable is connected with Insulation Displacement Connection (IDC).
A quick connection can made on mid-span of a wire without cutting and stripping. A good solution when space is limited or if the cable is so short it could be difficult to connect to connector again after cut and stripped.
Tap wires are connected with lever.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 10 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 24 A
- Transparent:
- Yes
- Number of clamp positions:
- 1-2 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Red, Blue
Terminal block with lever, 1-3 Poles
Terminal block for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 12 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 2-6 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Green
- Connector type:
- Spliceing connector
Svetskabel - Dubbelisolerad, bobin
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packaging (YD x Hub x Width):
Drum B5: 200mm x 56mm x 88mm
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheth color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x cable diameter
Approvals:
IEC 60228-6 IEC 60332-1
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Orange, Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Orange, Red
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Orange, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2-90 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

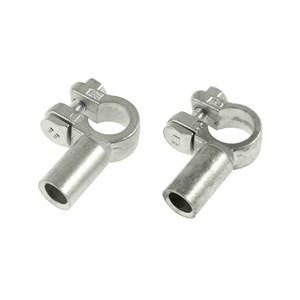

Angled Battery terminal, crimping
BTCx-serien Batterikabelsko i förtent mässing.
Högervinklade (från kabeln sett):
BTCR 25 M TP (-) / BTCR 25 P TP (+): 25 mm²
Pressas med pressback: NH 10-12 / Backmärkning: 12
BTCR 35 M TP (-) / BTCR 35 M TP (+): 35 mm²
Pressas med pressback: AHE 5070 / Backmärkning: CU50/AL35
BTCR 50 M TP (-): 50 mm²
Pressas med pressback: AHE 5070 / Backmärkning: CU70/AL50
BTCR 70 M TP (-) / BTCR 70 P TP (+): 70 mm²
Pressas med pressback: AHE 95120 / Backmärkning: CU95/AL70
Vänstervinklade (från kabeln sett):
BTCL 25 M TP (-) / BTCL 25 P TP (+): 25 mm²
Pressas med pressback: NH 10-12 / Backmärkning: 12
BTCL 35 M TP (-) / BTCL 35 P TP (+): 35 mm²
Pressas med pressback: AHE 5070 / Backmärkning: CU50/AL35
BTCL 70 M TP (-) / BTCL 70 P TP (+): 70 mm²
Pressas med pressback: AHE 95120 / Backmärkning: CU95/AL70
- Type of accessory/spare part:
- Battery terminal
- Insulated:
- No
- Surface protection:
- Tinned
- Cable connection type:
- Kontaktpressning
- Connection around pole:
- Skruvförband
- Accessory:
- Yes
- Spare part:
- No
