NELCON (CGPT), 2:1, without adhesive, die-cut
Nelcon is a strong, flexible, heat shrink tubing for universally use. Nelcon has good resistance to fluids and solvents, and good dielectric strength.
Shrink ratio at 2:1 and 3:1, and the tubes unique combination of chemical, electrical and physical properties it is suitable for a variety of uses.
Applications:
Electrical insulation, strain relief, bundling, mechanical protection, colour coding of wires, cables, tubes and electronic components.
Material: Polyolefin
Temperature range: -40º C to +135º C
Lowest shrink temperature: +120º C
Wall thickness: Thin wall
Shrink ratio: 2:1
Self-extinguishing: Yes
- Model:
- Thin-walled
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- With inner glue:
- No
- Printable:
- No
- Colour:
- Black, White
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
DINFLEX 67
Anslutningskabel för data- och elektronikutrustning inomhus. Försedd med gemensam skärm av aluminiumfolie.
Uppbyggnad
Ledare: Blank flertrådig koppar
Ledarisolation: Polyeten
Ledarfärg: Enligt DIN 47100
Bandering: PETP-folie
Skärm: Gemensam skärm av aluminiumfolie. Bitråd av koppar
Yttermantel: PVC
Mantelfärg: Grå
Tekniska data:
Märkspänning: 250 V
Ledarresistans: 98 Ohm/km
Parkapacitans: 50 Pf/km
Temperaturområde: -5ºC till +80ºC
- Number of cores:
- 4-50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-80 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 80 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Other
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 250 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 22.5-85.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Model:
- Bushing
- Max. current (Imax):
- 10-15 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Material:
- Brass
- Neck type:
- Open barrel crimp
DINFLEX-CY (LiYCY)
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned copper wire, which protects against mechanical stress and particular it isolates all electrical frequency as well inside and outside the cable (EMC Directive). It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath identification: Grey PETP-foil
Technical data:
Rating voltage: 0.14 mm² = 350 V > 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V > 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
- Number of cores:
- 2-50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 18.5-64 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Crimp dies - CS30 series
CS30 dies suitable for WDT UP 14, UP 35 & CS 300 as well as Nemiq CrimpXchange Pro hand tool.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Insulated tube cable lug and connector, Cable compression lugs and connectors, Cable end sleeves
- Compression shape:
- Trapezoid compression, Arbour clamping, Oval pressing, Roll compression (shrinking)
Automatic strip and crimp machine for ferrules
Automatic strip and crimp machine for insulated end sleeves 0.5-4 mm².
Stripping and crimping are carried out in a single step, which enables efficient and time-saving processing.
Technical data
Operation mode: Automatic trigger operation and manual operation
Twisting function: Yes
Wire size: 0.5-4 mm²
Stripping lenght: 3-17 mm
Max tube leght: 12 mm
Crimp shape: Quadrilateral crimp
Production capacity: 2.8 s/wire
Air Supply: 6-8 Bar
Power source: 220-240V AC/50HZ
Weight: 40 kg
Dimensions WxLxH: 350 x 450 x 400 mm
- Number of crimps:
- 1
- Strip length adjustable:
- Yes
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2.8 s
- Suitable for:
- Cable end sleeves
- Adjustable conductor cross section:
- 0.5-4 mm²
- Function:
- Skin and crimp
- Type of drive:
- Electrical
- Strip length:
- 3-17 mm
- Construction/operation:
- Pneumatic
- Compression shape:
- Square compression

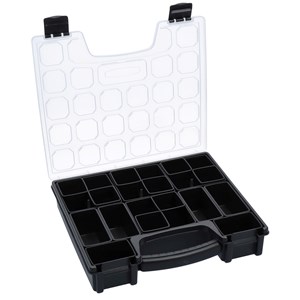

Sortimentlåda TL10 med löstagbara avdelare
Sortimentlåda som med hjälp av mellanväggar(ingår) kan byggas från 4-10 fack.
Mått: 150 x 190 x 42 mm
Sortimentlåda TL20 med löstagbara avdelare
Sortimentlåda som med hjälp av mellanväggar(ingår) kan byggas från 5-20 fack.
Mått: 210 x 255 x 42 mm

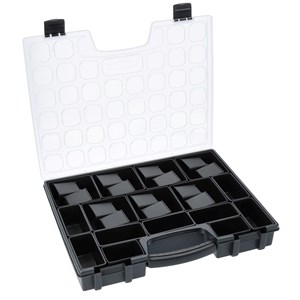

Sortimentlåda TL26 med lösa insatser
Sortimentlåda bestyckade med lösa insatser som kan variera från 8-26 fack.
I lådan så ingår följande insatser:
TLI1: 8st
TLI1.5: 2st
TLI2: 4st
TLI4: 4st
Mått: 280 x 315 x 60 mm
DINFLEX-Y (LiYY) - Drum 500 m
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Outer Sheath: PVC
Sheath identification: Grey
Technical data:
Rating voltage: 0.14 mm² = 350 V >; 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V >; 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (-22ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
- Number of cores:
- 2-37 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 16-56.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
DEF-Y (Defense)
Flexible signal cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Tinned copper
Conductor insulation: PVC
Core identification: According def 61-12.
Outer sheath: PVC
Sheath colour: Grey
Technical data:
Rating voltage: 300 V
Test voltage: 1000 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Minimum bending radius: 15 x cable diameter
Oil resistance: Good
Flame resistance: IEC 228
- Number of cores:
- 2-25 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey, White
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Tinned
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 17-44.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
DEF-CY (Defense)
Flexible signal cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned copper wire, which protects against mechanical stress and particular it isolates all electrical frequency as well inside and outside the cable (EMC Directive).
It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Tinned copper
Conductor insulation: PVC
Core identification: Acc. to def 61-12.
Screen: Tinned copper braid
Outer sheath: PVC
Sheath colour: Grey
Technical data:
Rating voltage: 300 V
Test voltage: 1000 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Minimum bending radius: 15 x cable diameter
Oil resistance: Good
Flame resistance: IEC 228
- Number of cores:
- 2-36 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey, White
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Tinned
- Halogen free:
- Yes, No
- Min. permitted bending radius, stationary application/permanent installation:
- 19-60.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Electro-hydaulic HEX-crimp equipment for 10-240 mm²
The NTHC HX240 is a hexagonal crimp machine that operates without the need for die changes on copper and aluminum cable lugs. The machine utilizes the same dies for cable lugs and splice sleeves, covering a range from 10-240 mm² Cu to 16-150 mm² Al.
The crimping is performed by six sides smoothly sliding against each other from opposite directions, eliminating the risk of protrusions after the crimp. The stepless height adjustment allows for versatile use with various copper and aluminum cable lugs, regardless of the manufacturer.
The NTHC HX240 comes with pre-programmed series for different cable lugs, providing the operator with the ability to save additional settings as needed. Its die-less design saves the user from costly investments and the risk of misplacing die sets.
Technical Specifications:
Press Force: 200 kN
Capacity: 10-240 mm² Cu / 16-150 mm² Al
Max Width: 38 mm
Applicator Width: 8 mm
Power Source: 220 V 50 Hz
Weight: 160 kg
Dimensions: 700 x 860 x 1260 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Compression force:
- 200 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Electrical
- Compression shape:
- Hexagon
- Connection type:
- Other
- Rated current:
- 30-40 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
KRT - Cable lugs with two stud holes - 10-500mm²
"2-holed copper tube lugs, KRT.
Copper tube lugs for stranded (class 5) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs palm can for ie be: n35-12T
n = nemiq // 35 = 35 wire // 12 = M12 stud size. // T = KRT, F = KRF, D = KRD
Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (OD).
When crimping with hexagon dies neck inscription and die markings must conform."
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 97-227 A
- Number of mounting holes:
- 2 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- Yes
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 180° (horizontal)
- Series:
- KRT/KST(10-500mm2)
Earthing braids
Economical and efficient protection of electrical equipment.Used for enclosure doors, motors, machine structures and control panels.Can handle temperature changes, shock, vibration and moving of components
Made of high conductivity tin-plated copper.Pressed ferrule ends for mechanical strength and reliability.
- Conductor material:
- Copper
- Shape of conductor:
- Flat
- Insulated:
- No
- Conductor category:
- Class 6 = very flexible
- Braided:
- Yes
- With connecting lugs:
- No
- Connection lugs drilled:
- Yes
- With cable lugs:
- No
Assortmentbox TL44 with loose containers
Assortment box with loose containers for 15-44 compartments.
Comes with:
TLI1: 14 pcs
TLI1.5: 2 pcs
TLI2: 7 pcs
TLI4: 7 pcs
Measures: 325 x 415 x 60 mm
WDT - Crimp dies
Pressbackar till WDT:s handverktyg samt maskiner.(till visa maskiner behövs adaptrar för att hålla backen).
Pressbackar till handverktyg 190942 eller maskin UP 35 & UP 60 med adapter.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Insulated tube cable lug and connector, Cable compression lugs and connectors, Cable end sleeves
- Compression shape:
- Trapezoid compression, Hexagon, Arbour clamping, Square compression, Oval pressing, Roll compression (shrinking)
KSB, 2:1, without adhesive, box
Användningsområden:
Elektrisk isolering, dragavlastning, ledningsbuntning, mekaniskt skydd, färgmärkning av ledningar, kablar och rör samt elektroniska komponenter.
Material: Polyolefin
Arbetstemperatur: -40º C till +125º C
Lägsta krymptemperatur: +120º C
Väggtjocklek: Tunnväggig
Krympgrad: 2:1
Självslocknande: Ja
Färgkod: Svart är standard.
2 = röd, 4 = gul, 5 = grön, 6 = blå, 9 = vit, E = grön/gul, X = klar
- Model:
- Thin-walled
- Transparent:
- Yes, No
- Type:
- Heat-shrink
- Shrink rate:
- 2:1
- With inner glue:
- No
- Printable:
- No
- Colour:
- Black, Green, Yellow, Green/yellow, Red, White, Blue, Colourless
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- UL approval:
- No
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes

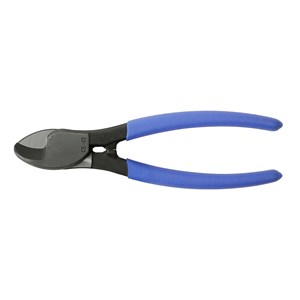

Cable cutter CE 22 & MEC 22
Cable cutter with single jaws that cuts and stripps copper and aluminium cable.
Forged steel with polished / hardened jaws.
Available with soft-grip handle in different colors and ergonomic grip in plastic.
Cutting capacity.
Max YD: 13mm
Stranded cable: 50 mm²
Solid Cable: 25 mm
Length: 162 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- No
- Cutting jaws exchangeable:
- No
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic one hand
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No

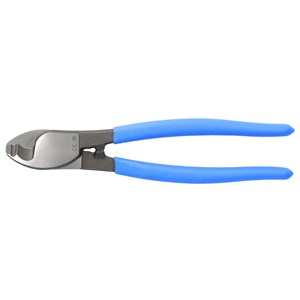

Cable cutter CC 38
Cable cutter with double jaws that cuts and stripps copper and aluminium cable.
Forged steel with polished / hardened jaws.
Available with multi color soft grip handle.
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- No
- Cutting jaws exchangeable:
- No
- With strip function:
- Yes
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic one hand
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- UL-File No.:
- E78965, E44245
