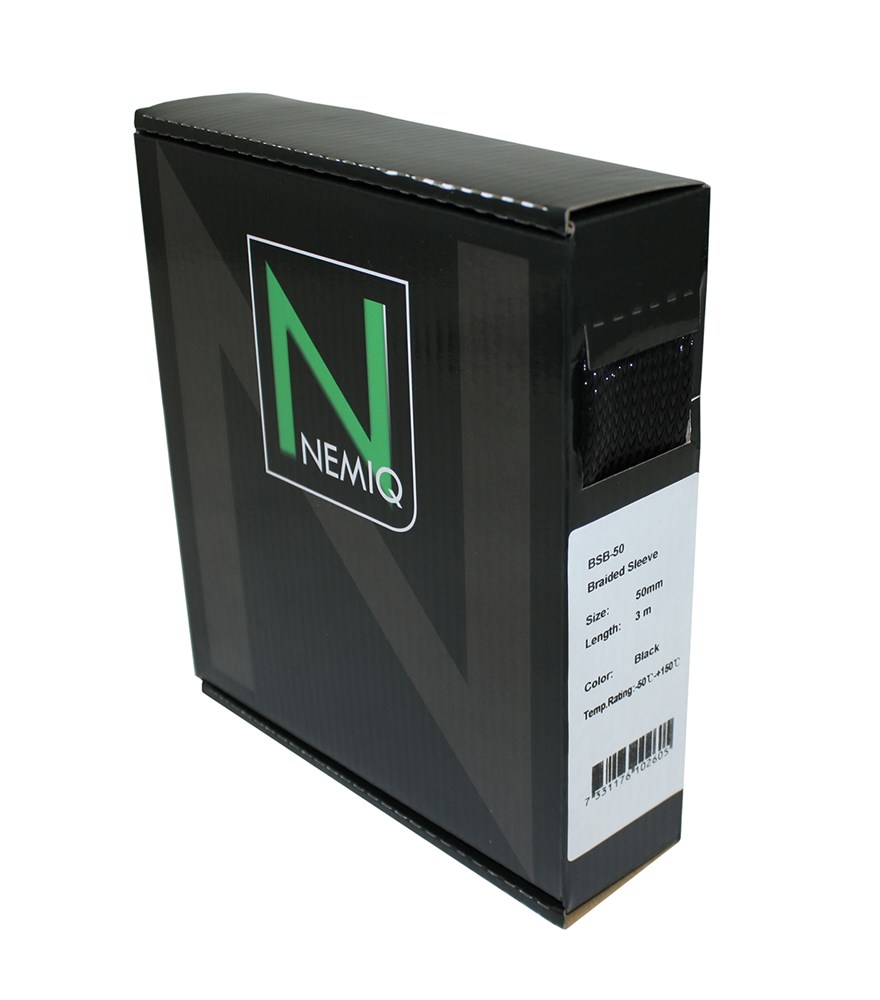

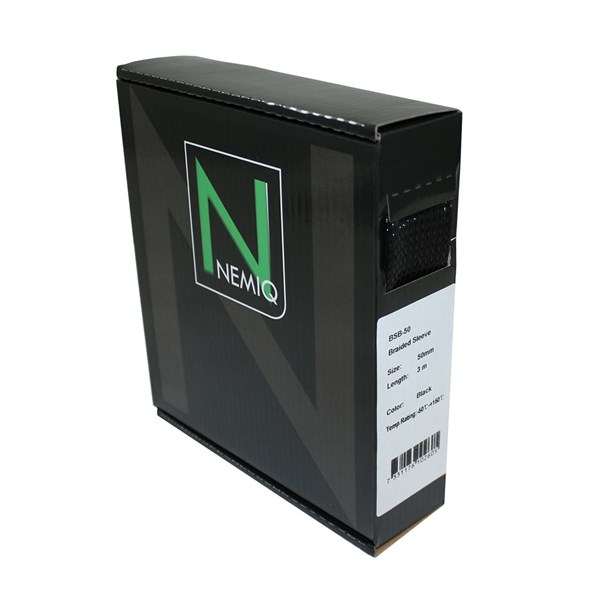

BSB, Braided sleeve in polyester
The braided sleeving protects and bundles cables.If the sleeve is pressed together, the diameter expands and facilitates the entry of the cables. When wires are drawn through, pull out the sock lengthwise to get it to shrink around the wires.
Material: PolyesterTemperature range: -50 degrees Celsius to +150 degrees Celsius Flammability rating: UL 94 V-2 Colour: Black
Technical properties
- Material quality:
- Polyester
- Temperature:
- -50-150 °C
- Open (mountable afterwards):
- No
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | Nominal diameter | Bundle diameter | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|
| BRAIDED SLEEVING, BLACK MINI-BOX, 50-60 mm, 3 m | 50 mm | 50-60 mm | 1 . | pck |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 5-10 mm, 10 m | 5 mm | 5-10 mm | 1 . | pck |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 10-15 mm, 10 m | 10 mm | 10-15 mm | 1 . | pck |
No
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 15-22 mm, 10 m | 15 mm | 15-22 mm | 1 . | pck |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 20-28 mm, 5 m | 20 mm | 20-28 mm | 1 . | pck |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 25-34 mm, 5 m | 25 mm | 25-34 mm | 1 . | pck |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 30-37 mm, 5 m | 30 mm | 30-37 mm | 1 . | pck |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Approved according to UR | Approved according to NF F 16-101 | Availability | ||
|---|---|---|---|---|---|
| BRAIDED SLEEVING, BLACK MINI-BOX, 50-60 mm, 3 m |
|
No |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 5-10 mm, 10 m |
|
No |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 10-15 mm, 10 m |
|
No |
No
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 15-22 mm, 10 m |
|
No |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 20-28 mm, 5 m |
|
No |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 25-34 mm, 5 m |
|
No |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 30-37 mm, 5 m |
|
No |
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Material quality | Temperature | Open (mountable afterwards) | Colour | Surface protection | Material | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| BRAIDED SLEEVING, BLACK MINI-BOX, 50-60 mm, 3 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 5-10 mm, 10 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 10-15 mm, 10 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
No
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 15-22 mm, 10 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 20-28 mm, 5 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 25-34 mm, 5 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 30-37 mm, 5 m | Polyester | -50-150 °C | No | Black | Untreated | Plastic | Yes |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED SLEEVING, BLACK MINI-BOX, 50-60 mm, 3 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-50 |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 5-10 mm, 10 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-05 |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 10-15 mm, 10 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-10 |
No
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 15-22 mm, 10 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-15 |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 20-28 mm, 5 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-20 |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 25-34 mm, 5 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-25 |
Yes
|
|
|
| BRAIDED SLEEVING, BLACK MINI-BOX, 30-37 mm, 5 m | EC001182 - Braided hose | 9.0 |
|
Sleeving | ENR2023V | BSB-30 |
Yes
|
|
|
- Total: 7
