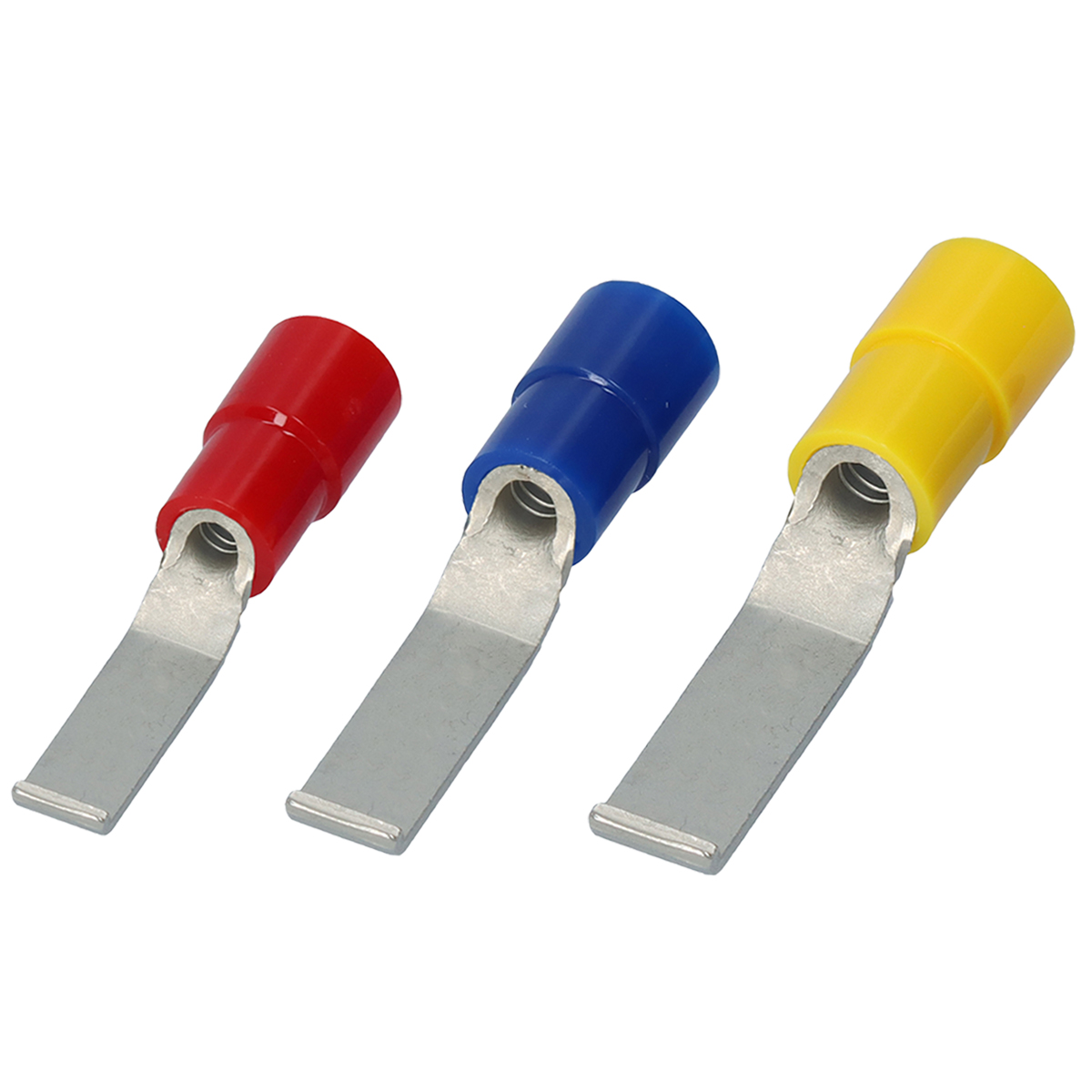

Blade terminals PB-series SFB
Bladstiftskabelskor
PB-serien SFB
Material: Förtent koppar
Isolering: Polykarbonat (PC)
Svetsad hals
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED BLADE TERMINAL RED, 16.8x3mm | 100 . | pcs | 0.5-1.65 mm² |
No
|
|
|
| INSULATED BLADE TERMINAL BLUE, 16.8x3mm | 100 . | pcs | 1.04-2.63 mm² |
No
|
|
|
| INSULATED BLADE TERMINAL YELLOW, 16.8x4.6mm | 100 . | pcs | 2.63-6.64 mm² |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED BLADE TERMINAL RED, 16.8x3mm | E44245 |
|
|
|
No
|
|
|
| INSULATED BLADE TERMINAL BLUE, 16.8x3mm | E44245 |
|
|
|
No
|
|
|
| INSULATED BLADE TERMINAL YELLOW, 16.8x4.6mm | E44245 |
|
|
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Material | Voltage max | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BLADE TERMINAL RED, 16.8x3mm | Yes | Yes | No | 19 A | Pin shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
No
|
|
|
| INSULATED BLADE TERMINAL BLUE, 16.8x3mm | Yes | Yes | No | 27 A | Pin shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
No
|
|
|
| INSULATED BLADE TERMINAL YELLOW, 16.8x4.6mm | Yes | Yes | No | 48 A | Pin shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED BLADE TERMINAL RED, 16.8x3mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Blade Terminals - Polycarbonate | NICHIFU, TMEX BT-1.25-17 | PB1530SFB-3 |
No
|
|
|
| INSULATED BLADE TERMINAL BLUE, 16.8x3mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Blade Terminals - Polycarbonate | NICHIFU, TMEX BT-2-17 | PB2530SFB-3 |
No
|
|
|
| INSULATED BLADE TERMINAL YELLOW, 16.8x4.6mm | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Blade Terminals - Polycarbonate | NICHIFU, TMEX BT-5.5-17-1 | PB4645SFB |
No
|
|
|
- Total: 3
