R3 - Box


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Pink, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-125 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
125 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Core colour:
Pink, Black and white, Several
Conductor surface:
Bare
Min. permitted bending radius, stationary application/permanent installation:
5.85-6.6 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (5)

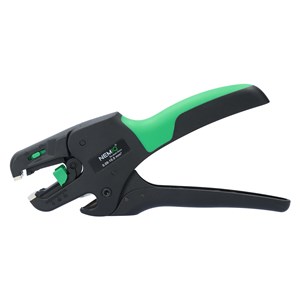

Stripping tool – NCS 00810


NEMIQ
Depth of notch adjustable:
Yes
Longitudinal section:
No
Round edge:
No
Spiral cut:
No
Strip length adjustable:
Yes
With wire cutter:
Yes
Grip design:
2-components
ESD tested:
No
Insulated:
Yes
Isolation protection 1000 V:
No
VDE tested:
No
.
Show filter/search products (1)

Tool set specially designed for electricians


NEMIQ
With locking device (for mechanical tools):
Yes
Inserts exchangeable:
Yes
Number of included inserts:
3 .
With automatic return:
Yes
Cycle time:
2 s
Suitable for:
Various applications
Construction/operation:
Mechanical
Compression shape:
Universal (exchangeable inserts)
.
Show filter/search products (2)

Pin terminals N PLD-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Pin shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Long
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
Halogen free:
Yes
V2
Yes
Yes
.
Show filter/search products (3)

Butt splices A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
UL model
Max. current (Imax):
19-48 A
Number of branches:
0 N/A
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
For pull protected connections:
No
Voltage level:
Up to 600 V
Type of connection:
Other
Oil stop/centre bar:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (3)

Bullet female terminals A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Bushing
Max. current (Imax):
10-24 A
Insulation:
Fully isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Brass
Voltage max:
300V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (4)

Bullet male terminals A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Plug
Max. current (Imax):
10-24 A
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Brass
Voltage max:
300V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (4)

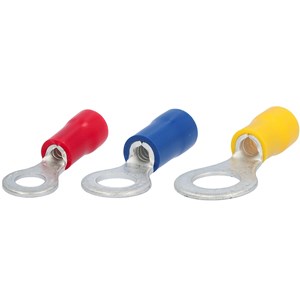

Ring terminals A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (25)

Ring terminals AT PL-series (DIN)


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
Yes
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (8)

Ring terminals NT PL-series (DIN)


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
Yes
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
Halogen free:
Yes
V2
Yes
Yes
.
Show filter/search products (19)

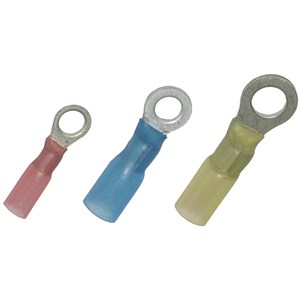

Ring terminals N PLD-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Long
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
Halogen free:
Yes
V2
Yes
Yes
.
Show filter/search products (22)

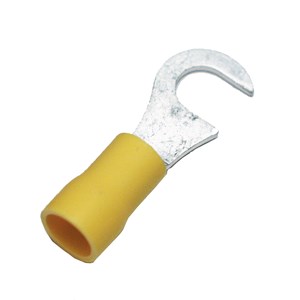

Hook terminals A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Hook shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (3)

Spade terminals A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (14)

Spade terminals NT PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Fork shape
According to DIN:
Yes
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
Halogen free:
Yes
V2
Yes
Yes
.
Show filter/search products (12)

Spade terminals A PL-series with flanged spade


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-27 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Copper
Voltage max:
600V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (3)

Spade terminals N PLD-series with flanged spade


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
27 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
Partially isolated
Colour insulation:
Blue
Sleeve form:
Long
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
V2
Yes
Yes
.
Show filter/search products (2)

Tab male disconnects A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Plug
Max. current (Imax):
10-24 A
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Brass
Voltage max:
300V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (12)

Heat-shrink insulated Bullet male TS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Plug
Max. current (Imax):
10-24 A
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyethylene (PE)
Operating temperature:
-55-125 °C
Material:
Brass
Voltage max:
300V
Yes
Yes
.
Show filter/search products (4)

Heat-shrink insulated Ring terminals TS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
No
Insulation:
Polyamide (PA)
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-125 °C
Material:
Copper
Voltage max:
600V
Yes
Yes
.
Show filter/search products (19)

Heat-shrink insulated Spade terminals TS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
Polyamide (PA)
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-125 °C
Material:
Copper
Voltage max:
600V
Yes
Yes
.
Show filter/search products (8)

Fully heat-shrink insulated Receptacle TS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Bushing
Max. current (Imax):
10-24 A
Insulation:
Fully isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Colour:
Yellow, Blue
Material insulation:
Polyethylene (PE)
Operating temperature:
-55-125 °C
Material:
Brass
Voltage max:
300V
Yes
Yes
.
Show filter/search products (3)

Heat-shrink insulated Tab TS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Plug
Max. current (Imax):
10-24 A
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyethylene (PE)
Operating temperature:
-55-125 °C
Material:
Brass
Voltage max:
300V
Yes
Yes
.
Show filter/search products (8)

Fully Insulated Tab male disconnects N PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Plug
Max. current (Imax):
10-24 A
Insulation:
Fully isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
No
Material insulation:
Polyamide (PA)
Fire classification:
According to UL94V2
Operating temperature:
-40-105 °C
Material:
Brass
Voltage max:
300V
V2
Yes
Yes
.
Show filter/search products (3)

Piggyback disconnects A PL-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Bushing
Max. current (Imax):
10-24 A
Insulation:
Partially isolated
Colour insulation:
Blue, Yellow, Red
With cam clamp:
No
With tap spreader:
Yes
Material insulation:
Polyvinyl chloride (PVC)
Fire classification:
According to UL94V0
Operating temperature:
-40-75 °C
Material:
Brass
Voltage max:
300V
Halogen free:
No
V0
Yes
Yes
.
Show filter/search products (3)

Nelco Contact AB

Daléns gata 7

195 61 Arlandastad

Sweden



TEL: +46 (0)8 754 70 40

MAIL: order@nelco.se

Product Categories

Connectors

Installation Material

Connection & Completion

Cable

Tools & Machines

Linecard

About Nelco

About us

Values

Quality & Environment

GDPR

Contact

Delivery Terms

Returns

Contact us

FAQ



News

Corporate news

Fairs & exhibitions

Career

Social

LinkedIn

facebook

Instagram

Newsletter

We are using Cookies to give you a superior user experience. If you want to find out more about cookies and how we use them, please go to our cookie page. Further browsing of this site indicates that you accept our cookie policy.
Accept
