Butt splices A PL-series
PL are made of pipes
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Number of branches:
- 0 N/A
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- Packaging:
- Loose piece
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved

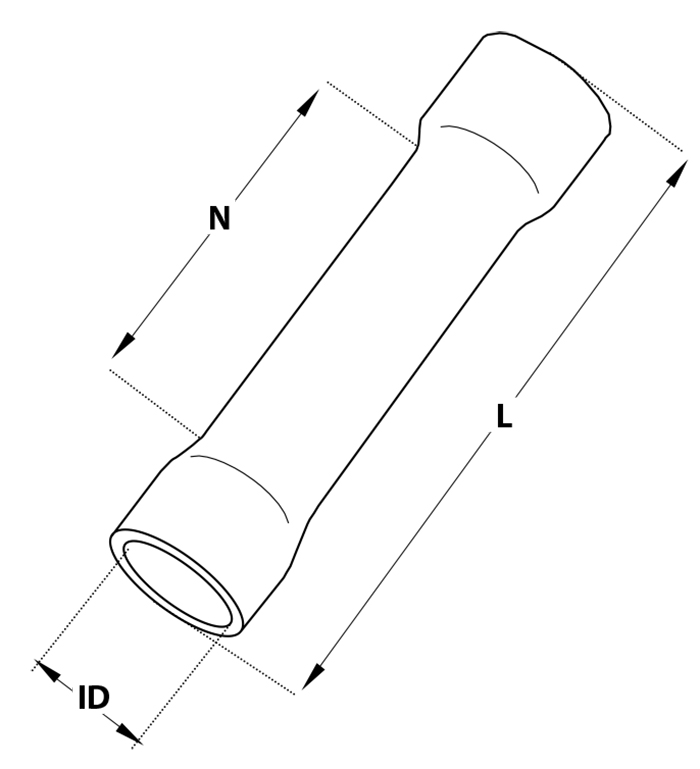

Dimensions
- Total: 3
| Product Description | ID | L | N | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|

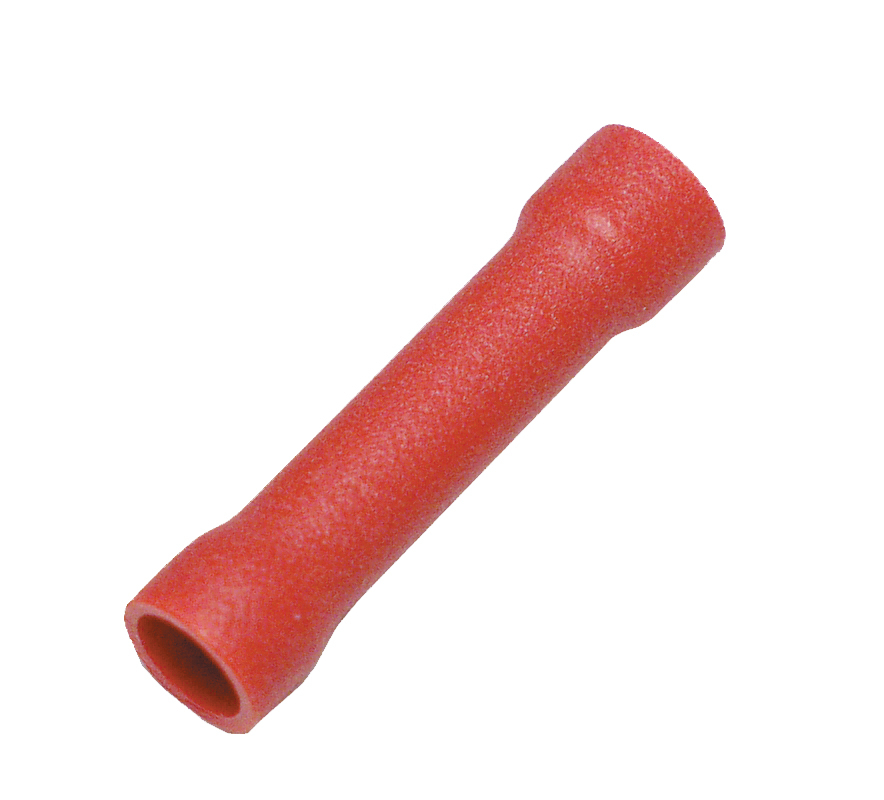

| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 25mm | 4 mm | 25 mm | 15 mm | 100 . | pcs | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 25mm | 4.5 mm | 25 mm | 15 mm | 100 . | pcs | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 27mm | 6.6 mm | 27 mm | 15 mm | 100 . | pcs | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 25mm |
|
|
|
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 25mm |
|
|
|
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 27mm |
|
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Number of branches | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 25mm | Yes | Yes | UL model | 19 A | 0 N/A | Red | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 25mm | Yes | Yes | UL model | 27 A | 0 N/A | Blue | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 27mm | Yes | Yes | UL model | 48 A | 0 N/A | Yellow | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V | No | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BUTT SPLICE RED, 0.5-1.5mm², 25mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | A1525SKPL |
Yes
|
|
|
| INSULATED BUTT SPLICE BLUE, 1.0-2.5mm², 25mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | A2527SKPL |
Yes
|
|
|
| INSULATED BUTT SPLICE YELLOW, 4-6mm², 27mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Butt Splices - PVC | A4652SKPL |
Yes
|
|
|
- Total: 3
