DINFLEX 43


NEMIQ
Number of cores:
4-16 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Other
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
250 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Grey
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-30-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
24-50 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (11)

Texiline


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Brown, Grey, Red, Black, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-90 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
90 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Core colour:
Blue, Brown, Grey, Green/yellow, Red, Black
Conductor surface:
Tinned
Min. permitted bending radius, stationary application/permanent installation:
6-14.7 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (33)

H01N2-D FT - Spool


NEMIQ
Number of cores:
1 .
Material core insulation:
Rubber
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Red, Black
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-20-80 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
80 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
No
Conductor category:
Class 6 = very flexible
Single insulated/Double insulated:
Single insulated
Core colour:
Red, Black
Conductor surface:
Tinned
Min. permitted bending radius, stationary application/permanent installation:
58.2-115.2 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (26)

RK (H05V-K, H07V-K)


-
Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Grey, Red, Black, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Colour:
Black, Grey, Green/yellow, Red, Light blue, Dark blue
Material insulation:
Polyvinyl chloride (PVC)
Designations:
H07V-K (RK 1.5 - 400mm2)
Operating temperature:
-5-70 °C
Core colour:
Blue, Grey, Green/yellow, Red, Black
Conductor surface:
Bare
Halogen free:
No
Packaging:
Ring
Min. permitted bending radius, stationary application/permanent installation:
25.6-60.8 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (38)

DATAFLEX - Korta längder


NEMIQ
Number of cores:
4-6 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
250 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Grey
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-30-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
27.5-45 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (3)

DINFLEX-CY (LiYCY) - Spool 100m


NEMIQ
Number of cores:
2-50 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Grey
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-30-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
18.5-64.5 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (64)

Crimp tool - Basic


NEMIQ -
With locking device (for mechanical tools):
Yes
Inserts exchangeable:
No
Number of included inserts:
1 .
With automatic return:
Yes
Cycle time:
2 s
Suitable for:
Cable lugs and connectors, Screen connector
Construction/operation:
Mechanical
For component:
Insulated terminals, Non-insulated terminals, roller compaction, Coaxial
Compression shape:
Hexagon, Oval pressing, Roll compression (shrinking)
.
Show filter/search products (7)

Svetskabel - Dubbelisolerad, trumma


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Yellow
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-45-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
80 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
No
Conductor category:
Class 6 = very flexible
Single insulated/Double insulated:
Double insulated
Colour:
Yellow
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-40-80 °C
Core colour:
Yellow
Conductor surface:
Bare
Halogen free:
No
Packaging:
Reel B5
Min. permitted bending radius, stationary application/permanent installation:
43.2-90 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (5)

Installation Kit – Solar Panel Connectors


NEMIQ
With locking device (for mechanical tools):
Yes
Inserts exchangeable:
Yes
Number of included inserts:
1-2 .
With automatic return:
Yes
Cycle time:
2 s
Suitable for:
Cable lugs and connectors
Construction/operation:
Ratchet model mechanical
Compression shape:
Square compression, Roll compression (shrinking), Universal (exchangeable inserts)
.
Show filter/search products (3)

Tool set specially designed for electricians


NEMIQ
With locking device (for mechanical tools):
Yes
Inserts exchangeable:
Yes
Number of included inserts:
3 .
With automatic return:
Yes
Cycle time:
2 s
Suitable for:
Various applications
Construction/operation:
Mechanical
Compression shape:
Universal (exchangeable inserts)
.
Show filter/search products (2)

NELCOFLEX-CY (EMC) - 100m


NEMIQ
Number of cores:
3-25 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Numbers
Protective conductor:
Yes
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Transparent
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
31.6-66.4 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (13)

Heat-shrink insulated Ring terminals DS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Ring shape
According to DIN:
No
Insulation:
Polyamide (PA)
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-125 °C
Material:
Copper
Voltage max:
600V
Yes
Yes
.
Show filter/search products (15)

Heat-shrink insulated Spade terminals DS-series


NEMIQ
Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Reel/roll packaging:
No
Max. current (Imax):
19-48 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
Polyamide (PA)
Colour insulation:
Blue, Yellow, Red
Sleeve form:
Short
Suitable for solid cores:
No
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-125 °C
Material:
Copper
Voltage max:
600V
Yes
Yes
.
Show filter/search products (5)

Flaggkabelskor


NEMIQ
Reel/roll packaging:
No
Model:
Bushing
Max. current (Imax):
8-10 A
Insulation:
Not isolated
Colour insulation:
Other
With cam clamp:
No
With tap spreader:
No
Material insulation:
Other
Operating temperature:
-10-110 °C
Material:
Brass
Neck type:
Open barrel crimp
Yes
.
Show filter/search products (4)

Flatstiftshylsor med nabb


NEMIQ
Model:
Bushing
Max. current (Imax):
8-24 A
Insulation:
Not isolated
Colour insulation:
Other
With cam clamp:
No
With tap spreader:
No
Material insulation:
Other
Operating temperature:
-10-110 °C
Material:
Bronze, Brass
Neck type:
Open barrel crimp
Packaging:
Loose piece
Yes
.
Show filter/search products (12)

Gaffelkabelskor (rullpress)


NEMIQ
Reel/roll packaging:
No
Max. current (Imax):
16 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
None
Colour insulation:
Other
Sleeve form:
Short
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-110 °C
Material:
Brass
Neck type:
Open barrel crimp
Yes
.
Show filter/search products (1)

Ratchet Cable Cutters - NRCC


NEMIQ
Grip design:
1-component
With impact protection:
No
Replaceable cutting head:
Yes
Cutting jaws exchangeable:
Yes
With strip function:
No
Insulated:
Yes
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
No
Construction/operation:
Ratchet model mechanical
Isolation protection 1000 V:
No
VDE tested:
No
.
Show filter/search products (2)

Hexagonal Crimp Tool - EHX 00860


NEMIQ
With locking device (for mechanical tools):
Yes
Inserts exchangeable:
No
Number of included inserts:
1 .
With automatic return:
Yes
Cycle time:
2 s
Suitable for:
Cable end sleeves
Construction/operation:
Mechanical
For component:
End sleeves
Compression shape:
Hexagon
.
Show filter/search products (1)

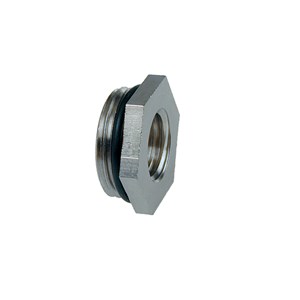

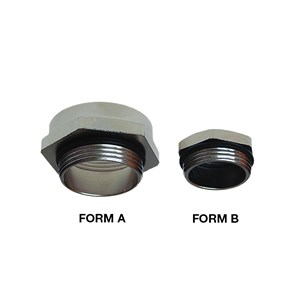

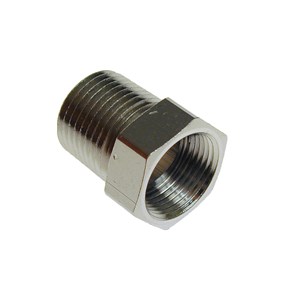

Metall


NEMIQ
Pressure-compensating:
No
Material quality:
Brass
RAL-number:
0 N/A
Thread type:
Metric, PG
Glass-fibre reinforced:
No
Shock resistant:
No
Explosion-tested version:
No
For Ex-zone gas:
None
For Ex-Zone dust:
None
Colour:
Nickel
Surface protection:
Nickel-plated
Operating temperature:
-25-120 °C
Material:
Metal
Halogen free:
N/A
.
Show filter/search products (19)

2G4 - 100 m spool 1-color, 10-16 mm²


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Red, Black
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-100 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
100 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
100 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Colour:
Black, Red
Operating temperature:
-40-100 °C
Core colour:
Red, Black
Conductor surface:
Bare
Packaging:
Reel B4
Min. permitted bending radius, stationary application/permanent installation:
26.5 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (3)

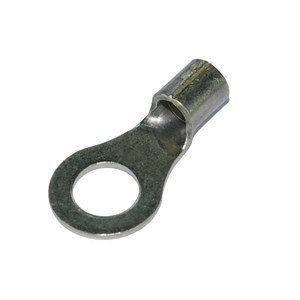

Ringkabelskor (svetsad)


NEMIQ
Reel/roll packaging:
No
Max. current (Imax):
19-160 A
Flange shape:
Ring shape
According to DIN:
No
Insulation:
None
Colour insulation:
Other
Sleeve form:
Short
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Nickel-plated
Operating temperature:
-55-400 °C
Material:
Nickel
Neck type:
Welded
UL-File No.:
E44245
Yes
Yes
.
Show filter/search products (18)

Gaffelkabelskor (Rullpress)


NEMIQ JST
Reel/roll packaging:
Yes
Max. current (Imax):
19 A
Flange shape:
Fork shape
According to DIN:
No
Insulation:
None
Colour insulation:
Other
Sleeve form:
Short
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
Surface protection:
Tinned
Operating temperature:
-55-110 °C
Material:
Brass
Neck type:
Open barrel crimp
UL-File No.:
E42024
Yes
Yes
.
Show filter/search products (3)

Toppskarvar, crimp


NEMIQ Nichifu
Model:
Bushing
Insulation:
Fully isolated
Colour insulation:
Other
Colour:
White
Material insulation:
Polyamide (PA)
Operating temperature:
-60-105 °C
Material:
Copper
Connector type:
Toppskarv, pressbar
Packaging:
Loose piece
UL-File No.:
E44245
Yes
Yes
Yes
.
Show filter/search products (5)

Toppskarvar, crimp


NEMIQ JST
Model:
Bushing
Insulation:
Fully isolated
Colour insulation:
Other
Colour:
White
Material insulation:
Polyamide (PA)
Operating temperature:
-60-105 °C
Material:
Copper
Connector type:
Toppskarv, pressbar
Packaging:
Loose piece
UL-File No.:
E42024
Yes
Yes
Yes
.
Show filter/search products (4)

Nelco Contact AB

Daléns gata 7

195 61 Arlandastad

Sweden



TEL: +46 (0)8 754 70 40

MAIL: order@nelco.se

Product Categories

Connectors

Installation Material

Connection & Completion

Cable

Tools & Machines

Linecard

About Nelco

About us

Values

Quality & Environment

GDPR

Contact

Delivery Terms

Returns

Contact us

FAQ



News

Corporate news

Fairs & exhibitions

Career

Social

LinkedIn

facebook

Instagram

Newsletter

We are using Cookies to give you a superior user experience. If you want to find out more about cookies and how we use them, please go to our cookie page. Further browsing of this site indicates that you accept our cookie policy.
Accept
