360 view
KRT 95-8 -45GR

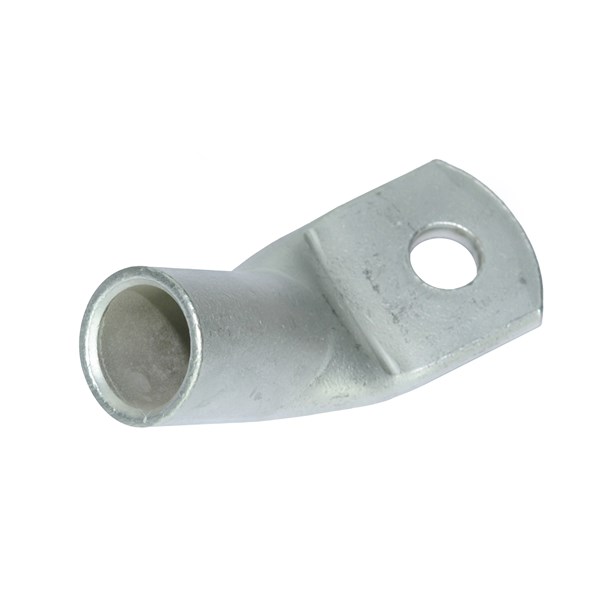

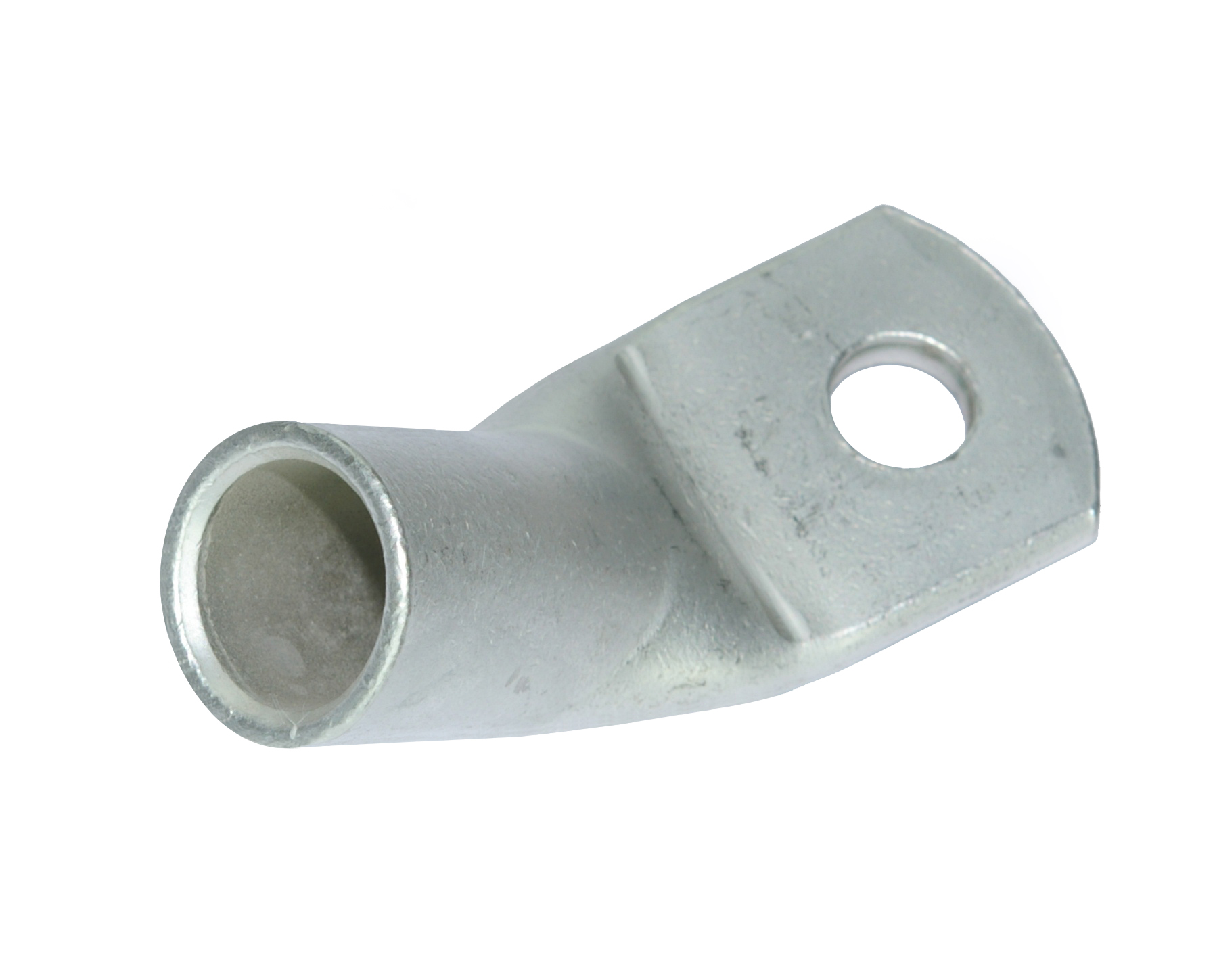

CABLE LUG KRT, -45GR 95mm2, M8
KRT 95-8 -45GR
- Availability:
-
No
Product Properties
| Insulated | No |
|---|---|
| Max. current (Imax) | 288 A |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | Yes |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 45° |
| Series | KRT/KST(10-500mm2) |
Dimensions
| MOQ | 50 . |
|---|---|
| Unit | pcs |
| Bolt dimension (metric) | 8 . |
| Nominal cross section | 95 mm² |
Logistics
| Barcode | 733117631704 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Stock code | KRT 95-8 -45GR |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs, angled |
| Search Description | RÖRKABELSKO KRT, BOCKAD -45GR |
| Alternative SKU | KRT95-8-45GR |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
