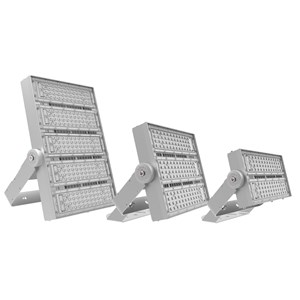

Utomhusbelysning för stolpmontage
WOT är armaturerna för utomhusbelysning med högt ställda belysningskrav. Armaturens gedigna konstruktion och kraftiga belysning gör den lämplig för offentliga utrymmen såsom parkeringsplatser/garage, byggnader, bensinstationer marinor, uppställningsplatser m.m. Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens fäste.
Dioder: Nichia
Prestanda: 140 lm / W
Effekt: 100 W
Dimbar: Ja
CRI: RA75
IP-klass: IP65
Ljusvinkel: 60° x 90°
Drivdon: 1-10 V
Ljustemperatur: 4000 K
Garanti: 5 år
- Dimming 1-10 V:
- Yes
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Housing colour:
- Grey
- Voltage type:
- AC
- With control gear:
- Yes
- Colour temperature:
- 3500-4500 K
- Colour rendering index CRI:
- 70-79
- Luminaire efficacy:
- 140 lm/W
- Degree of protection (IP):
- IP65
DC dimmer for rocker push-button
DC dimmer for use together with any push-button switch. Dim up to 96 watts (8A/12V or 4A/24V) of incandescent, halogen or LED lighting.Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 12 or 24 Volt DC power is present.Dims “non-dimmable” constant voltage LED’s.Suitable for 12VDC and 24VDC strip LED’s.Suitable for RGB or tunable white LED’sDigital control provides accurate and flicker free dimming to very low intensityNo minimum loadConnect any number of DC dimmers to a single push-button switch.
12V @ 8A24V @ 4A48V @ 2A
AC Dimmer for rocker push-button
AC LED DIMMER ~ 230VAC, 125W (0.5A), 50Hz, IP20. Kompakt universell dimmer för återfjädrande tryckknappsbrytare. Lätt att installera bakom den befintliga ljusbrytaren. Kräver ingen neutral ledning. Lämplig för LED med externt drivdon samt för eftermonterad LED, halogen eller glödlampa.
Trailing or Leading edge.
Minne: återgår till tidigare dimmerinställning vid start.
Vid strömförlust t.ex. strömavbrott startar dimmern på 50% vid start.
Arbetstemperatur: -5 - + 45° C
Mått: 36 x 36 x 12 mm
Trådlängd: 60 mm
IEC 60669-1IEC 60669-2-1
Dimbara drivdon konstant ström
Drivers for LED downlights.
Technical data:
Voltage: 220-240 VAC
Frequency: 50-60 Hz
Size (LxWxH): See table below.
Power: See table below.
Temp. Range: -20°C to +50°C
IP rating: IP65
Dimming: Leading or Trailing Edge
Cable:Input: 100mm, 0.5mm2.
Output: 200mm, AWG22.
LDD04S: Suited for 1 LED’s from the LSP-series.
LDD08S: Suited for 2 LED’s from the LSP-series.
LDD12S: Suited for 2-3 LED’s from the LSP-series.
LDD19S: Suited for 3-5 LED’s from the LSP-series.
See accessories below for appropriate connectors.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Housing:
- Plastic housing
- Suitable for constant current:
- Yes
- Suitable for constant voltage:
- No
- Output voltage:
- 6.5-11.5 V
- Output current:
- 350 mA
- Output power:
- 2.5-4 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
Driver for LED 18.5-26W
Drivers for LED downlights.
Technical data:
Voltage: 220-240 VAC
Frequency: 50-60 Hz
Size (LxWxH): See table below.
Power: See table below.
Temperature range: -20°C to +50°
CIP rating: IP65
Cable: Input: 100mm, 0.5mm2. Output: 200mm, AWG22.
LDD26S: Suited for 6-8 LED from the LSP-series or 2 LED from the MSP-series. See accessories below for appropriate connectors.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Housing:
- Plastic housing
- Suitable for constant current:
- Yes
- Suitable for constant voltage:
- No
- Output voltage:
- 53-74 V
- Output current:
- 350 mA
- Output power:
- 18.5-26 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
DC dimmer with Berker Integro rocker push-button
DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips.
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
AC dimmer with Berker Integro rocker push-button
AC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights with external driver.
Universal push-button switch dimmer for universal load compatibility. The units utilise powerful and sophisticated dimming technology to provide full control of almost any type of load. The dimmer also incorporate overcurrent and over-temperature protection devices and are capable of withstanding persistent short circuit conditions.
Accurate and flicker free dimming to very low intensity.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
230VAC, 125W (0.5A), 50Hz, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety: IEC 60669-1: 2017, IEC 60669-2-1: 2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
Reflektorer och övriga tillbehör för MSP-Serien.
Choose reflector for different light beams.A honey comb to reduce blinding can be added for the MSP-series.
- Attachment of luminaire cover/post globe:
- Other
- Design of the grid/reflector:
- Glossy
- Kind of luminaire cover/post globe:
- Other
- Light distributor:
- Reflector
- Type of accessory/spare part:
- Reflector
- Beam angle:
- 15-35 °
- Colour:
- Chrome
- Accessory:
- Yes
- Spare part:
- No

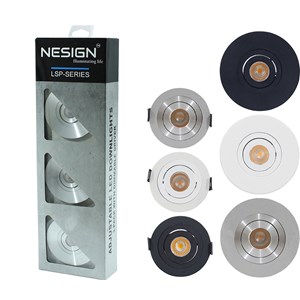

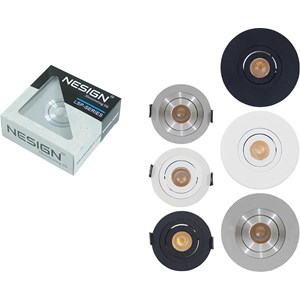

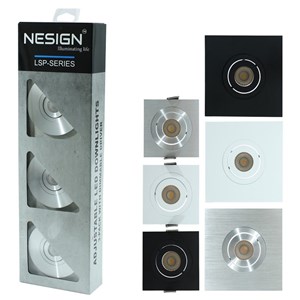

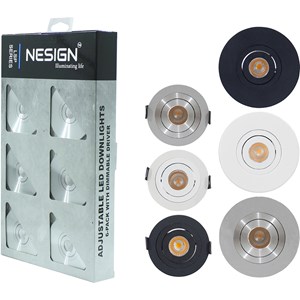

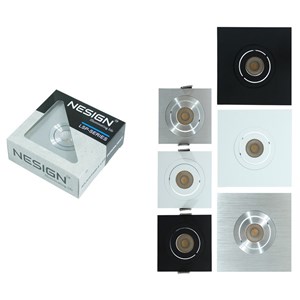

LSP Downlights 3CCT Rektangulär
Vinklingsbara downlights med mycket hög kvalitetskänsla.
Fungerar för både inomhus och utomhus montage. Downlights med 3CCT (2400K, 2700K och 3000K) som enkelt väljs på kabeln.
Finns i storlek 2 eller 3 LED Spotlights och installeras med 4 fjädrar.
2 spotlights: 60 x 115 mm ramar. Hålstorlek: 52 mm x 105 mm eller 2 x 52-54 mm hål med CC 55 mm.
3 spotlights: 60 x 170 mm ramar. Hålstorlek: 52 mm x 160 mm eller 3 x 52-54 mm hål med CC 55 mm.
Kan kompletteras med drivdon, kablar och kopplingsplintar.
Teknisk data:
Effekt: 4 W
Ljusstyrka: Se nedan tabell
Dimmningsbara: Ja
Ljusvinkel: 60°
Ljustemperatur: Se nedan tabell
IP-klass: IP54
Temperaturområde: -20 till +50° C
Livslängd: 70% efter 50.000 h
Spänning: 1-9 V
Ström: 350 mA
Antal LED;ar: 1 st
LED: COB, CREE CXA1304-2 STEP
Color Rendering Index(CRI): 90
Optik: Reflektor med prisma framför
LED Glas: Klart
Energiklass: F
Kabel: 100 mm AWG22 med brytare samt kontaktdon.
Finns i vitt, svart eller aluminium utförande.
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- No
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- F
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 4 W
- Colour of light:
- White
- Colour temperature:
- 2400-3000 K
- Colour rendering index CRI:
- 80-89
- Luminous flux:
- 325 lm
- Lamp efficacy:
- 82 lm/W
- Luminous intensity:
- 364 cd
- Number of poles:
- 2 .
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP54
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 325 lm

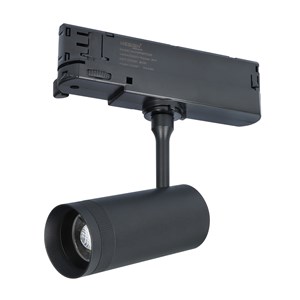

Zoom Light for 3-phase track, 8W
Zoom Light is a dimmable (triac) spotlight designed for 3-phase tracks with zoom functionality.
By turning the ring, one can smoothly adjust the beam angle from a focused 15° to a wider 55°. This enables precise control over the direction and intensity of the light, allowing optimal management of the light flow when actively illuminating specific areas.
Rotatable: 330°
Tiltable: 90°
Beam angle: 15°-55°
• Easy adjustment of the lighting directly without additional tools.
• Utilize already installed 3-phase tracks.
Spotlight diameter: 45 mm
Spotlight length: 105 mm
Maximum protrusion from track: 170 mm
Track adapter: 150 x 32 x 46 (L x W x H).
- Dimming phase cut-on (leading edge):
- Yes
- Housing material:
- Aluminium
- Suitable for surface mounting:
- Yes
- Suitable for built-in mounting:
- No
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- Yes
- Suitable for clamp-mounting:
- No
- Adjustability:
- Rotating and swivelling
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Black
- Material cover:
- None
- Surface brushed:
- No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Reflector:
- High-gloss
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 8 W
- Colour of light:
- White
- Colour temperature:
- 2700 K
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Covering of the luminaire with thermally insulating material possible:
- No
- Connection type:
- Other
- Emergency power supply integrated:
- No
- Surface protection:
- Powder coating

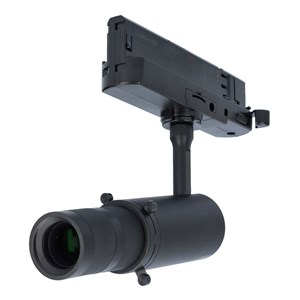

ArtLight till 3-fasskena, 10W
ArtLight is a contour spotlight with advanced optics, ideal for actively illuminating selected areas. With simple adjustments, you can switch from circular to rectangular or square light distribution with sharp or diffuse edges and change the beam angle between 20°-35°. This flexibility opens up many possibilities for illuminating artworks or other objects.
Framing, for example, a painting by projecting light within its edges creates a dramatic self-illuminating effect.
Rotatable: 330°
Tiltable: 90°
Beam angle: 20°-35°
• Easy to adjust the lighting directly without extra tools.
• Enhances the colors of art or pictures in the best way with excellent color rendering with a CRI of 95.
• Uses already installed 3-phase tracks.
Spotlight diameter: 45 mm
Spotlight length: 150 mm
Maximum projection from track: 216 mm
Track adapter: 150 x 32 x 46 (L x W x H).
- Dimming phase cut-on (leading edge):
- Yes
- Housing material:
- Aluminium
- Suitable for surface mounting:
- Yes
- Suitable for built-in mounting:
- No
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- Yes
- Suitable for clamp-mounting:
- No
- Adjustability:
- Rotating and swivelling
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Black
- Material cover:
- None
- Surface brushed:
- No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Reflector:
- High-gloss
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 10 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Covering of the luminaire with thermally insulating material possible:
- No
- Connection type:
- Other
- Emergency power supply integrated:
- No
- Surface protection:
- Powder coating
Bastu LED Strip COB 24VDC, IP67
COB-LED strip för ljussättnig av bastu.
COB tekniken gör att ljuset upplevs som en oavbruten sträng och ger ett jämnt ljus över hela listen.
LED stripen är 5m och det kan förkortas till önskad längd med 5cm intervall.
På LED listen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd. På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP67 kaplingsklass.
IP67
Max temperatur: 105°
Color Rendering Index(CRI): 90
TUV-CE, UL, RoHs
- Max. system power:
- 50 W
- Colour temperature:
- 2700 K
- Number of poles:
- 2 .
- Lamp power per meter:
- 10 W
- Lamp power per foot:
- 3.048 W
- Luminous flux per meter:
- 840 lm
- Lamp voltage:
- 24 V
LED Strip SMD 230V, IP65
230V LED strip där inget drivdon behövs. För att undvika problemet om vart man ska gömma drivdonet är denna LED strip lösningen, då det inte behövs något drivdon utan kan kopplas med 230V direkt.
LED stripen är 5m och det kan förkortas till önskad längd med 10cm intevall.
På LED stripen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd.
På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP65 kaplingsklass.
IP65
Color Rendering Index(CRI): 80
TUV-CE, RoHs
- Max. system power:
- 75 W
- Colour temperature:
- 2700 K
- Number of poles:
- 2 .
- Lamp power per meter:
- 15 W
- Lamp power per foot:
- 4.573 W
- Luminous flux per meter:
- 1470 lm
- Lamp voltage:
- 220-240 V

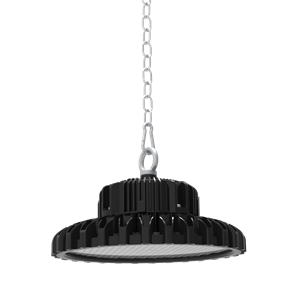

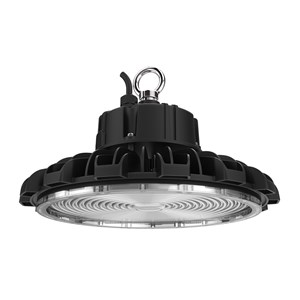

High Bay Ufo - Dali
Luminaires for industrial use, garages, warehouses, gymnasiums etc. This luminaire is newly developed and very compact in size, perfect for modern buildings where there are lots of other components and installations that must fit.
Technical data:
Diodes: Nichia
Performance: 150 lm / W
Power: 40-200 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 60-120°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.

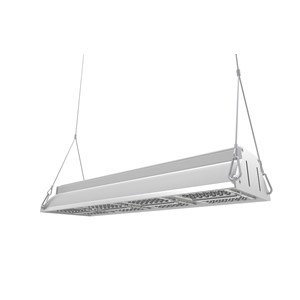

High Bay Linear - Dali
Luminaires for industrial use, garages, warehouses, gymnasiums etc. The oblong design makes this product very appropriate for being mounted between shelves and in aisles for forklifts.
Technical data:
Diodes: Nichia
Performance: 140 lm / W
Power: 50-240 W. Can be mounted in double rows for 240-480 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 80 x 40° or 130 x 55°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
EF
EF is the most common type of aluminium armoued conduit, and can be used in many different areas. Material: Galvanised steel core, leadfree PVC coverTemperature range: -25 degrees Celsius to +70 degrees Celsius , temporary +90 degrees Celsius Colours: Grey, black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black, Grey
- Surface protection:
- Galvanised
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 66-67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Approved in combination with protective conduit CSA:
- Yes, No
- Approved in combination with protective conduit UL:
- Yes, No
OR
OR is specially developed for areas where conduit systems are being exposed to oils and greases. The flexibility of the conduit is being safeguarded. Material: Galvanised steel core, leadfree PVC coverTemperature range: -15 degrees Celsius to +100 degrees Celsius , temporary +120 degrees Celsius Colour: Black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC), oil resistant
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 45°-Bend
- Thread type:
- NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
HC
Används vid stora temperaturskillnader. Yttermanteln behåller sin styrka både vid höga och låga temperaturer.
Konstruktion: Galvaniserad stålspiral med bomullspackning.
Yttermantel av PVC
Temperatur: -45° C till +105° C, tillfälligt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 66-67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 90°-elbow, 90°-Bend
- Thread type:
- Metric, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
HTDL
HTDL har en integrerad koppartråd som gör att slangen kan användes för jordning. HTDL är UL och CSA godkänd.
Konstruktion: Galvaniserad stålspiral med integrerad kopparledare.
Termoplastisk PVC yttermantel
Temperatur: -40° C till +105° C, temporärt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
