LSP Downlights Kvadratiska 3-Pack

These downlights can be tilted, only use high quality components and has a premium feeling. Works for both indoor and outdoor use.Available in sizes 60x60mm or 80x80mm.60x60mm frames have springs and can be mounted in ceiling.Hole size: 52-54mm.80x80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.3-pack. Can be supplemented with drivers, cables and connectors.Technical data:Power: 3.3WLumen: See below.Dimmable: YesLight beam spread: 60°Color temp: See below.IP rating: IP54Temp. Range: -20°C to +50°CLife-span: 70% after 50.000hVoltage: 1-10VAmperage: 350mAAmount of LED’s: 3pcs
Type of LED: COB, CREE CXA1304-2 STEPCRI: RA90Optics: Reflector with a prism in front of the LED.Glass: ClearEnergy rating: A++Cable: 100mm AWG22 with connector.Size: Depth=50mm, Height=60mmDownlight depth in box: Max 25mm

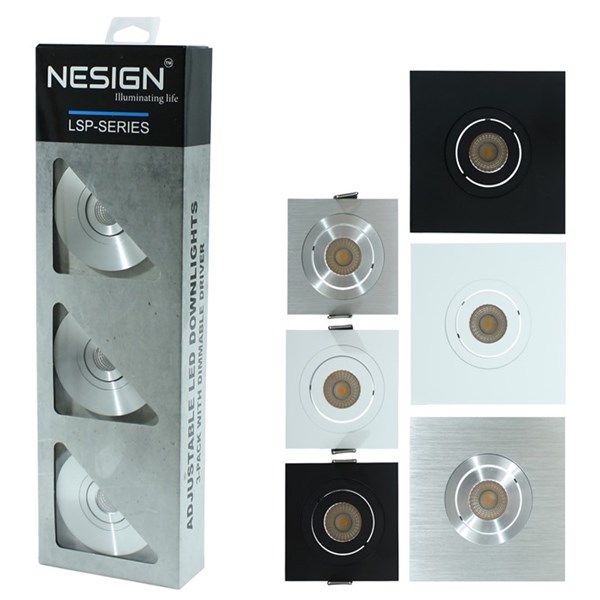

Available in white, black or aluminum color.

Show item list

Technical properties

Dimmable:
Yes
Dimming 0-10 V:
No
Dimming 1-10 V:
No
Dimming DALI:
No
Dimming DSI:
No
Dimming DMX:
No
Dimming potentiometer (integrated):
No
Dimming GPRS:
No
Dimming LineSwitch:
No
Dimming manufacturer's proprietary system:
No
Dimming mains voltage modulation:
No
Dimming phase cut-off (trailing edge):
Yes
Dimming phase cut-on (leading edge):
Yes
Dimming programmable:
No
Dimming RF:
No
Dimming Sine Wave Reduction:
No
Dimming Touch and Dim:
No
Dimming Zigbee:
No
Dimming with push-button:
No
Protection class according to IEC 61140:
III
Housing material:
Aluminium
Suitable for surface mounting:
No
Suitable for built-in mounting:
Yes
Suitable for wall mounting:
No
Suitable for suspended mounting:
No
Suitable for ceiling mounting:
Yes
Suitable for traverse mounting:
No
Suitable for pedestal/floor mounting:
No
Suitable for light-track mounting:
No
Suitable for clamp-mounting:
No
Suitable for low voltage cable system:
No
Adjustability:
Rotatable
With movement sensor:
No
With light sensor:
No
Lamp type:
LED not exchangeable
With light source:
Yes
Suitable for number of light sources:
1 .
Lamp holder:
None
Housing colour:
Aluminium, Black, White
Material cover:
None
Surface brushed:
Yes, No
Voltage type:
AC
Nominal voltage:
220-240 V
Type of control gear:
LED operating device current-controlled
With control gear:
Yes
Dimming depending on control gear:
Yes
Reflector:
High-gloss
Light distributor:
Reflector
Light distribution:
Symmetric
Beam angle:
41-80° - Wide beam
Light outlet:
Direct
Energy efficiency class of the built-in lamp:
A++, A+, A (LED)
Degree of protection (NEMA):
Other
Suitable for lamp power:
0 N/A
Max. system power:
3.3 W
Colour of light:
White
Colour temperature:
2700 K
Colour rendering index CRI:
90-100
Luminous flux:
310 lm
Lamp efficacy:
94 lm/W
Luminous intensity:
368 cd
Number of poles:
2 .
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
No
Suitable for workplace according to EN 12464-1:
No
Covering of the luminaire with thermally insulating material possible:
Yes
Connection type:
Crimping
Frame shape:
Square
Degree of protection (IP):
IP54
Surface protection:
Other, Powder coating
Rated luminous flux according to IEC 62722-2-1:
310 lm

Show more

  • Total: 12

LSP-3 2700A60S-SP

Availability:
No

LSP-3 2700A80S-MW

Availability:
No

LSP-3 2700B60S-SP

Availability:
No

LSP-3 2700B80S-MW

Availability:
No

LSP-3 2700W60S-SP

Availability:
No

LSP-3 2700W80S-MW

Availability:
No

LSP-3 3000A60S-SP

Availability:
No

LSP-3 3000A80S-MW

Availability:
No

LSP-3 3000B60S-SP

Availability:
Yes

LSP-3 3000B80S-MW

Availability:
No

LSP-3 3000W60S-SP

Availability:
No

LSP-3 3000W80S-MW

Availability:
No
  • Total: 12
  • Total: 12
Product Description Availability
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
Yes
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
Yes
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
Yes
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
Yes
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
