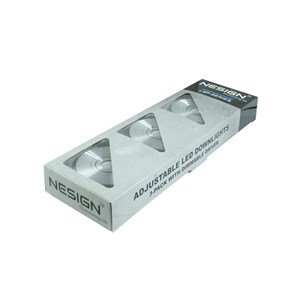

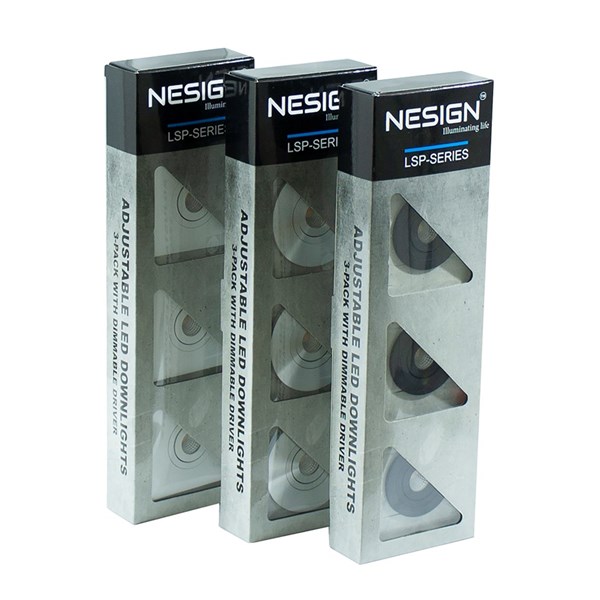

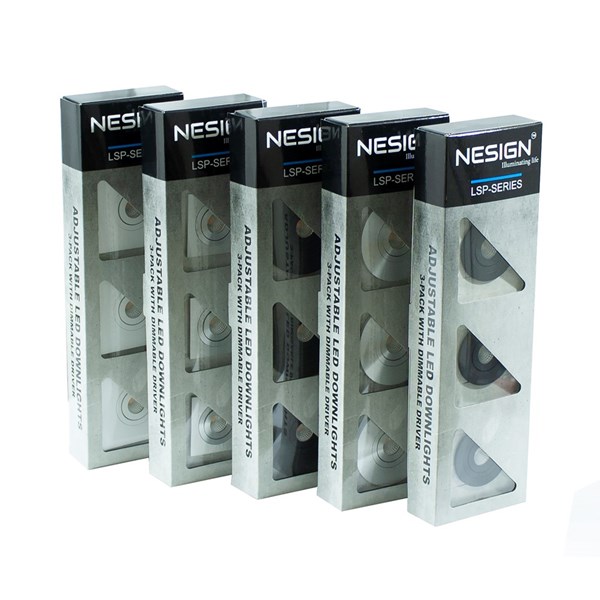

LSP Downlights Kvadratiska 3-Pack
These downlights can be tilted, only use high quality components and has a premium feeling. Works for both indoor and outdoor use.Available in sizes 60x60mm or 80x80mm.60x60mm frames have springs and can be mounted in ceiling.Hole size: 52-54mm.80x80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.3-pack. Can be supplemented with drivers, cables and connectors.Technical data:Power: 3.3WLumen: See below.Dimmable: YesLight beam spread: 60°Color temp: See below.IP rating: IP54Temp. Range: -20°C to +50°CLife-span: 70% after 50.000hVoltage: 1-10VAmperage: 350mAAmount of LED’s: 3pcs
Type of LED: COB, CREE CXA1304-2 STEPCRI: RA90Optics: Reflector with a prism in front of the LED.Glass: ClearEnergy rating: A++Cable: 100mm AWG22 with connector.Size: Depth=50mm, Height=60mmDownlight depth in box: Max 25mm

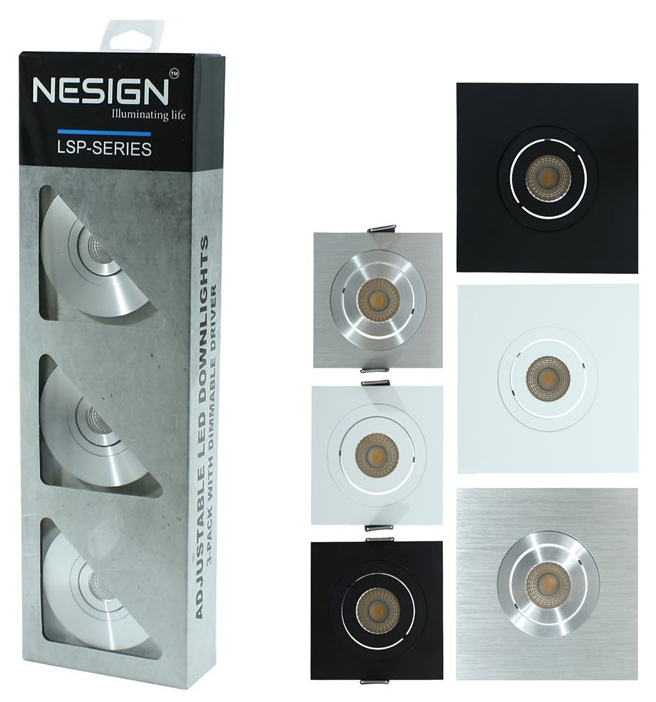

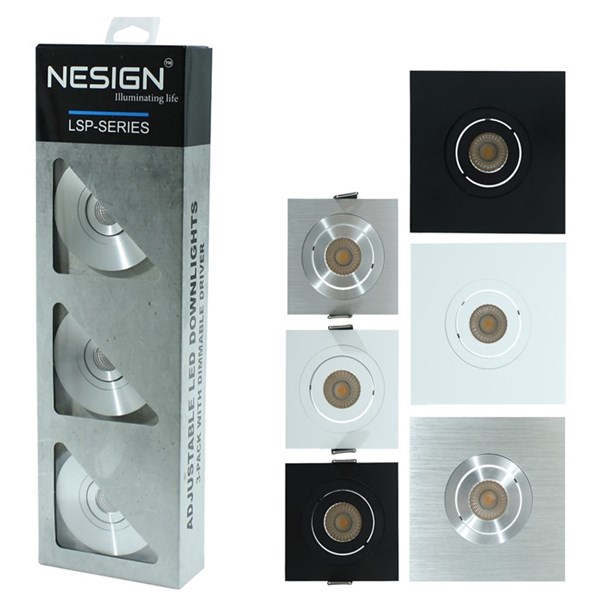

Available in white, black or aluminum color.
Technical properties
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 3.3 W
- Colour of light:
- White
- Colour temperature:
- 2700 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 310 lm
- Lamp efficacy:
- 94 lm/W
- Luminous intensity:
- 368 cd
- Number of poles:
- 2 .
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Square
- Degree of protection (IP):
- IP54
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 310 lm
Show more
Item List
- Total: 12
- Total: 12
Dimensions
- Total: 12
| Product Description | Width | Built-in width | Built-in length | Built-in diameter | Conductor cross section | MOQ | Connectable conductor cross section | Height/depth | Unit | Length | Outer diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
Yes
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 60 mm | 0 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 80 mm | 0 mm |
No
|
|
|
- Total: 12
Approvals
- Total: 12
- Total: 12
Technical Properties
- Total: 12
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700A60S-SP | E7473298 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700A80S-MW | E7473300 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700B60S-SP | E7473303 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700B80S-MW | E7473305 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700W60S-SP | E7473308 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-32700W80S-MW | E7473310 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-33000A60S-SP | E7473313 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | SPOT | LSP-33000A80S-MW | E7473315 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | LSP-33000B60S-SP | E7473318 |
Yes
|
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | LSP-33000B80S-MW | E7473320 |
No
|
|
|
|
| 3-PACK LED DOWNLIGHTS 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | LSP-33000W60S-SP | E7473323 |
No
|
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
LSP - LED Downlight | LSP-33000W80S-MW | E7473325 |
No
|
|
|
- Total: 12
