RADOX 125 - Industry Spool
Halogen free flexible connector cable for the internal wiring in lamps, heaters, electrical equipment, command and control cabinets, and in the construction industry. Ideal for the installation inside the tubes as well as for external installation.
Very good electrical and mechanical properties. Wide temperature range and high resistance to oils, ozone, hydrolysis and mechanical stress. Connection wire is flame retardant, at fire it develops minimum of smoke and no corrosive gases are released.
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -55-145 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue
- Material insulation:
- Polyolefin (POE)
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Orange, Red, Black, White
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Packaging:
- Spool HS150, Spool HS400, Spool HS200
- Min. permitted bending radius, stationary application/permanent installation:
- 4.35-10.05 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RADOX AUTOL 155 TAPE
Batterikabel som har (FHLR91X Enligt DIN76722) utmärkt beständighet mot hög och låg temperatur, ozon- och väderbeständighet, beständig mot högt tryck, temperatur, motorolja, bränslen och hydrolys, flamskyddsmedel, hög nötningsbeständig, lödbeständig, lätt att skala och bearbeta tack vare tape, enligt ISO 6722 klass D, LV 112, ISO 14572, LV 212, DIN 76722.
Uppfyller EU - direktiv 2000/53 / EG om uttjänta fordon. Det är fritt från bly, kvicksilver, kadmium och krom VI.
Användning: Lågspänningskabel, för användning i bla hybrid- och elfordon, lastbilar.
FÖRSIKTIGHET: Särskild försiktighet ska iakttas för kablar som används med spänningar över 60 VDC för att skydda dem från mekanisk belastning för att undvika stötar (ISO 6722: 2006)
Ledare: Glödgad koppar enligt ISO C flexibel 6
Ledarisolation: 155S (polyolefin) Mantelfärg: Se produktdata.
Tekniska data:
Driftspänning: 1000VAC 1500VDC
Provspänning AC: < Temp. område: -40ºC till +150ºC (3000H)
Minsta böjradie: 3 x kabelns diameter
Godkännanden, Standarder: ISO 6722 class D iSO 19642-9
- Colour outer sheath:
- Red
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Red
- Halogen free:
- Yes
RADOX 3 GKW 600/1000 V - Single conductor
Halogenfri kopplingskabel för fast förläggning i tågapplikationer, lamparmaturer, elektriska applikationer samt kabeldragning i vagnar, terminaler och annan kraftförsörjningsapparatur. Tålig mot hög mekanisk belastning, olja och bränsle.
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Grey, Red, Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey, Green/yellow, Red, Blue
- Material insulation:
- Polyolefin (POE)
- Core colour:
- Blue, Grey, Green/yellow, Red, Black
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Packaging:
- Spool HS400, Spool HS401, CK, Spool HS200
- Min. permitted bending radius, stationary application/permanent installation:
- 6-53.7 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
DOUFLEX
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packing: Coil
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheath color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x diameter of the cable
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Orange
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Orange(Black)
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Orange
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 58.4 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RK (H05V-K, H07V-K)
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:
HO5V-K 0.5-1.0 mm²: 300/500
VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:
HO5V-K 0.5-1.0 mm²: 2000
VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300-600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue, Pink, Purple, Light blue, Dark blue
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H05V-K (RK 0.5-1.0mm2), H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Pink, Red, Black, White
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring, Carton (box)
- Min. permitted bending radius, stationary application/permanent installation:
- 12.4-18.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RK Barrel
Used as connectors line and installation line.
Structure
Conductors: Bare stranded copper
Conductor Insulation: PVC
Core identification: The table below
Technical data:
Rated voltage:
HO5V-K 0.5-1.0 mm²: 300/500
VHO7V-K 1.5-120 mm²: 450/750 V
Test voltage:
HO5V-K 0.5-1.0 mm²: 2000
VHO7V-K 1.5-120 mm²: 2500 V
Temperature range: -5ºC to +70ºC (+23ºF to +158ºF).
Minimum bend radius: 12 x cable diameter
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Light blue
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Blue
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Barrel
- Min. permitted bending radius, stationary application/permanent installation:
- 18.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

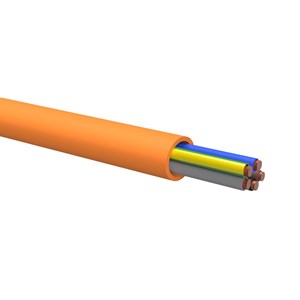

NELCOFLEX - PUR
Den fintrådiga uppbyggnaden i kombination med PUR-manteln ger en mycket elastisk kabel med liten böjradie. Ytterhöljet av polyuretan möjliggör en mycket liten kabelytterdiameter, höga mekaniska påfrestningar kan motstås. Kabeln är nötningssäker, mikrobeständig och flamsäker. Lämplig för användning i kabelkedjor och kontinuerligt rörliga maskiner samt
portalrobotar.
Uppbyggnad:
Ledare: Blank flertrådig koppar klass 6.
Ledarisolation: PP
Yttermantel: PUR, PURWIL
Mantelfärg: Grå, Orange
Ledarfärg - PUR: Svart med vit eller svart nummermärkning.
Ledarfärg - PURWIL: Färgade ledare enl. HD 308
Gröngul skyddsledare.
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm² -70mm²
Temp. område: Fast förläggning min/max: -40ºC till +90ºC
Rörlig förläggning min/max: -40ºC till +90ºC
Minsta böjradie: 5 x kabelns diameter
Oljebeständighet: God
Flambeständighet: IEC 332-1
Godkännanden: DIN EN 60811-404
VDE 0482 del 332-2-2 resp. IEC 60332-2-2
Tillämpade standarder: liknande VDE 0250
- Number of cores:
- 2-25 .
- Material core insulation:
- Rubber, Polyurethane (PUR)
- Specification core insulation:
- Other
- Core identification:
- Colour, Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyurethane (PUR)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey, Orange
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 60-90 °C
- Screen:
- No
- Armouring/reinforcement:
- Braiding, None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey, Orange
- Material insulation:
- Polyurethane (PUR)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 27.5-97 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX-CY (EMC) - Trumma
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned braided copper wire, which protects against mechanical loads and in particular all shields electrical freqvencly as well inside and outside the cable (EMC Directive).
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems.
Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Inner Sheath: PVC
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath Colour: Transparent
Technical data:
Rating voltage: 300/500 V
Test voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range: Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Approvals: Meets Swedish and European standards asSS EN 60204
- Number of cores:
- 2-25 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Transparent
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 30.4-153.2 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Colour:
- Black
- Core colour:
- Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 10.2 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

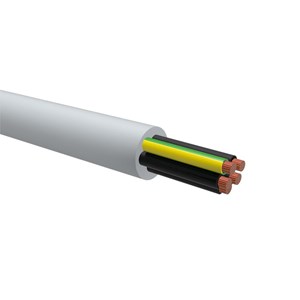

MULTINORM-Y
HAR/UL-CSA styrkablar är särskilt lämpliga för exportinriktad tillverkning av maskiner, anläggningar och utrustning; på grund av de internationella godkännandena kan dessa styrkablar nästan användas över hela världen. De installeras i torra och fuktiga rum med medelstor mekanisk påfrestning och som anslutningskablar för statiska och icke-kontinuerliga böjningsapplikationer. Dessa kablar är dessutom extremt flexibla och används därför för värme- och kylinstallationer men inte utomhus eller för direkt nedgrävning.
Produkten motsvarar direktivet 2014/35/EU (lågspänningsdirektivet).
Uppbyggnad
Ledare: Blank flertrådig koppar class 5
Ledarisolation: Pvc
Ledarfärg: Svart med vit nummermärkning. Gröngul skyddsledare
Yttermantel: Pvc
Mantelfärg: Grå
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm²-70mm²
Temp. område: Fast förläggning min/max: 5ºC till +70ºC
Temp. område: UL+CSA: 5ºC till +90ºC
Isolationsmotstånd: > 20 MΩ x km
Minsta böjradie: 12,5 x kabelns diameter
Godkännanden:
Cpr klass: Eca
Självsläckande och flamskyddsmedel enl. till IEC
60332-1; VW1; CSA FT1
Standard EN 50525-2-51 / VDE 0285-525-2-51; UL style
2517/2587 och CSA C22.2 nr. 210.2-M90 AWM I A/B II
A/B
Standard EN 50525-2-51 / VDE 0285-525-2-51; UL stil
2517/2587 och CSA C22.2 nr. 210.2-M90 AWM I A/B II
A/B
Godkännande: HAR: 300/500 V - 70 ° C | UL / CSA 600 V - 90 ° C
- Number of cores:
- 3-5 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 32.4-40.4 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

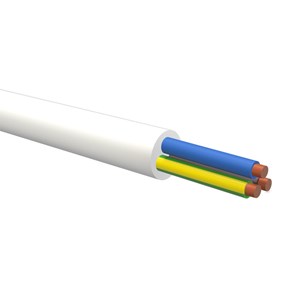

RKK (H05VV-F)
Rund anslutningskabel för normal drift, t ex i bostäder, kök och kontor; även i fuktiga lokaler för anslutning av t ex tvättmaskiner, torktumlare och kylskåp. Olämplig för permanent utomhusanvändning, eller där risk för skador p g a värme föreligger.
Uppbyggnad Ledare: Extra mångtrådig koppar enligt IEC 60228 klass 5
Ledarisolation: Blyfri PVC
Mantelfärg: Vit eller grå blyfri PVC
Tekniska data:
Märkspänning Uo/U: 300/500 V
Partmärkning:
2-ledare: Blå, brun
3-ledare: Grön/gul, blå, brun
4-ledare: Grön/gul, brun, svart, grå
5-ledare: Grön/gul, blå, brun, svart, grå
Temperaturområde: I kontinuerlig drift max. ledartemperatur 60ºC. Lägsta hanteringstemperatur +5ºC
Minsta böjradie: 6 x kabelns diameter, utan belastning
- Number of cores:
- 3 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- Yes
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -30-60 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 60 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- White
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 49.5-61.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
SIFF, Silikonkabel
Silikon-mantlade flerledarkabel erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installation i offentliga byggnader.
Uppbyggnad Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Grå.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie: Flexibel: 12 x kabeldiametern Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet
VDE 0295. VDE 0293. VDE 0293-308. IEC 60332-1-2 (F2)
- Number of cores:
- 2 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - silicone rubber (SIR)
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -60-180 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 180 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Silicone
- Core colour:
- Grey
- Conductor surface:
- Tinned
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX - PUR/PUR 2000, 2001
Den fintrådiga uppbyggnaden i kombination med PUR-manteln ger en mycket elastisk kabel med liten böjradie. Ytterhöljet av polyuretan möjliggör en mycket liten kabelytterdiameter, höga mekaniska påfrestningar kan motstås. Kabeln är nötningssäker, mikrobeständig och flamsäker. För installation på fordon för skog, gräv och industriella maskiner och maskinverktyg.
Uppbyggnad Ledare: Blank flertrådig koppar klass 6.
Ledarisolation: PUR
Ledarfärg - 2001: Svart med vit nummermärkning
Ledarfärg - 2000: Färgade ledare
Skyddsledare: G = Grön/gul, X = Utan skyddsledare
Yttermantel: PUR
Mantelfärg: Svart
UV-beständig
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Temp. område: Fast förläggning min/max: -50ºC till +80ºC
Rörlig förläggning min/max: -40ºC till +80ºC
Minsta böjradie: Flexibel: 15 x kabeldiametern
Oljebeständighet: God
Godkännanden: CE
- Number of cores:
- 2-7 .
- Nominal voltage:
- 300 V
- Colour:
- Black
- Material insulation:
- Polyurethane (PUR)
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Number of cores:
- 2-8 .
- Nominal voltage:
- 250 V
- Colour:
- Black
- Material insulation:
- EPDM, Polyurethane (PUR), TPE
- Conductor surface:
- Bare
- Halogen free:
- No

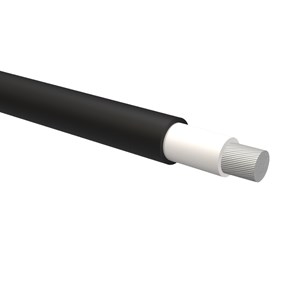

NSGAFÖU
Dubbelisolerad kopplingskabel i oljebeständigt och flamhämmande utförande. Har en inner- och yttermantel av special gummi vilket gör att den tål hög mekanisk belastning. Kortslutnings- och jordfelssäker upp till 1000 V. För installationer i bussar, tåg och i kopplingsskåp. Lämpar sig även för anslutning till rörliga enheter.
Märkspänning: Uo/ U1,8/3kV
Ledaruppbyggnad: Klass 5 = mångtrådig
Material Ledare: Förtent koppar
Ledarisolering: EPR gummi
Yttermantel: Specialgummi, polykloropren
Färg på yttermantel: Svart
Böj radie fast förläggning: 6 x kabeldiametern
Böj radie rörlig förläggning: 10 x kabeldiametern
Min temperatur fast förläggning: -40°C
Max temperatur fast förläggning +80°C
Min temperatur rörlig förläggning: -25°C
Max temperatur rörlig förläggning: +80°C
Provspänning: 6000V
Isolationsresistans: ≥20 M Ohm x km
Max temperatur ledare: +90°C
Brandspridningsklass: IEC 60332-1
Tillverkningsnorm: VDE 0295, IEC 60228
Godkännande. VDE 0250 Part 602
- Number of cores:
- 1 .
- Nominal voltage:
- 1800 V
- Colour:
- Black
- Material insulation:
- Neopren (CR)
- Conductor surface:
- Tinned
- Halogen free:
- No
- Packaging:
- Reel B5

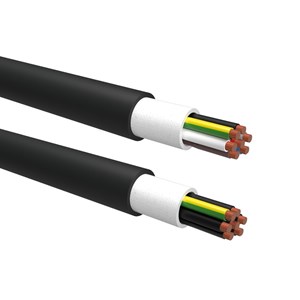

NELCOFLEX-CY, 0.6/1Kv
Flexibel oljebeständig kabel med god beständighet mot inverkan av kemikalier, syror och lutar. Den fintrådiga uppbyggnaden i kombination med PVC-manteln ger en mycket elastisk kabel.
Kabeln är försedd med en skärm av förtent flätad koppartråd, som skyddar mot mekanisk belastning och framförallt avskärmar elektriska störningar såväl inom som utanför kabeln (EMC-direktivet).
Kabeln används som styr- och manöverkabel på och i industrimaskiner, i kyl- och ventilationsanläggningar.
Kabeln kan användas både inne och utomhus vid beaktan av temperaturområde. Vid förläggning i mark skall kabelskyddsrör användas.
Märkspänning: Uo/U 0,6/1kV
Ledaruppbyggnad: Klass 5 = mångtrådig blank koppar
Ledarisolering: PVC
Ledarfärg/Ledarmärkning: Svart med vit nummermärkning. Skydds ledare Grön/Gul
Innermantel: PVC svart
Skärm: Fläta av förtent koppartråd
Yttermantel: PVC svart
Böjradie vid fast förläggning: 20 x kabeldiametern
Min temperatur vid fast förläggning: -30°C
Max temperatur vid fast förläggning: +70°C
Min temperatur vid rörlig förläggning: -15°C
Max temperatur vid rörlig förläggning: +70°C
Provspänning: 4000V
Brandspridningsklass: IEC 60 332-1 (F2)
Tillverkningsnorm: VDE 0295, IEC 60228
Godkännande enl. EN 50525-2 51
- Number of cores:
- 12 .
- Nominal voltage:
- 1000 V
- Colour:
- Black
- Material insulation:
- Polyvinyl chloride (PVC)
- Conductor surface:
- Bare
- Halogen free:
- No
NELCOFLEX-H
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius.
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems. Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Outer Sheath: PVC
Sheath Colour: Grey
Technical data:
Rating voltage: 300/500 VTest voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range:
Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1Approvals: Meets Swedish and European standards asSS EN 60204
- Number of cores:
- 2-25 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Other
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- TPE
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 21.2-56 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Dca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
H07BQ-F
Polyuretanmantlad och EPR-isolerad anslutningskabel för applikationer där kabeln utsätts för kraftigt mekaniskt slitage. Typiska användningsområden är handverktyg, på byggnadsplatser, i gruvindustrin, i maskininstallationer, samt inom livsmedelsteknisk- och kemisk industri. Kabeln är avsedd för torra eller våta rum, inom- och utomhus. Kabeln är halogenfri.
Uppbyggnad
Ledare: Fintrådig ledare av blank koppar
Ledarisolering: EPR-gummi.
Färgmärkta ledare Innermantel: EPR-gummi
Yttermantel: Polyuretan
Mantelfärg: Orange
Ledarfärger: Enl. DIN VDE 0293-308
Tekniska data:
Driftspänning: H07BQ-F: 450/750 V (>1,0 mm²;)
Provspänning: 2000 V AC
Temperaturområde: -40ºC till +75ºC
Minsta böjradie: 4 x kabelns ytterdiameter
Godkännanden: Flambeständighet CENELEC HD 22.10 S1
- Number of cores:
- 2-3 .
- Nominal voltage:
- 750 V
- Colour:
- Orange
- Material insulation:
- EPR, Polyurethane (PUR)
- Conductor surface:
- Bare
- Halogen free:
- No
SIHF, Silikonkabel
Silikon-mantlade flerledarkablar erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installataion i offentliga byggnader.
Uppbyggnad
Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna färgmärkta tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Röd-Brun.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie:
Flexibel: 12 x kabeldiametern
Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet VDE 0295.VDE 0293.VDE 0293-308IEC 60332-1-2 (F2)
- Number of cores:
- 2-7 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - silicone rubber (SIR)
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -60-180 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 180 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Brown/Red
- Material insulation:
- Silicone
- Core colour:
- Red, Several
- Conductor surface:
- Tinned
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6-88 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX-CY - PUR
Den fintrådiga uppbyggnaden i kombination med PUR-manteln ger en mycket elastisk kabel med liten böjradie. Ytterhöljet av polyuretan möjliggör en mycket liten kabelytterdiameter, höga mekaniska påfrestningar kan motstås. Kabeln är nötningssäker, mikrobeständig och flamsäker. Lämplig för användning i kabelkedjor och kontinuerligt rörliga maskiner samt portalrobotar.
Uppbyggnad:
Uppbyggnad Ledare: Blank flertrådig koppar cl.6
Ledarisolation: PELON®2
Ledarfärg: Svart med vit nummermärkning. Gröngul skyddsledare
Skärm: Fleece och flätad koppartråd
Ledare: Blank flertrådig koppar klass 6.
Ledarisolation: PP
Ledarfärg - PUR: Svart eller vit med vit eller svart
nummermärkning. G=Gröngul skyddsledare. X=Nummermärkt
Ledarfärg - PURWIL: Färgade ledare enl. HD 308
Gröngul skyddsledare
Ledarfärg - Partvinnade: DIN47100
Yttermantel: PUR, PURWIL
Mantelfärg: Grå
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm²-70mm²
Temp. område: Fast förläggning min/max: -40ºC till +90ºC
Rörlig förläggning min/max: -40ºC till +90ºC
Minsta böjradie: 5 x kabelns diameter
Oljebeständighet: God
Flambeständighet: IEC 332-1
Godkännanden: DIN EN 60811-404
VDE 0482 del 332-2-2 resp. IEC 60332-2-2
Tillämpade standarder: liknande VDE 0250
- Number of cores:
- 4-20 .
- Material core insulation:
- Polyurethane (PUR)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyurethane (PUR)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 90 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes
- Conductor category:
- Class 6 = very flexible
- Colour:
- Grey
- Material insulation:
- Polyurethane (PUR)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 111 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX-CY, SERVO
Flexibel kabel för användning till servomotorsystem från ledande tillverkare.Kombination av ledare för kraft och signalöverföring. Termoskydd och bromsskydd kan t.ex. integreras med kraftmatningen. Längre ledningsdragningar är möjliga tack vare en design med låg kapacitans. Utrymmes- och viktbesparande installationer tack vare liten kabeldiameter. Skärm av flätad koppar skyddar kabeln mot elektromagnetiska störningar.
EMC-kompatibel anslutning mellan frekvensomriktare och frekvensomformare för normala krav i dragkedjeapplikationer, rörliga drivsystem, inom robotteknik och tillverkningsanläggningar. Lämplig för användning i torra och fuktiga rum.
Uppbyggnad
Ledare: Blank flertrådig koppar cl.6
Ledarisolation: PELON®2
Ledarfärg: Svart med vit nummermärkning. Gröngul skyddsledare
Innermantel: PVC
Skärm: Fleece och flätad koppartråd
Yttermantel: PVC
Mantelfärg: Orange eller Grå
Teknisk data:
Märkspänning: Uo/U0,6/1kV
Märkspänning: Uo/U enligt UL/CSA600/1000V
Provspänning: 4kV
Kabelarea: 0.5mm²-16mm²
Temp. område: Fast förläggning min/max: -30ºC till +80ºC
Rörlig förläggning min/max: -5ºC till +80ºC
Ledarmotstånd vid +20°C enl. till IEC 60228 cl. 6
Isolationsmotstånd vid 20° C ≥ 20 G Ohm x km
Minsta böjradie: 5 x kabelns diameter fast förlagd
10x kabels diameter rörligt förlagd
Oljebeständighet: Enl: ISO 6722, EN 60811-404 (endast mineral olja)
Flambeständighet: Självsläckande och flamskyddande enl. till IEC 60332-1; UL: VW1; CSA: FT1.
Godkännanden: Uppfyller svensk och europeisk standard enligt SS EN 60204 UL/CSA.
- Number of cores:
- 4 .
- Nominal voltage:
- 1000 V
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Conductor surface:
- Bare
- Halogen free:
- No
NELCOFLEX-Y
Flexible oil resistant cable is resistant to the effects of chemicals and acids.
The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius. It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems. Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Outer Sheath: PVC
Sheath Colour: Grey
Technical data:
Rating voltage: 300/500 V
Test voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range: Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation
Best: 8 x 107 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Approvals: Meets Swedish and European standards asSS EN 60204
- Number of cores:
- 2-50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour, Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500-1000 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 19.6-164.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Availability:
-
No
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Green/yellow
- Material insulation:
- Polyvinyl chloride (PVC)
- Designations:
- H07V-K (RK 1.5 - 400mm2)
- Core colour:
- Green/yellow
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 60.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
NELCOFLEX-CY (EMC) - Korta längder
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned braided copper wire, which protects against mechanical loads and in particular all shields electrical freqvencly as well inside and outside the cable (EMC Directive).
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems.
Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Inner Sheath: PVC
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath Colour: Transparent
Technical data:
Rating voltage: 300/500 V
Test voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range: Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
Approvals: Meets Swedish and European standards asSS EN 60204
- Number of cores:
- 2-50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Transparent
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 31.6-105.6 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
