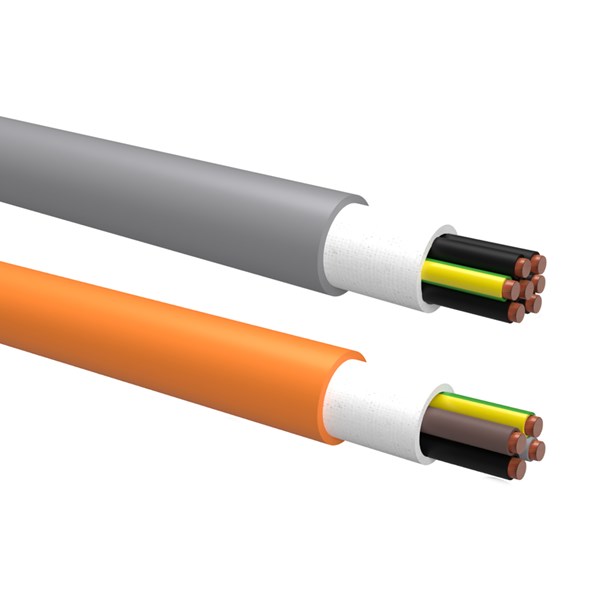

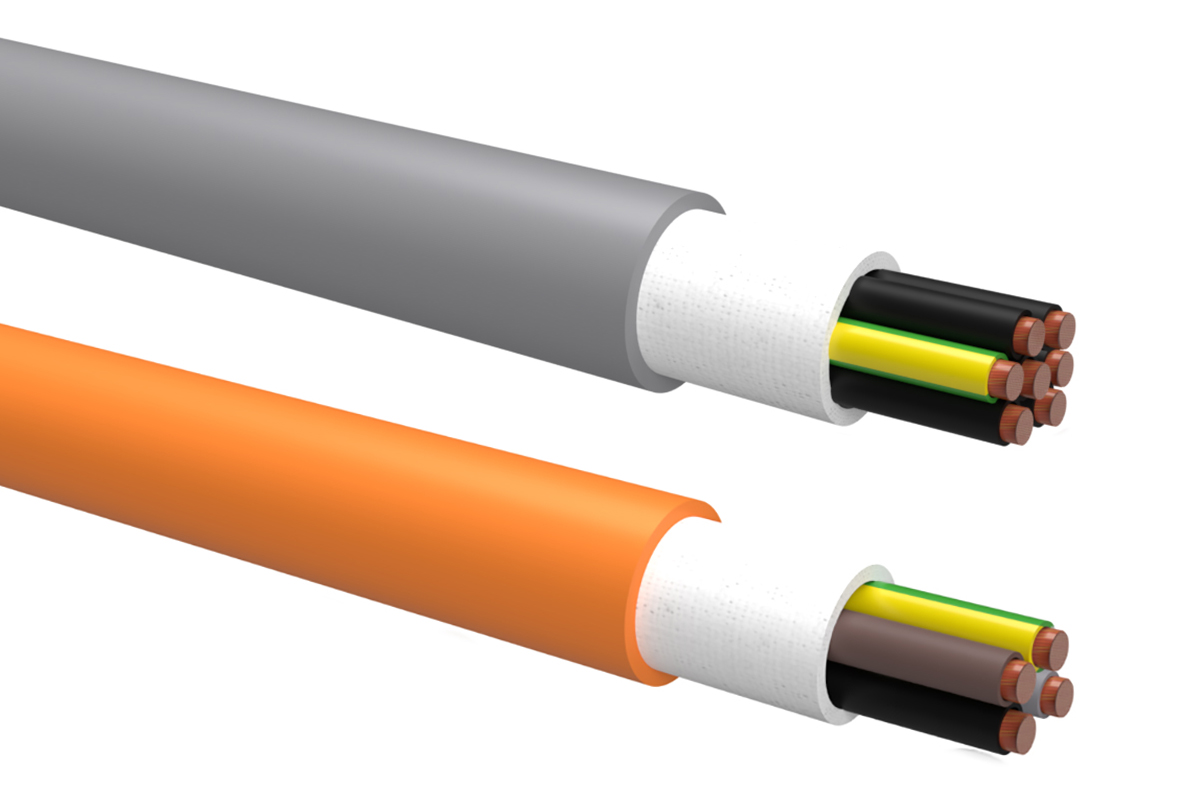

NELCOFLEX - PUR
Den fintrådiga uppbyggnaden i kombination med PUR-manteln ger en mycket elastisk kabel med liten böjradie. Ytterhöljet av polyuretan möjliggör en mycket liten kabelytterdiameter, höga mekaniska påfrestningar kan motstås. Kabeln är nötningssäker, mikrobeständig och flamsäker. Lämplig för användning i kabelkedjor och kontinuerligt rörliga maskiner samt
portalrobotar.
Uppbyggnad:
Ledare: Blank flertrådig koppar klass 6.
Ledarisolation: PP
Yttermantel: PUR, PURWIL
Mantelfärg: Grå, Orange
Ledarfärg - PUR: Svart med vit eller svart nummermärkning.
Ledarfärg - PURWIL: Färgade ledare enl. HD 308
Gröngul skyddsledare.
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm² -70mm²
Temp. område: Fast förläggning min/max: -40ºC till +90ºC
Rörlig förläggning min/max: -40ºC till +90ºC
Minsta böjradie: 5 x kabelns diameter
Oljebeständighet: God
Flambeständighet: IEC 332-1
Godkännanden: DIN EN 60811-404
VDE 0482 del 332-2-2 resp. IEC 60332-2-2
Tillämpade standarder: liknande VDE 0250
Technical properties
- Number of cores:
- 5 ., 2 ., 18 ., 7 ., 25 ., 4 ., 3 .
- Material core insulation:
- Rubber, Polyurethane (PUR)
- Specification core insulation:
- Other
- Core identification:
- Colour, Numbers
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyurethane (PUR)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey, Orange
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-90 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 90 °C, 60 °C
- Screen:
- No
- Armouring/reinforcement:
- Braiding, None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Orange, Grey
- Material insulation:
- Polyurethane (PUR)
- Operating temperature:
- -40-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 36.5 mm, 33 mm, 59 mm, 46 mm, 64 mm, 78.5 mm, 47.5 mm, 66.5 mm, 48 mm, 83 mm, 97 mm, 27.5 mm, 33.5 mm
Show more
Item List
- Total: 14
- Total: 14
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 14
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-Y, 5G0.75mm2, ORANGE GUMMILEDARE, 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 7.3 mm | 36.5 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 2x1.0mm2, ORANGE UGG, GUMMILEDARE, 500V, PUR, HF, 70C | 1 mm² | 100 . | 6.6 mm | 33 mm | 1 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 12G0.5mm2, GREY 500V, PUR, HF, 70C | 0.5 mm² | 100 . | m | 500 V |
Yes
|
|
|
|||
| NELCOFLEX-Y, 7G0.75mm2, GREY 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 9.2 mm | 46 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.75mm2, GREY 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 12.8 mm | 64 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 25G0.75mm2, GREY 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 15.7 mm | 78.5 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 7G1.0mm2, GREY 500V, PUR, HF, 70C | 1 mm² | 100 . | 9.5 mm | 47.5 mm | 1 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.0mm2, GREY 500V, PUR, HF, 70C | 1 mm² | 100 . | 13.3 mm | 66.5 mm | 1 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 4G1.5mm2, GREY 500V, PUR, HF, 70C | 1.5 mm² | 100 . | 9.6 mm | 48 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 3G0.75mm2, GREY 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 5.5 mm | 27.5 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 5G0.75mm2, GREY 500V, PUR, HF, 70C | 0.75 mm² | 100 . | 6.7 mm | 33.5 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 25G1.5mm2, GREY 500V, PUR, HF, 70C | 1.5 mm² | 100 . | 19.4 mm | 97 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.5mm2, GREY 500V, PUR, HF, 70C | 0.5 mm² | 100 . | 11.8 mm | 59 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.5mm2, GREY 500V, PUR, HF, 70C | 1.5 mm² | 100 . | 16.6 mm | 83 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
- Total: 14
Similar Options
Approvals
- Total: 14
| Product Description | Approved according to SS EN 60204 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-Y, 5G0.75mm2, ORANGE GUMMILEDARE, 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 2x1.0mm2, ORANGE UGG, GUMMILEDARE, 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 12G0.5mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 7G0.75mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.75mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 25G0.75mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 7G1.0mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.0mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 4G1.5mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 3G0.75mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 5G0.75mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 25G1.5mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.5mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.5mm2, GREY 500V, PUR, HF, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
- Total: 14
Technical Properties
- Total: 14
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Armouring/reinforcement | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-Y, 5G0.75mm2, ORANGE GUMMILEDARE, 500V, PUR, HF, 70C | 5 . | Rubber | Other | Colour | Yes | Polyurethane (PUR) | Other | Orange | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Orange | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 36.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 2x1.0mm2, ORANGE UGG, GUMMILEDARE, 500V, PUR, HF, 70C | 2 . | Rubber | Other | Colour | No | Polyurethane (PUR) | Other | Orange | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Orange | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 33 mm |
Yes
|
|
|
| NELCOFLEX-Y, 12G0.5mm2, GREY 500V, PUR, HF, 70C | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | Copper | No | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes |
Yes
|
|
|
||||
| NELCOFLEX-Y, 7G0.75mm2, GREY 500V, PUR, HF, 70C | 7 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 46 mm |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.75mm2, GREY 500V, PUR, HF, 70C | 18 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 64 mm |
Yes
|
|
|
| NELCOFLEX-Y, 25G0.75mm2, GREY 500V, PUR, HF, 70C | 25 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 78.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 7G1.0mm2, GREY 500V, PUR, HF, 70C | 7 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 47.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.0mm2, GREY 500V, PUR, HF, 70C | 18 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 66.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 4G1.5mm2, GREY 500V, PUR, HF, 70C | 4 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 48 mm |
Yes
|
|
|
| NELCOFLEX-Y, 3G0.75mm2, GREY 500V, PUR, HF, 70C | 3 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -30-60 °C | Copper | No | 60 °C | No | Braiding | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 27.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 5G0.75mm2, GREY 500V, PUR, HF, 70C | 5 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -30-60 °C | Copper | No | 60 °C | No | Braiding | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 33.5 mm |
Yes
|
|
|
| NELCOFLEX-Y, 25G1.5mm2, GREY 500V, PUR, HF, 70C | 25 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 97 mm |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.5mm2, GREY 500V, PUR, HF, 70C | 18 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 59 mm |
Yes
|
|
|
| NELCOFLEX-Y, 18G1.5mm2, GREY 500V, PUR, HF, 70C | 18 . | Polyurethane (PUR) | Other | Numbers | Yes | Polyurethane (PUR) | Other | Grey | According to IEC/EN 60332-1-2 | -40-90 °C | Copper | No | 90 °C | No | None | No | 500 V | No | Class 5 = flexible | Grey | Polyurethane (PUR) | -40-70 °C | Several | Bare | Yes | 83 mm |
Yes
|
|
|
- Total: 14
Other information
- Total: 14
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-Y, 5G0.75mm2, ORANGE GUMMILEDARE, 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040770 |
Yes
|
|
|
|
| NELCOFLEX-Y, 2x1.0mm2, ORANGE UGG, GUMMILEDARE, 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040780 |
Yes
|
|
|
|
| NELCOFLEX-Y, 12G0.5mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | NELCOFLEX-Y, 12G0.5MM2, GRÅ | 040805 |
Yes
|
|
|
| NELCOFLEX-Y, 7G0.75mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040812 |
Yes
|
|
|
|
| NELCOFLEX-Y, 18G0.75mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040817 |
Yes
|
|
|
|
| NELCOFLEX-Y, 25G0.75mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040820 |
Yes
|
|
|
|
| NELCOFLEX-Y, 7G1.0mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040824 |
Yes
|
|
|
|
| NELCOFLEX-Y, 18G1.0mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040829 |
Yes
|
|
|
|
| NELCOFLEX-Y, 4G1.5mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040831-1 |
Yes
|
|
|
|
| NELCOFLEX-Y, 3G0.75mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040962 |
Yes
|
|
|
|
| NELCOFLEX-Y, 5G0.75mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040965 |
Yes
|
|
|
|
| NELCOFLEX-Y, 25G1.5mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | NELCOFLEX-Y, 25G1.5MM2, PUR, LED:VIT SVARTNR.G/G | 040840 |
Yes
|
|
|
| NELCOFLEX-Y, 18G0.5mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040807 |
Yes
|
|
|
|
| NELCOFLEX-Y, 18G1.5mm2, GREY 500V, PUR, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-Y | 040839 |
Yes
|
|
|
- Total: 14
