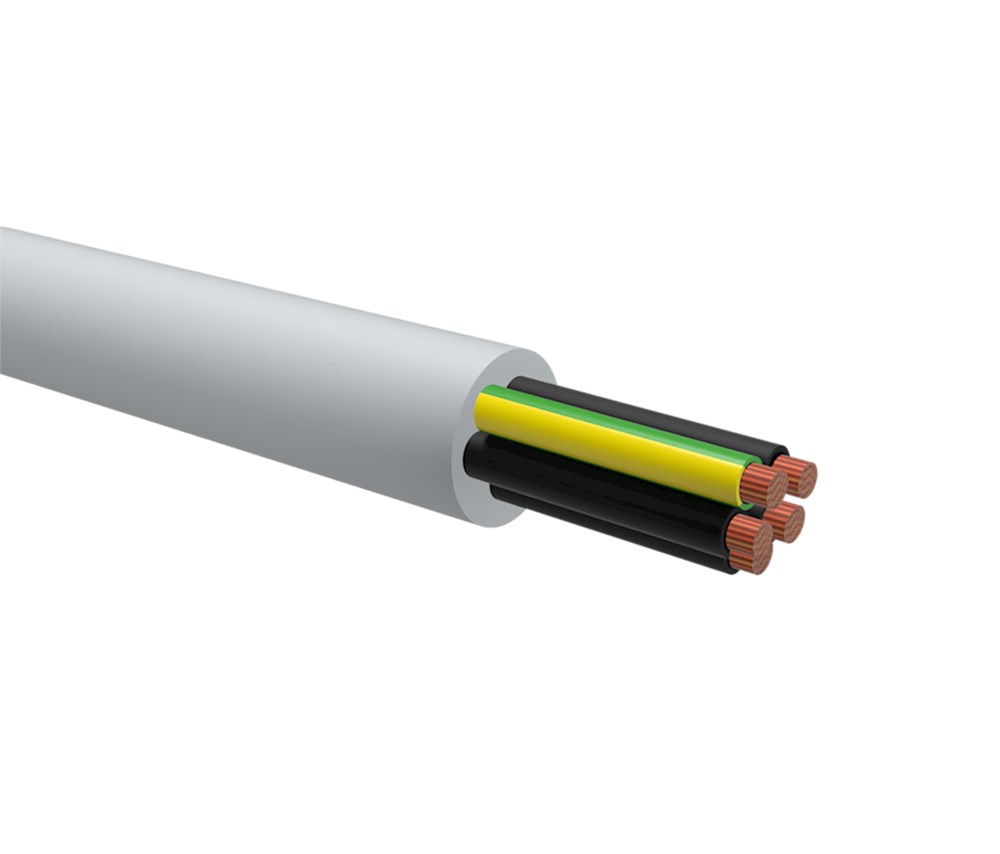

MULTINORM-Y
HAR/UL-CSA styrkablar är särskilt lämpliga för exportinriktad tillverkning av maskiner, anläggningar och utrustning; på grund av de internationella godkännandena kan dessa styrkablar nästan användas över hela världen. De installeras i torra och fuktiga rum med medelstor mekanisk påfrestning och som anslutningskablar för statiska och icke-kontinuerliga böjningsapplikationer. Dessa kablar är dessutom extremt flexibla och används därför för värme- och kylinstallationer men inte utomhus eller för direkt nedgrävning.
Produkten motsvarar direktivet 2014/35/EU (lågspänningsdirektivet).
Uppbyggnad
Ledare: Blank flertrådig koppar class 5
Ledarisolation: Pvc
Ledarfärg: Svart med vit nummermärkning. Gröngul skyddsledare
Yttermantel: Pvc
Mantelfärg: Grå
Teknisk data:
Driftspänning: 300/500 V
Provspänning: 3000 V
Kabelarea: 0.5mm²-70mm²
Temp. område: Fast förläggning min/max: 5ºC till +70ºC
Temp. område: UL+CSA: 5ºC till +90ºC
Isolationsmotstånd: > 20 MΩ x km
Minsta böjradie: 12,5 x kabelns diameter
Godkännanden:
Cpr klass: Eca
Självsläckande och flamskyddsmedel enl. till IEC
60332-1; VW1; CSA FT1
Standard EN 50525-2-51 / VDE 0285-525-2-51; UL style
2517/2587 och CSA C22.2 nr. 210.2-M90 AWM I A/B II
A/B
Standard EN 50525-2-51 / VDE 0285-525-2-51; UL stil
2517/2587 och CSA C22.2 nr. 210.2-M90 AWM I A/B II
A/B
Godkännande: HAR: 300/500 V - 70 ° C | UL / CSA 600 V - 90 ° C
Technical properties
- Number of cores:
- 5 ., 3 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- Yes
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 32.4 mm, 33.2 mm, 40.4 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MULTINORM-Y, 5G0.75mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 0.75 mm² | 500 . | 8.1 mm | 32.4 mm | 0.75 mm | m | 500 V |
No
|
|
|
| MULTINORM-Y, 3G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 1.5 mm² | 500 . | 8.3 mm | 33.2 mm | 1.5 mm | m | 500 V |
No
|
|
|
| MULTINORM-Y, 5G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 1.5 mm² | 500 . | 10.1 mm | 40.4 mm | 1.5 mm | m | 500 V |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to HAR | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MULTINORM-Y, 5G0.75mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No |
|
|
No
|
|
|
| MULTINORM-Y, 3G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No |
|
|
No
|
|
|
| MULTINORM-Y, 5G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | Yes | N/A | N/A | N/A | N/A | No | No | No | No |
|
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MULTINORM-Y, 5G0.75mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare | No | 32.4 mm |
No
|
|
|
| MULTINORM-Y, 3G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 3 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare | No | 33.2 mm |
No
|
|
|
| MULTINORM-Y, 5G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | 5 . | Polyvinyl chloride (PVC) | Other | Numbers | Yes | Polyvinyl chloride (PVC) | Other | Other | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | No | Class 5 = flexible | Grey | Polyvinyl chloride (PVC) | -40-70 °C | Several | Bare | No | 40.4 mm |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTINORM-Y, 5G0.75mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Multinorm-Y | ÖLFLEX 150 | 10175406 |
No
|
|
|
| MULTINORM-Y, 3G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Multinorm-Y | ÖLFLEX 150 | 10175906 |
No
|
|
|
| MULTINORM-Y, 5G1.5mm2, NM, GREY (H)05VV5-F, 500V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Multinorm-Y | ÖLFLEX 150 | 10176106 |
No
|
|
|
- Total: 3
