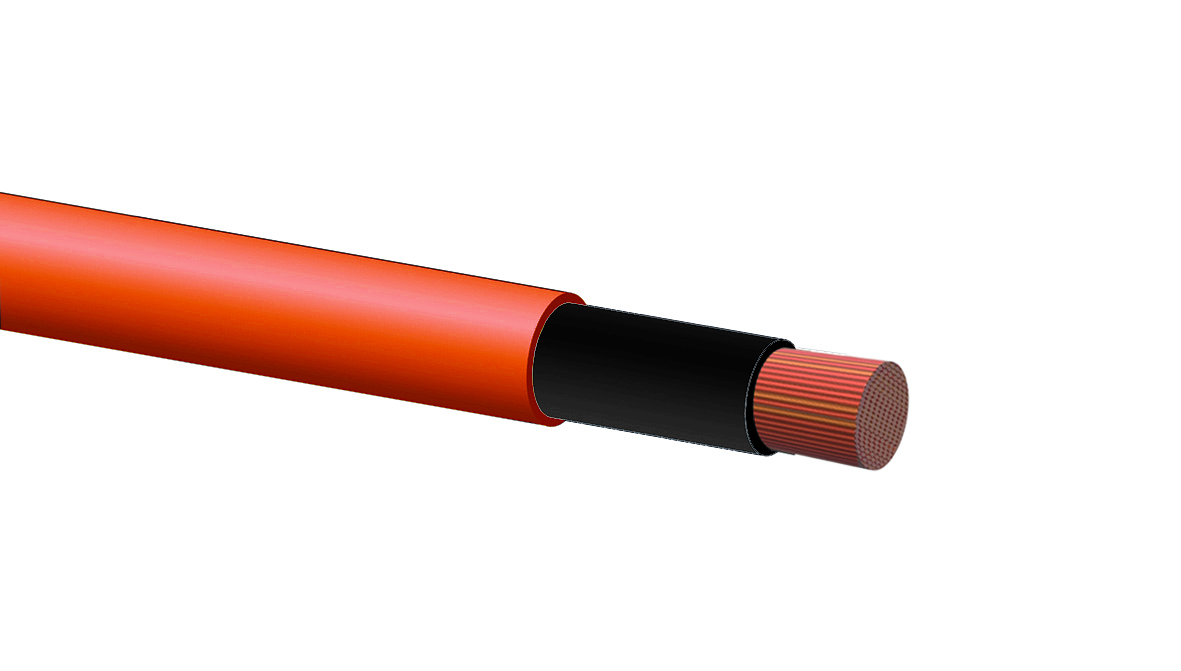

DOUFLEX
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packing: Coil
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheath color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x diameter of the cable
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Orange
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No, No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Orange(Black)
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Orange
- Conductor surface:
- Bare
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 58.4 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DOUFLEX, SVETSKABEL,35mm2, ORANGE (SVART), RING, DUBBELISOLERAD, 600V, PVC, 80C | 35 mm² | 100 . | 14.6 mm | 58.4 mm | 35 mm | m | 600 V |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DOUFLEX, SVETSKABEL,35mm2, ORANGE (SVART), RING, DUBBELISOLERAD, 600V, PVC, 80C | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Armouring/reinforcement | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DOUFLEX, SVETSKABEL,35mm2, ORANGE (SVART), RING, DUBBELISOLERAD, 600V, PVC, 80C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Orange | No | -30-70 °C | Copper | No | 70 °C | No | None | No | 600 V | No | Class 6 = very flexible | Double insulated | Orange(Black) | Polyvinyl chloride (PVC) | -40-80 °C | Orange | Bare | No | Ring | 58.4 mm |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| DOUFLEX, SVETSKABEL,35mm2, ORANGE (SVART), RING, DUBBELISOLERAD, 600V, PVC, 80C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Douflex | DOUFLEX, SVETSKABEL,35MM2, ORANGE (SVART) | 050013-1 |
Yes
|
|
|
- Total: 1
