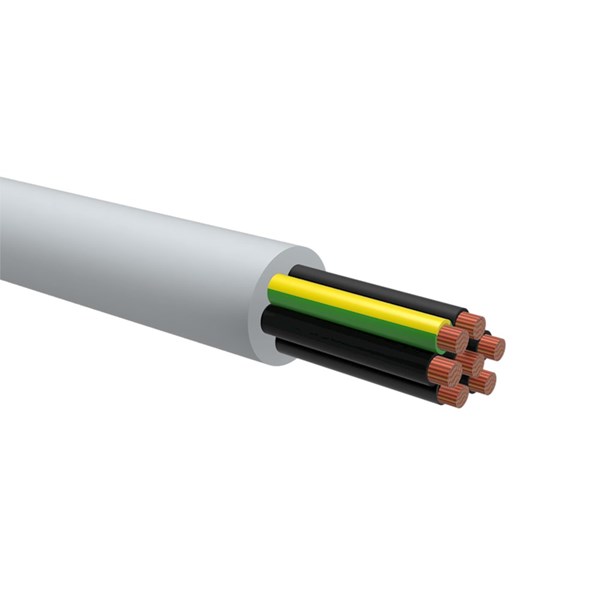

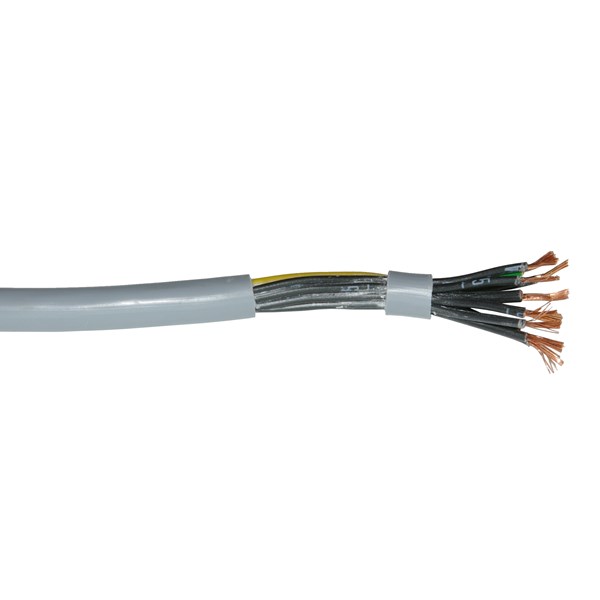

NELCOFLEX-H
Flexible oil resistant cable is resistant to the effects of chemicals and acids. The finely stranded structure in combination with PVC sheath provides a very flexible cable with a small bending radius.
It is used as command and control cable, and in industrial machinery, in cooling and ventilation as well as in computer and signal systems. Can be used in dry and wet areas.
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Black with white numbers mark. Green-yellow protective conductors
Outer Sheath: PVC
Sheath Colour: Grey
Technical data:
Rating voltage: 300/500 VTest voltage: 3000 V
Minimum bending radius: 6 x cable diameter
Temperature range:
Fixed min/max: -40ºC to +70ºC (-40ºF to +158ºF)
Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Best: 8 x 10 7 [/ sup] cJ / kg
Minimum bending radius: 6 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1Approvals: Meets Swedish and European standards asSS EN 60204
Technical properties
- Number of cores:
- 2 ., 3 ., 5 ., 7 ., 12 ., 18 ., 25 ., 8 ., 4 .
- Material core insulation:
- Other
- Specification core insulation:
- Other
- Core identification:
- Numbers
- Protective conductor:
- No, Yes
- Material outer sheath:
- Other
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- TPE
- Operating temperature:
- -40-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 21.2 mm, 22.4 mm, 27.2 mm, 29.6 mm, 39.2 mm, 48 mm, 56 mm, 29.2 mm, 36.8 mm, 51.6 mm, 25.6 mm, 33.2 mm, 40 mm, 44.8 mm, 35.6 mm
Show more
Item List
- Total: 19
- Total: 19
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 19
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-H-Y, 7G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 7.4 mm | 29.6 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 12G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 9.8 mm | 39.2 mm | 0.75 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 18G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 12 mm | 48 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 1 mm² | 500 . | 7.3 mm | 29.2 mm | 1 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 8G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 1 mm² | 5000 . | 9.2 mm | 36.8 mm | 1 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 18G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 1 mm² | 500 . | 12.9 mm | 51.6 mm | 1 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 4G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 1.5 mm² | 500 . | 7.4 mm | 29.6 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 1.5 mm² | 500 . | 8.3 mm | 33.2 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 1.5 mm² | 500 . | 9.2 mm | 36.8 mm | 1.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 3G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 2.5 mm² | 500 . | 8.3 mm | 33.2 mm | 2.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 2.5 mm² | 500 . | 10 mm | 40 mm | 2.5 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 2x0.75mm2, GREY UGG, 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 5.3 mm | 21.2 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 5.6 mm | 22.4 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 6.8 mm | 27.2 mm | 0.75 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 25G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 14 mm | 56 mm | 0.75 mm | m | 500 V |
No
|
|
|
| NELCOFLEX-H-Y, 2x1.5mm2, GREY 500V, TPE, POE, HF, 70C | 1.5 mm² | 500 . | 6.4 mm | 25.6 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 1.5 mm² | 500 . | 6.8 mm | 27.2 mm | 1.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 2.5 mm² | 500 . | 11.2 mm | 44.8 mm | 2.5 mm | m | 500 V |
Yes
|
|
|
| NELCOFLEX-H-Y, 8G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 0.75 mm² | 500 . | 8.9 mm | 35.6 mm | 0.75 mm | m | 500 V |
No
|
|
|
- Total: 19
Similar Options
Approvals
- Total: 19
| Product Description | Approved according to SS EN 60204 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-H-Y, 7G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 12G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 18G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.0mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 8G1.0mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 18G1.0mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 4G1.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G1.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 3G2.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G2.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 2x0.75mm2, GREY UGG, 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 25G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| NELCOFLEX-H-Y, 2x1.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G1.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G2.5mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| NELCOFLEX-H-Y, 8G0.75mm2, GREY 500V, TPE, POE, HF, 70C | Yes | Dca | N/A | N/A | N/A | Yes | No | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 19
Technical Properties
- Total: 19
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-H-Y, 7G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 7 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 29.6 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 12G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 12 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 39.2 mm |
No
|
|
|
| NELCOFLEX-H-Y, 18G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 18 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 48 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 5 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 29.2 mm |
No
|
|
|
| NELCOFLEX-H-Y, 8G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 8 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 36.8 mm |
No
|
|
|
| NELCOFLEX-H-Y, 18G1.0mm2, GREY 500V, TPE, POE, HF, 70C | 18 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 51.6 mm |
No
|
|
|
| NELCOFLEX-H-Y, 4G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 4 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 29.6 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 5 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 33.2 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 7 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 36.8 mm |
No
|
|
|
| NELCOFLEX-H-Y, 3G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 3 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 33.2 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 5 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 40 mm |
No
|
|
|
| NELCOFLEX-H-Y, 2x0.75mm2, GREY UGG, 500V, TPE, POE, HF, 70C | 2 . | Other | Other | Numbers | No | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 21.2 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 3 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 22.4 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 5 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 27.2 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 25G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 25 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 56 mm |
No
|
|
|
| NELCOFLEX-H-Y, 2x1.5mm2, GREY 500V, TPE, POE, HF, 70C | 2 . | Other | Other | Numbers | No | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 25.6 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G1.5mm2, GREY 500V, TPE, POE, HF, 70C | 3 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 27.2 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G2.5mm2, GREY 500V, TPE, POE, HF, 70C | 7 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 44.8 mm |
Yes
|
|
|
| NELCOFLEX-H-Y, 8G0.75mm2, GREY 500V, TPE, POE, HF, 70C | 8 . | Other | Other | Numbers | Yes | Other | Other | Other | According to IEC/EN 60332-1-2 | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 500 V | Yes | Class 5 = flexible | Grey | TPE | -40-70 °C | Several | Bare | Yes | 35.6 mm |
No
|
|
|
- Total: 19
Other information
- Total: 19
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| NELCOFLEX-H-Y, 7G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040056-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 12G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040060-H |
No
|
|
|
| NELCOFLEX-H-Y, 18G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040062-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.0mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040103-H |
No
|
|
|
| NELCOFLEX-H-Y, 8G1.0mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040105-H |
No
|
|
|
| NELCOFLEX-H-Y, 18G1.0mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040112-H |
No
|
|
|
| NELCOFLEX-H-Y, 4G1.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040202-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G1.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040203-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G1.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040205-H |
No
|
|
|
| NELCOFLEX-H-Y, 3G2.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040251-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G2.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040253-H |
No
|
|
|
| NELCOFLEX-H-Y, 2x0.75mm2, GREY UGG, 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040050-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040052-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 5G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040055-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 25G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040064-H |
No
|
|
|
| NELCOFLEX-H-Y, 2x1.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040200-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 3G1.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040201-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 7G2.5mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040254-H |
Yes
|
|
|
| NELCOFLEX-H-Y, 8G0.75mm2, GREY 500V, TPE, POE, HF, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Nelcoflex-H-CY Multi conductor | 040057-H |
No
|
|
|
- Total: 19
