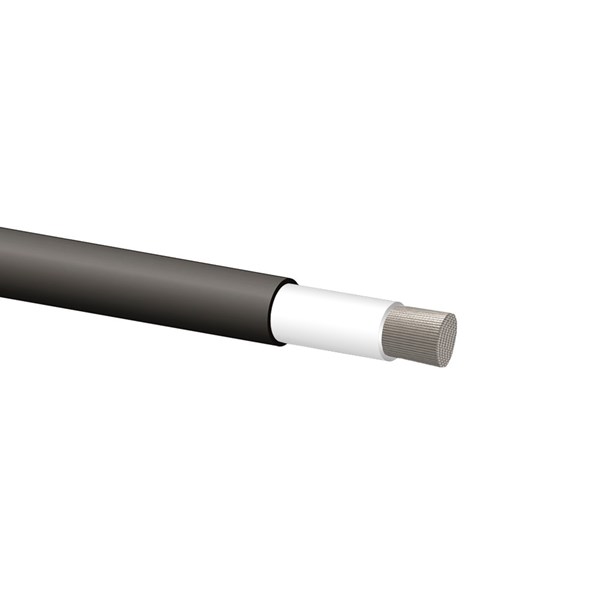

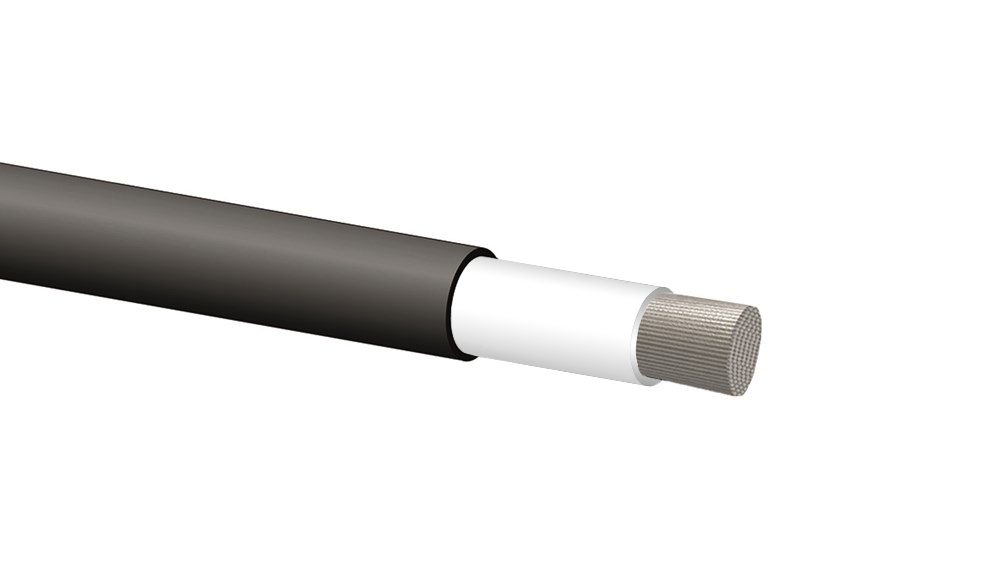

NSGAFÖU
Dubbelisolerad kopplingskabel i oljebeständigt och flamhämmande utförande. Har en inner- och yttermantel av special gummi vilket gör att den tål hög mekanisk belastning. Kortslutnings- och jordfelssäker upp till 1000 V. För installationer i bussar, tåg och i kopplingsskåp. Lämpar sig även för anslutning till rörliga enheter.
Märkspänning: Uo/ U1,8/3kV
Ledaruppbyggnad: Klass 5 = mångtrådig
Material Ledare: Förtent koppar
Ledarisolering: EPR gummi
Yttermantel: Specialgummi, polykloropren
Färg på yttermantel: Svart
Böj radie fast förläggning: 6 x kabeldiametern
Böj radie rörlig förläggning: 10 x kabeldiametern
Min temperatur fast förläggning: -40°C
Max temperatur fast förläggning +80°C
Min temperatur rörlig förläggning: -25°C
Max temperatur rörlig förläggning: +80°C
Provspänning: 6000V
Isolationsresistans: ≥20 M Ohm x km
Max temperatur ledare: +90°C
Brandspridningsklass: IEC 60332-1
Tillverkningsnorm: VDE 0295, IEC 60228
Godkännande. VDE 0250 Part 602
Technical properties
- Number of cores:
- 1 .
- Nominal voltage:
- 1800 V
- Colour:
- Black
- Material insulation:
- Neopren (CR)
- Operating temperature:
- -40-80 °C
- Conductor surface:
- Tinned
- Halogen free:
- No
- Packaging:
- Reel B5
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 6
| Product Description | Nominal cross section conductor | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|
| NSGAFÖU, 6.0mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 6 mm² | 100 . | m | 1800 V |
Yes
|
|
|
| NSGAFÖU, 10mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 10 mm² | 100 . | m | 1800 V |
Yes
|
|
|
| NSGAFÖU, 16mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 16 mm² | 100 . | m | 1800 V |
Yes
|
|
|
| NSGAFÖU, 25mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 25 mm² | 100 . | m | 1800 V |
Yes
|
|
|
| NSGAFÖU, 35mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 35 mm² | 100 . | m | 1800 V |
Yes
|
|
|
| NSGAFÖU, 50mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 50 mm² | 100 . | m | 1800 V |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
- Total: 6
Technical Properties
- Total: 6
| Product Description | Number of cores | Nominal voltage | Colour | Material insulation | Operating temperature | Conductor surface | Halogen free | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| NSGAFÖU, 6.0mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
Yes
|
|
|
| NSGAFÖU, 10mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
Yes
|
|
|
| NSGAFÖU, 16mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
Yes
|
|
|
| NSGAFÖU, 25mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
Yes
|
|
|
| NSGAFÖU, 35mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
Yes
|
|
|
| NSGAFÖU, 50mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | 1 . | 1800 V | Black | Neopren (CR) | -40-80 °C | Tinned | No | Reel B5 |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| NSGAFÖU, 6.0mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013204 |
Yes
|
|
|
| NSGAFÖU, 10mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013205 |
Yes
|
|
|
| NSGAFÖU, 16mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013206 |
Yes
|
|
|
| NSGAFÖU, 25mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013207 |
Yes
|
|
|
| NSGAFÖU, 35mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013208 |
Yes
|
|
|
| NSGAFÖU, 50mm2, BLACK SPOOL B5, 1800V, NEOPREN, FT, 80C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - NSGAFÖU | 013209 |
No
|
|
|
