RK BOX


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Colour:
Green/yellow
Material insulation:
Polyvinyl chloride (PVC)
Designations:
H07V-K (RK 1.5 - 400mm2)
Operating temperature:
-5-70 °C
Core colour:
Green/yellow
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
15.2 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (2)

TX UL 3746


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-105 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
105 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
300 V
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Colour:
Black, Green, Grey, Orange, Yellow, Brown, Red, White, Blue, Purple
Material insulation:
XLPE
Operating temperature:
-40-105 °C
Core colour:
Blue, Brown, Yellow, Grey, Green, Purple, Orange, Red, Black, White
Conductor surface:
Tinned
Halogen free:
Yes
Packaging:
Reel B5
Min. permitted bending radius, stationary application/permanent installation:
4.05-6.42 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
Yes
Yes
.
Show filter/search products (50)

DINFLEX-Y (LiYY) - Korta längder


NEMIQ
Number of cores:
2-37 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
Yes, No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Black, Grey
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-30-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
16-64.5 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (43)

RKUB Förtent Single conductor - Coil


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Red, Black
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
60 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Colour:
Black, Red
Operating temperature:
-25-70 °C
Core colour:
Red, Black
Conductor surface:
Tinned
Packaging:
Ring
Min. permitted bending radius, stationary application/permanent installation:
10-16.4 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (14)

NELCOFLEX-CY (EMC) - Korta längder


NEMIQ
Number of cores:
2-50 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Numbers
Protective conductor:
Yes, No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Transparent
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
31.6-105.6 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (21)

NELCOFLEX-H


NEMIQ
Number of cores:
2-25 .
Material core insulation:
Other
Specification core insulation:
Other
Core identification:
Numbers
Protective conductor:
Yes, No
Material outer sheath:
Other
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Colour:
Grey
Material insulation:
TPE
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
Yes
Min. permitted bending radius, stationary application/permanent installation:
21.2-56 mm
Reaction-to-fire according to EN 13501-6: Class:
Dca
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (19)

SIF


NEMIQ -
Number of cores:
1 .
Material core insulation:
Rubber
Specification core insulation:
Rubber - silicone rubber (SIR)
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Brown, Yellow, Grey, Green, Red, Black, White, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-60-185 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
185 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
Yes
Conductor category:
Class 6 = very flexible
Single insulated/Double insulated:
Single insulated
Colour:
Black, Green, Grey, Yellow, Green/yellow, Brown, Red, White, Blue
Material insulation:
Silicone
Operating temperature:
-40-185 °C
Core colour:
Blue, Brown, Yellow, Grey, Green, Green/yellow, Red, Black, White
Conductor surface:
Tinned
Halogen free:
Yes
Packaging:
Ring
Min. permitted bending radius, stationary application/permanent installation:
7.5-19.2 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (61)

NELCOFLEX-CY (EMC) - Trumma


NEMIQ
Number of cores:
2-25 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Numbers
Protective conductor:
Yes, No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Transparent
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
30.4-153.2 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (32)

R3 1-color - Spool


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Purple, Pink, Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-125 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
125 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Core colour:
Blue, Brown, Yellow, Grey, Green, Purple, Orange, Pink, Red, Black, White, Several
Conductor surface:
Bare
Min. permitted bending radius, stationary application/permanent installation:
3.6-34.5 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (77)

R3 2-colors - Spool


NEMIQ
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-125 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
125 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated
Core colour:
Several
Conductor surface:
Bare
Min. permitted bending radius, stationary application/permanent installation:
4.8-9.9 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (46)

NELCOFLEX-Y


NEMIQ
Number of cores:
2-50 .
Material core insulation:
Polyvinyl chloride (PVC)
Specification core insulation:
Other
Core identification:
Colour, Numbers
Protective conductor:
Yes, No
Material outer sheath:
Polyvinyl chloride (PVC)
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-30-70 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
70 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
500-1000 V
Halogen free:
No
Conductor category:
Class 5 = flexible
Colour:
Grey
Material insulation:
Polyvinyl chloride (PVC)
Operating temperature:
-40-70 °C
Core colour:
Several
Conductor surface:
Bare
Halogen free:
No
Min. permitted bending radius, stationary application/permanent installation:
19.6-164.8 mm
Reaction-to-fire according to EN 13501-6: Class:
Eca
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (125)

RADOX 125B Multi conductor screened


Huber+Suhner
Number of cores:
2-12 .
Protective conductor:
No
Material outer sheath:
None
Colour outer sheath:
Black
Flame retardant:
According to IEC/EN 60332-1-2
Conductor material:
Copper
Screen:
Yes
Drain wire:
No
Nominal voltage:
1000 V
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-125 °C
Conductor surface:
Tinned
Halogen free:
Yes
Reaction-to-fire according to EN 13501-6: Class:
Eca
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
.
Show filter/search products (14)

RADOX TENUIS -TW 600V MM


Huber+Suhner
Number of cores:
2-12 .
Colour outer sheath:
Black
Nominal voltage:
1000 V
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Conductor surface:
Tinned
Halogen free:
Yes
.
Show filter/search products (13)

RADOX MARIN MFH-S B


Huber+Suhner
Number of cores:
3 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyolefin
Specification material outer sheath:
Other
Colour outer sheath:
Other
Permitted cable outer temperature after assembling without vibration:
-40-120 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
120 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Double insulated
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Core colour:
Several
Conductor surface:
Tinned
Halogen free:
Yes
Min. permitted bending radius, stationary application/permanent installation:
17.25 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
Yes
.
Show filter/search products (1)

RADOX MARIN MFH-S B, Twisted pair


Huber+Suhner
Number of cores:
8-28 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyolefin
Specification material outer sheath:
Other
Colour outer sheath:
Other
Permitted cable outer temperature after assembling without vibration:
-40-120 °C
Conductor material:
Copper
Twisted cores:
Yes
Max. conductor temperature:
120 °C
Screen:
Yes
Protective barrier:
N/A
Armouring/reinforcement:
Braiding
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Double insulated
Colour:
Black
Core colour:
Several
Conductor surface:
Tinned
Halogen free:
Yes
Min. permitted bending radius, stationary application/permanent installation:
31.5-42.3 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (2)

RADOX AUTOL 155 TAPE


Huber+Suhner
Colour outer sheath:
Red
Single insulated/Double insulated:
Single insulated
Colour:
Red
Halogen free:
Yes
.
Show filter/search products (1)

Microwavecable assemblies


Huber+Suhner
.
Show filter/search products (4)

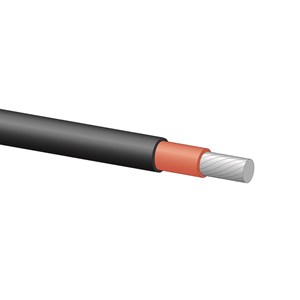

RADOX 9 GKW-AX 3600/6000 V - Single conductor


Huber+Suhner
Number of cores:
1 .
Colour outer sheath:
Black
Nominal voltage:
3600 V
Single insulated/Double insulated:
Double insulated
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Conductor surface:
Bare
Halogen free:
Yes
Packaging:
Spool HS401
Low smoke (according to EN 61034-2):
Yes
.
Show filter/search products (11)

RADOX TENUIS -TW 600V MM S


Huber+Suhner
Number of cores:
2-6 .
Colour outer sheath:
Black
Nominal voltage:
1000 V
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Conductor surface:
Tinned
Halogen free:
Yes
.
Show filter/search products (15)

RADOX AUTO B FLEX - Single conductor


Huber+Suhner
Colour outer sheath:
Orange
Colour:
Orange
Halogen free:
Yes
.
Show filter/search products (1)

MICROWAVE HAND FORMABLE


Huber+Suhner
Colour outer sheath:
Red
Colour:
Red
Halogen free:
Yes
.
Show filter/search products (2)

RADOX AUTOL 155S FLR-A


Huber+Suhner
Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Brown, Green, Orange, Red, Black, White
Flame retardant:
No
Permitted cable outer temperature after assembling without vibration:
-40-155 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
155 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
Yes, No
Conductor category:
Class 5 = flexible
Single insulated/Double insulated:
Single insulated, Double insulated
Colour:
Black, Green, Orange, Brown, Red, White, Blue
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-155 °C
Core colour:
Blue, Brown, Green, Orange, Red, Black, White
Conductor surface:
Tinned
Halogen free:
Yes, No
Packaging:
CK2
Min. permitted bending radius, stationary application/permanent installation:
4.5-6.9 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
No
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (16)

EN-Cable, multi conductor


Huber+Suhner
Number of cores:
2-3 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
No
Material outer sheath:
Polyolefin
Specification material outer sheath:
Other
Colour outer sheath:
Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-125 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
125 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Colour:
Black
Core colour:
Several
Conductor surface:
Tinned
Halogen free:
Yes
Min. permitted bending radius, stationary application/permanent installation:
24.9-26.7 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (4)

RADOX 3 GKW/S EMC


Huber+Suhner
Number of cores:
3-8 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
Colour
Protective conductor:
Yes, No
Material outer sheath:
Polyolefin
Specification material outer sheath:
Other
Colour outer sheath:
Black, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-120 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
120 °C
Screen:
Yes, No
Protective barrier:
N/A
Armouring/reinforcement:
Braiding, None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
Yes
Conductor category:
Class 5 = flexible
Colour:
Black
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Core colour:
Several
Conductor surface:
Tinned
Halogen free:
Yes
Min. permitted bending radius, stationary application/permanent installation:
48.6-240.24 mm
Reaction-to-fire according to EN 13501-6: Class:
N/A
Reaction-to-fire according to EN 13501-6: Smoke production:
N/A
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
N/A
Reaction-to-fire according to EN 13501-6: Acidity:
N/A
Low smoke (according to EN 61034-2):
Yes
Low temperature resistant (according to EN 60811-504+505+506):
No
Oil resistant according to EN IEC 60811-404:
No
.
Show filter/search products (10)

Nelco Contact AB

Daléns gata 7

195 61 Arlandastad

Sweden



TEL: +46 (0)8 754 70 40

MAIL: order@nelco.se

Product Categories

Connectors

Installation Material

Connection & Completion

Cable

Tools & Machines

Linecard

About Nelco

About us

Values

Quality & Environment

GDPR

Contact

Delivery Terms

Returns

Contact us

FAQ



News

Corporate news

Fairs & exhibitions

Career

Social

LinkedIn

facebook

Instagram

Newsletter

We are using Cookies to give you a superior user experience. If you want to find out more about cookies and how we use them, please go to our cookie page. Further browsing of this site indicates that you accept our cookie policy.
Accept
