NS 4652 SK

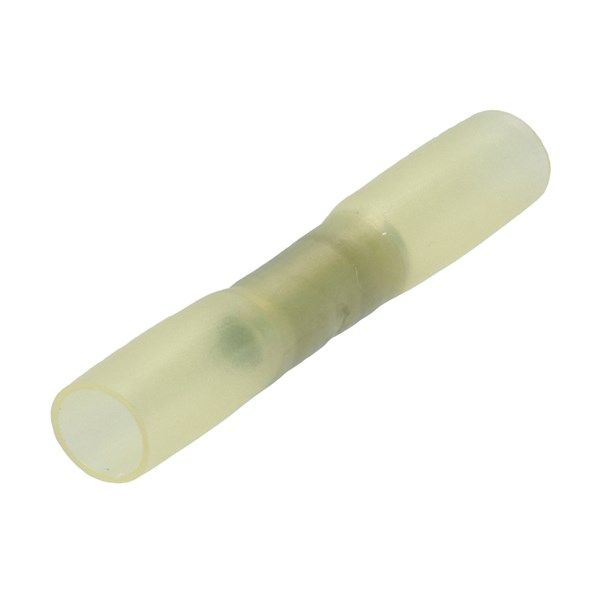

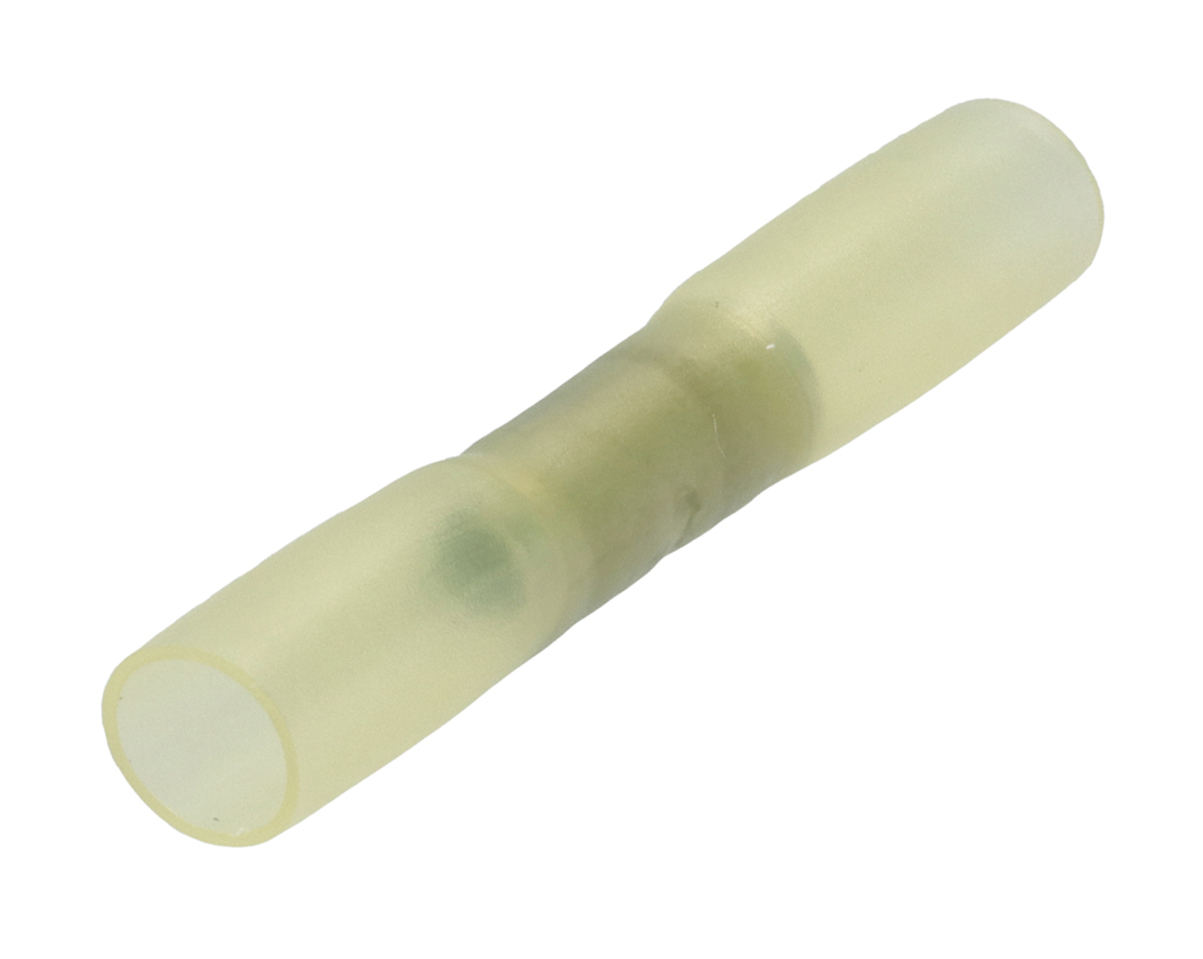

SHRINK INSULATED BUTT SPLICE YELLOW, 42mm
NS 4652 SK
- Availability:
-
Yes
- Total: 1
Related items
Heat Shrink Butt NS-series
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabrication
Marine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: High Density Polyolefin with Polyamid (PA) meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Total: 1
E0812662
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Standard version |
| Number of branches | 0 N/A |
| Insulation | Shrink insulation PE |
| Colour insulation | Yellow |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 600 V |
| Type of connection | Parallel connector |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Operating temperature | -40-105 °C |
| Material | Copper |
| Voltage max | 600V |
| Packaging | Loose piece |
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 2.63-6.64 mm² |
Logistics
| Barcode | 733117611420 |
|---|---|
| Country of origin | JP |
| E-no | E0812662 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | NS 4652 SK |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Heat-Shrink Sealable Crimp Splice |
| Search Description | NICHIFU, SB-1210, EFO2024V |
| Alternative SKU | NS4652SK |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
