NCX MC4

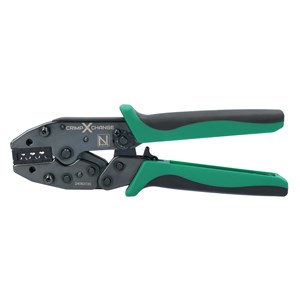

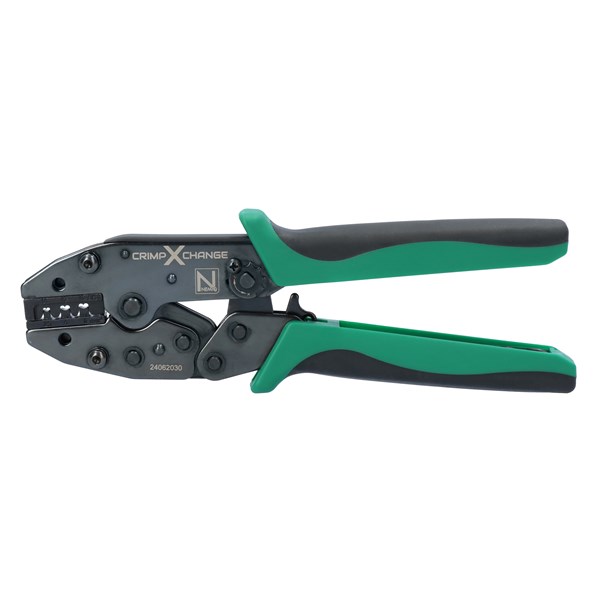

CRIMP TOOL SOLAR CELL CONNECTORS MC4 2.5-6mm2(AWG14-10)
NCX MC4
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool - CrimpXChange
High quality crimping tool. CrimpXchange is available in several combinations with a frame equipped with crimping dies from the NCXD / DHD / DRG series. Two more pairs of NCXD crimping dies can be stored in the handles. Exchange of crimping dies is quick and easy with the release buttons on the front of the tool, no other tools are needed. CrimpXchange is a ratchet crimping tool which ensures that thecrimping is completed. Equipped with ergonomic handles.
Length: 235 mm.
Choose between buying the frame and combine the crimping dies of your choice or buying one of our ready-made concepts.
Available in several ready-made alternatives equipped with 1 set of dies for crimping of:
- Deutsch- Insulated terminals.- End sleeves- Heatshrink insulated butt splices- Uninsulated terminals with open barrel (roller compaction)- Uninsulated copper tube splices and cable lugs (KST/KRT/KSF/KRF)
- Total: 1
Pressverktyg för solcellskontakter bestyckad med pressback MC4. Förvaring i handtaget för upp till 2 extra backpar av typ MC 3 och NCDX.
Längd: 235 mm
E1665233
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | Yes |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Ratchet model mechanical |
| For component | Solar cell connectors |
| Compression shape | Roll compression (shrinking) |
Dimensions
| Cross section | 2.5-6 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 235 mm |
Logistics
| Barcode | 733117614110 |
|---|---|
| Country of origin | TW |
| E-no | E1665233 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | NCX MC4 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | SCK2023 |
| Alternative SKU | NCXMC4 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
