360 view
NCX IEUT

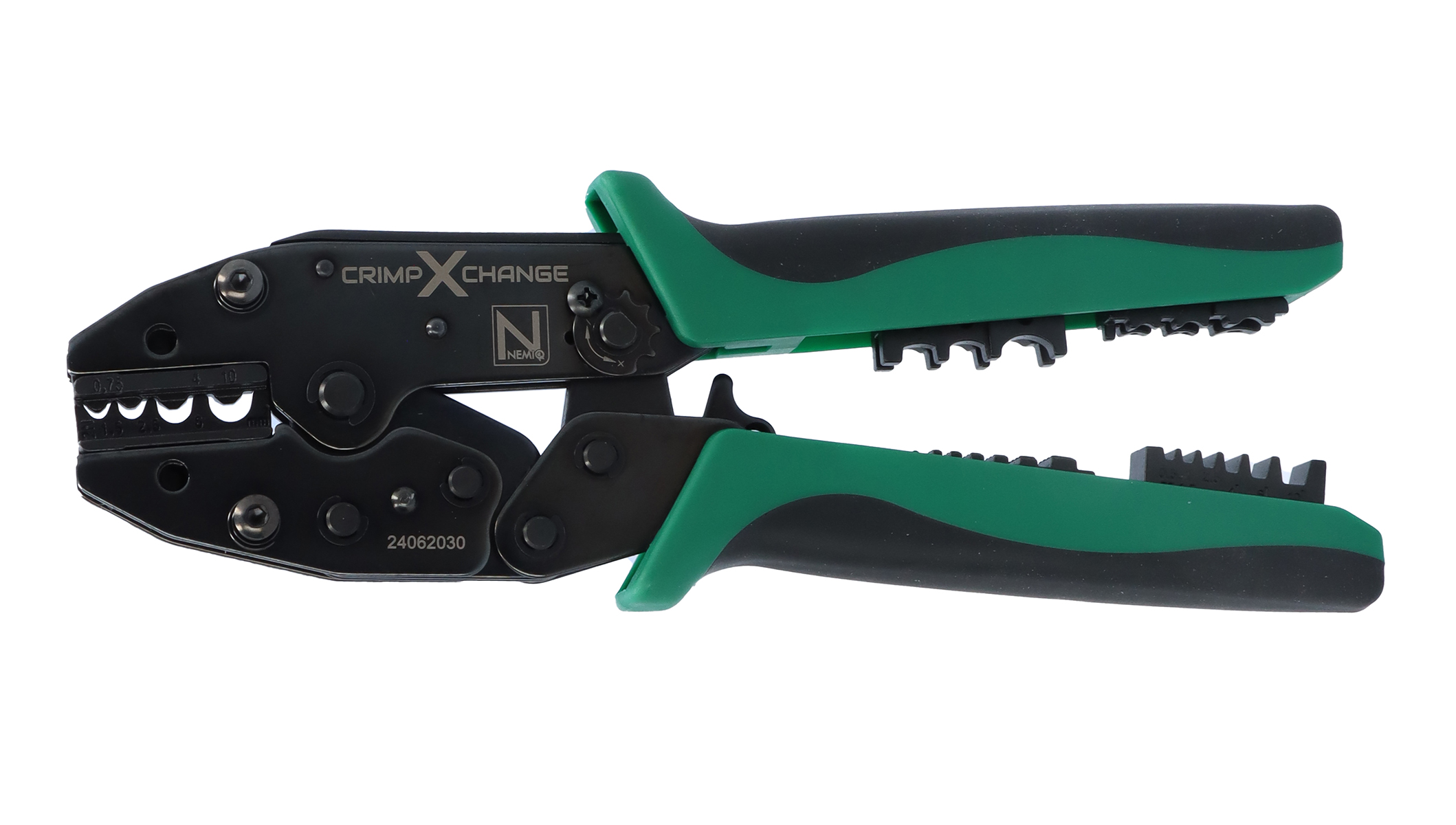

CRIMP TOOL ELECTRIC, 3 CRIMP DIES INSULATED TERMINALS,END-SLEEVES&UNINSULATED KR/KRT
NCX IEUT
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool - CrimpXChange
High quality crimping tool. CrimpXchange is available in several combinations with a frame equipped with crimping dies from the NCXD / DHD / DRG series. Two more pairs of NCXD crimping dies can be stored in the handles. Exchange of crimping dies is quick and easy with the release buttons on the front of the tool, no other tools are needed. CrimpXchange is a ratchet crimping tool which ensures that thecrimping is completed. Equipped with ergonomic handles.
Length: 235 mm.
Choose between buying the frame and combine the crimping dies of your choice or buying one of our ready-made concepts.
Available in several ready-made alternatives equipped with 1 set of dies for crimping of:
- Deutsch- Insulated terminals.- End sleeves- Heatshrink insulated butt splices- Uninsulated terminals with open barrel (roller compaction)- Uninsulated copper tube splices and cable lugs (KST/KRT/KSF/KRF)
- Total: 1
CrimpXChange Electric är bestyckad med 3 uppsättningar pressbackar för de vanligaste kontaktpressningarna.
Levereras med följande pressbackar:
NCXD I0560 - för isolerade kabelskor
NCXD E0510 - för ändhylsor
NCXD UT0510 - för oisolerade kabelskor och rörkabelskor (KST/KRT)
Längd: 235 mm
E1665415
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | Yes |
| Number of included inserts | 3 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Various applications |
| Construction/operation | Mechanical |
| For component | Insulated terminals |
| Compression shape | Universal (exchangeable inserts) |
Dimensions
| Cross section | 0.5-10 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 235 mm |
Logistics
| Barcode | 733117630539 |
|---|---|
| Country of origin | TW |
| E-no | E1665415 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | NCX IEUT |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG ELECTRIC, 3 BACKAR ENR2023V |
| Alternative SKU | NCXIEUT |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
