360 view
NCX RAM

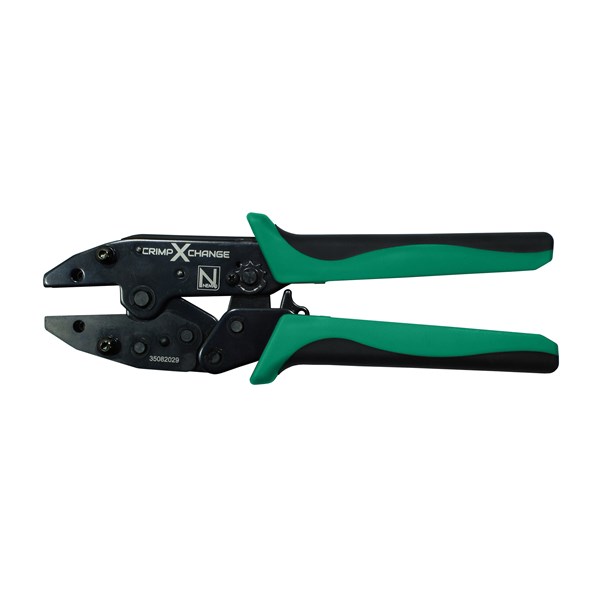

CRIMP TOOL, FRAME FOR NCXD, DHD & DRG CRIMPING DIES
NCX RAM
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool - CrimpXChange
High quality crimping tool. CrimpXchange is available in several combinations with a frame equipped with crimping dies from the NCXD / DHD / DRG series. Two more pairs of NCXD crimping dies can be stored in the handles. Exchange of crimping dies is quick and easy with the release buttons on the front of the tool, no other tools are needed. CrimpXchange is a ratchet crimping tool which ensures that thecrimping is completed. Equipped with ergonomic handles.
Length: 235 mm.
Choose between buying the frame and combine the crimping dies of your choice or buying one of our ready-made concepts.
Available in several ready-made alternatives equipped with 1 set of dies for crimping of:
- Deutsch- Insulated terminals.- End sleeves- Heatshrink insulated butt splices- Uninsulated terminals with open barrel (roller compaction)- Uninsulated copper tube splices and cable lugs (KST/KRT/KSF/KRF)
- Total: 1
E1665317
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | Yes |
| Number of included inserts | 0 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Various applications |
| Construction/operation | Mechanical |
| For component | Insulated terminals |
| Compression shape | Universal (exchangeable inserts) |
Dimensions
| Cross section | 0.1-35 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 235 mm |
Logistics
| Barcode | 733117614322 |
|---|---|
| Country of origin | TW |
| E-no | E1665317 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | NCX RAM |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG RAM ENR2023V |
| Alternative SKU | NCXRAM |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
- Total: 12
- Total: 12
Spare Parts
Product video
Documents
Generate Datasheet:
