DTM 0521

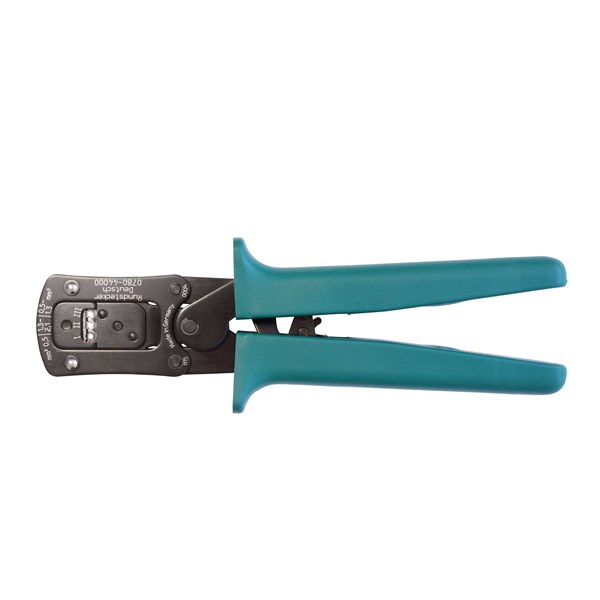

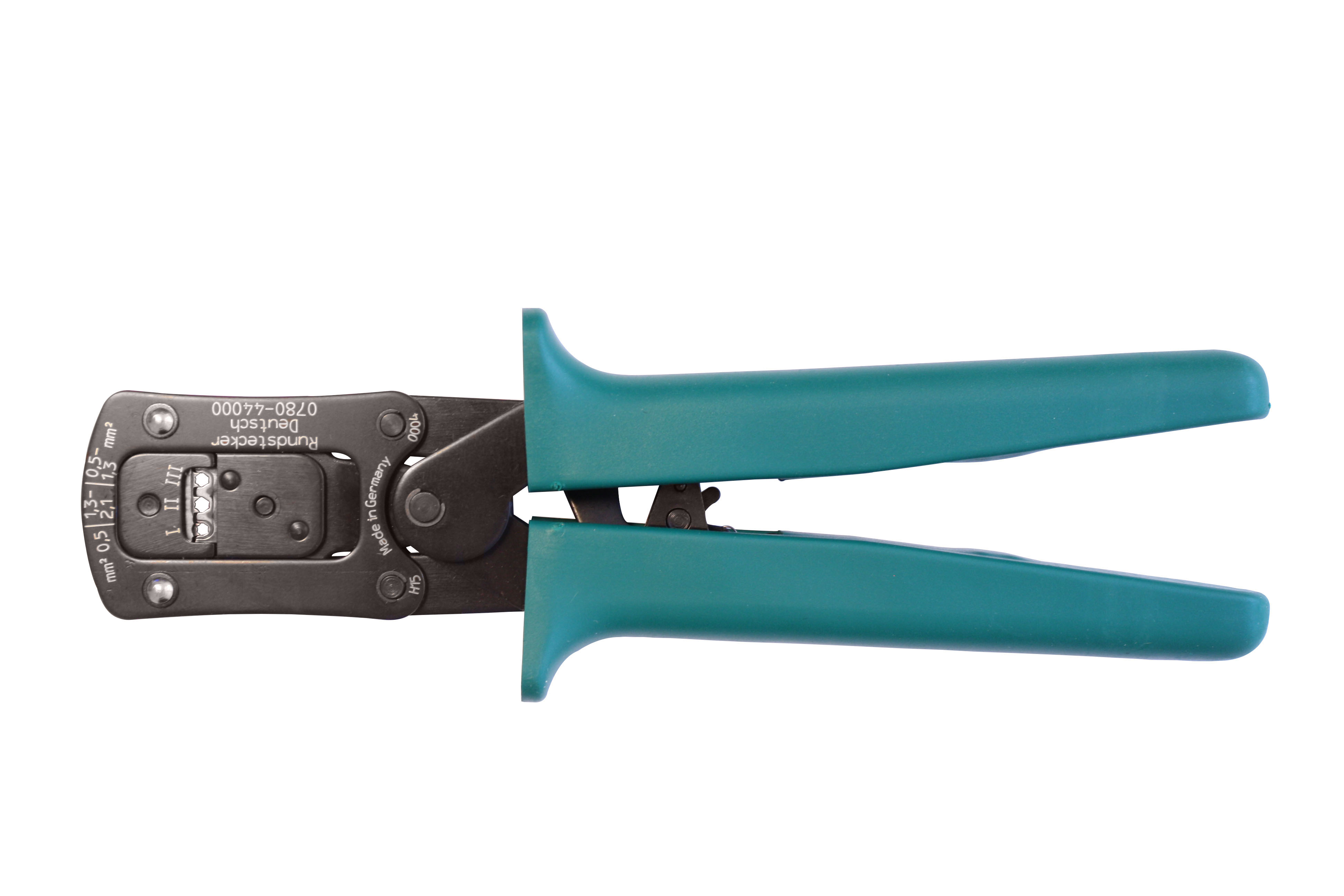

CRIMP TOOL DEUTSCH, DT, DTM TURNED CONTACT SIZE 16, 20, 0.5-2.1mm2. CSV10-DIE
DTM 0521
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool – CSV10
Pressverktyg där CVS10-huvudet även kan användas i WDT UP35 och UP60.
En ratchetttång som säkerställer att pressningen fullföljs.
- Total: 1
Detta precisionsverktyg är till för Deutschkontakter.
Passar följande stift och hylsor:
0460-202-2031
0462-201-20141
0462-201-2031
0460-202-16141
0460-202-1631
0462-201-16141
0462-201-1631
0460-215-16141
0462-209-16141
För att täcka in alla storlekar, 0.5-2.1mm² finns det tre pressuttag i verktyget, vilket uttag som ska användas till respektive kontakt framgår av text på verktyget.
Längd: 195 mm
Product Properties
| Number of crimps | 1 |
|---|---|
| With locking device (for mechanical tools) | Yes |
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Turned contacts, Deutsch |
| Compression shape | Other |
Product video
Dimensions
| Cross section | 0.5-2.1 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 195 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117616000 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | DTM 0521 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (247 Subs. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN (US) | EAR99 |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG DEUTSCH, DT, DTM |
| Alternative SKU | DTM0521 |
