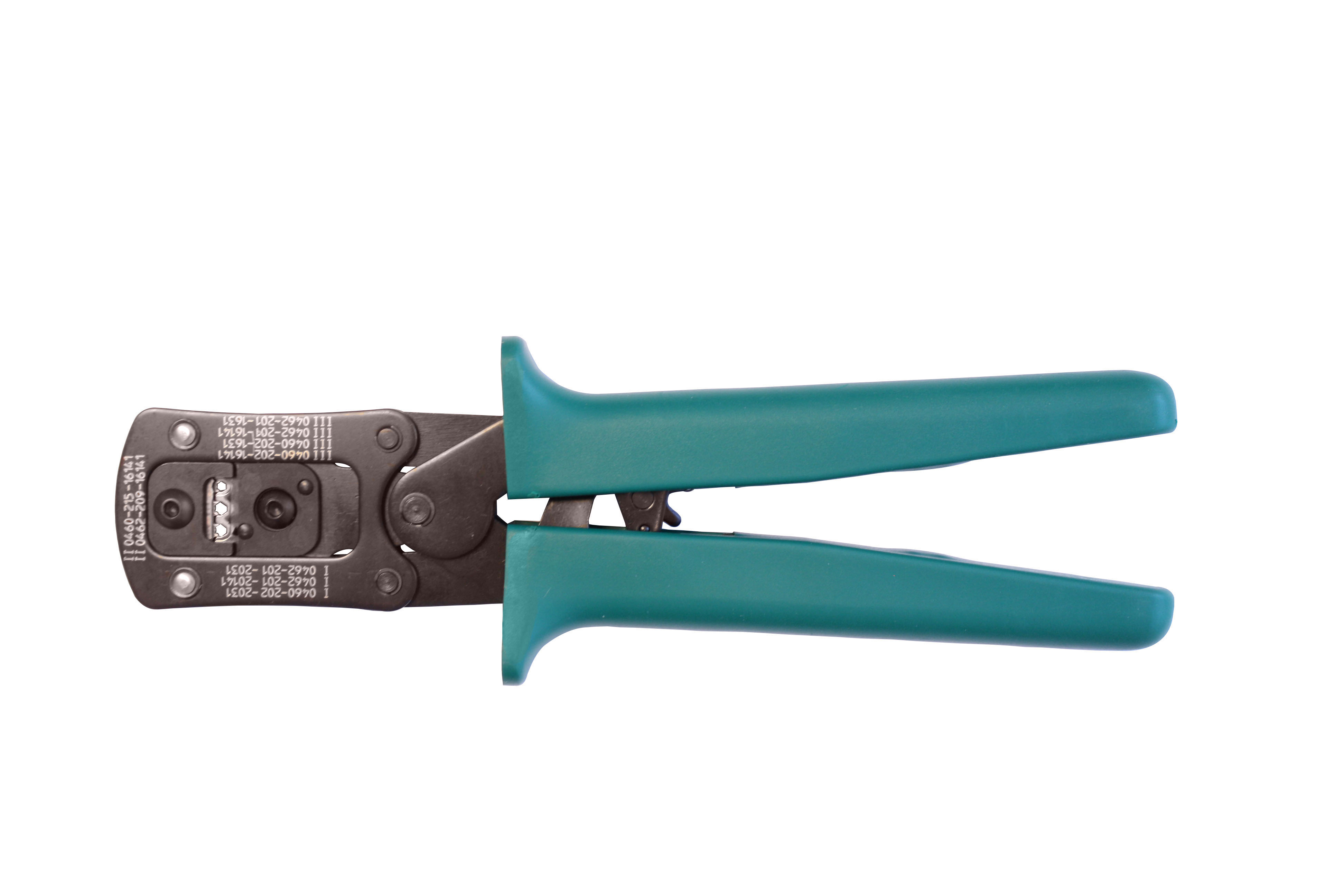

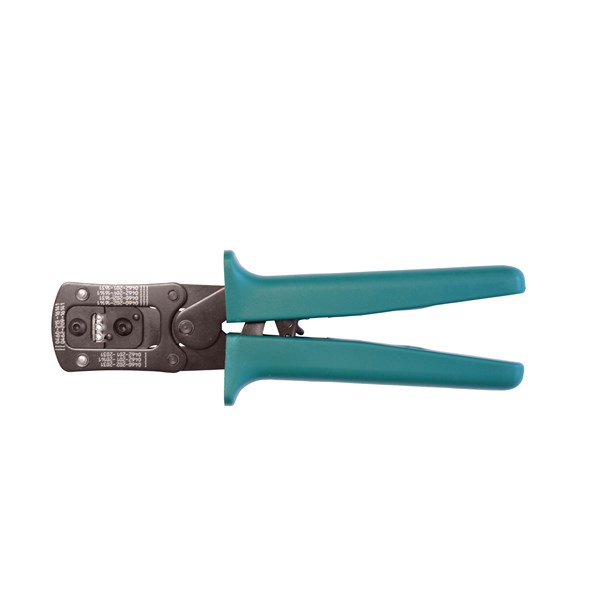

Crimp tool – CSV10
Pressverktyg där CVS10-huvudet även kan användas i WDT UP35 och UP60.
En ratchetttång som säkerställer att pressningen fullföljs.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Un-insulated flag terminal, Turned contacts, Deutsch
- Compression shape:
- Other, Roll compression (shrinking)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG OISOLERADE FLAGGKABELSKOR, 0.5-1.5mm2, FLB, CSV10-HUVUD | 0.5-1.5 mm² | 1 . | pcs | 200 mm |
Yes
|
|
|
| PRESSVERKTYG DEUTSCH, DT, DTM, TURNED CONTACT SIZE 16, 20, 0.5-2.1mm2. CSV10-BACK | 0.5-2.1 mm² | 1 . | pcs | 195 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG OISOLERADE FLAGGKABELSKOR, 0.5-1.5mm2, FLB, CSV10-HUVUD |
Yes
|
|
|
| PRESSVERKTYG DEUTSCH, DT, DTM, TURNED CONTACT SIZE 16, 20, 0.5-2.1mm2. CSV10-BACK |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG OISOLERADE FLAGGKABELSKOR, 0.5-1.5mm2, FLB, CSV10-HUVUD | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Un-insulated flag terminal | Roll compression (shrinking) |
Yes
|
|
|
| PRESSVERKTYG DEUTSCH, DT, DTM, TURNED CONTACT SIZE 16, 20, 0.5-2.1mm2. CSV10-BACK | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Turned contacts, Deutsch | Other |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG OISOLERADE FLAGGKABELSKOR, 0.5-1.5mm2, FLB, CSV10-HUVUD | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG OISOLERADE FLAGGKABELSKOR | 2671 |
Yes
|
|
|
| PRESSVERKTYG DEUTSCH, DT, DTM, TURNED CONTACT SIZE 16, 20, 0.5-2.1mm2. CSV10-BACK | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG DEUTSCH, DT, DTM | DTM0521 |
Yes
|
|
|
- Total: 2
