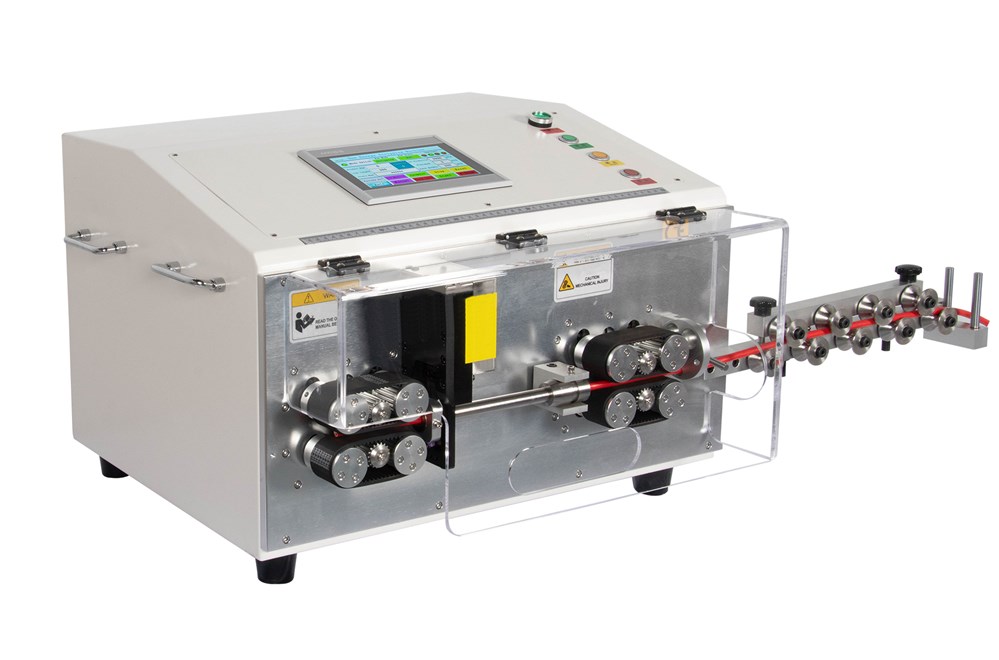

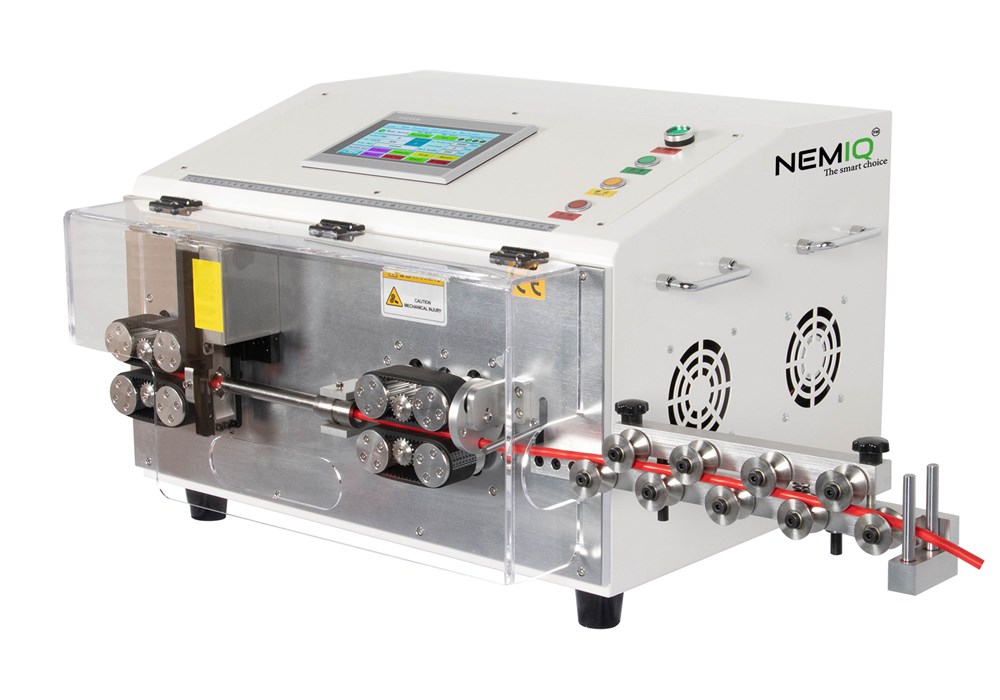

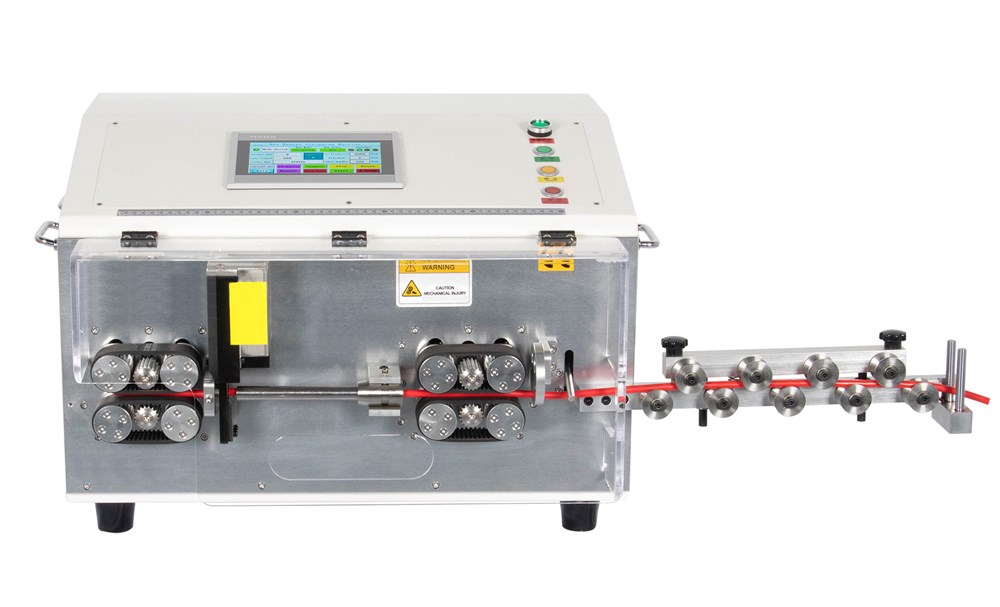

Wire cutting and stripping machine - NTCS 70
NTCS 70 is an electrically powered wire cutting and stripping machine designed for both solid and multi-stranded cables. It is engineered to process cables with cross-sections ranging from 1.5 to 70 mm², with an productivity of up to 2500 pieces per hour.
Technical data:
Stripping capability: 3-layer stripping for shield cable
Wire material: Wide range of industrial wires
Conductor cross-section: 1.5-70 mm²
Cutting length 1-100,000 mm
Cutting length tolerance: < 0.002*L
Stripping length (side 1): 0-400 mm
Stripping length (side II): 0-180 mm
Slitting function: Optional
Maximum guide tube diamete: 20 mm
Display mode: 7-inch touch screen
Memory capacity: 100 programs
Blade material: High speed steel
Productivity: 1500-2500 pcs./h
Power supply: 220-240V AC / 50Hz
Power: 800 W
Weight: 80 kg
Dimension: 700 x 640 x 480 mm
Technical properties
- Strip length adjustable:
- Yes
- Adjustable conductor cross section:
- 1.5-70 mm²
- Function:
- Skin
- Type of drive:
- Electrical
- Strip length:
- 0.1-250 mm
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
NTCS 70
Dimensions
- Total: 1
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KLIPP/SKAL MASKIN, 1.5-70mm2 | 640 mm | 700 mm | 480 mm | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | Strip length adjustable | Adjustable conductor cross section | Function | Type of drive | Strip length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KLIPP/SKAL MASKIN, 1.5-70mm2 | Yes | 1.5-70 mm² | Skin | Electrical | 0.1-250 mm |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KLIPP/SKAL MASKIN, 1.5-70mm2 | EC002778 - Stripping and crimping machine | 9.0 |
|
Cut- and Stipping Machines | SKH2023TOBIAS3 | NTCS70 |
No
|
|
|
- Total: 1
