KRTS 50-6

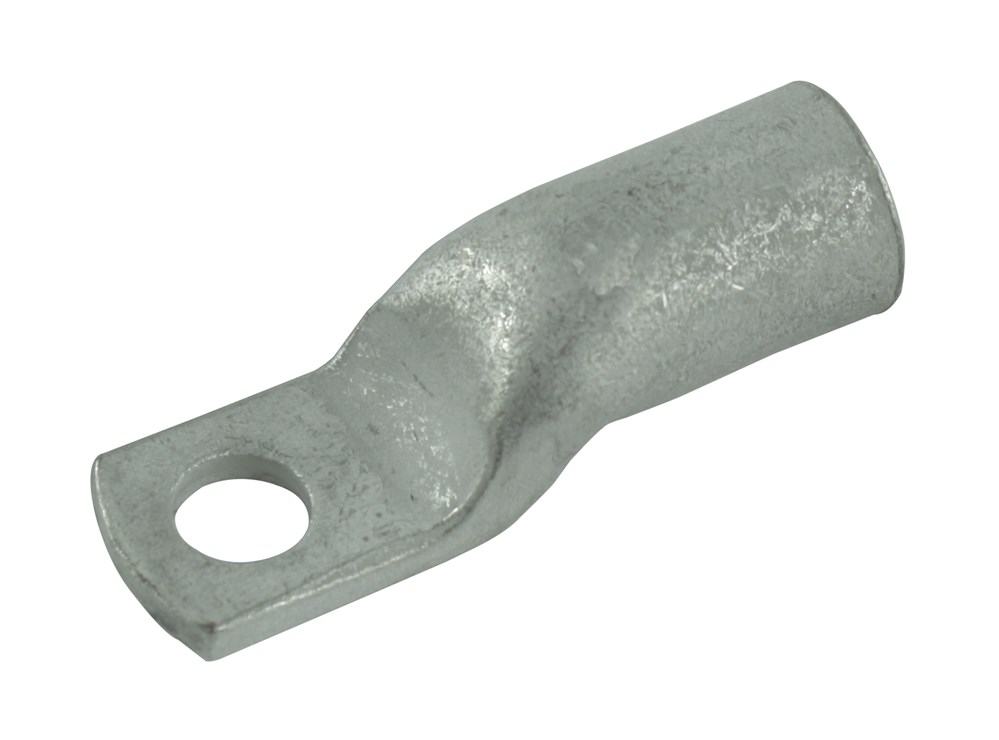

CABLE LUG KRTS 50mm2, M6
KRTS 50-6
- Availability:
-
Yes
- Total: 1
Related items
KRTS - 35-300mm²
KRTS-serien är rörkabelskor anpassade för trånga utrymmen. Kabelskoplattan är i samma bredd som kabelskon halsdiameter. Passar till mångtrådiga Cu-ledare(klass 5) samt fåtrådiga Cu-ledare(klass 2).
Material: 99.9% ren Cu
Ytbehandling: > 4µ Sn
Märkning på rörkabelskons platta kan t.ex. vara: n35-6T
n = Nelco // 35 = 35 mm² kabel // 6 = M6 hål // T = KRT måttstandard.
Märkning på rörkabelskons hals kan t.ex. vara: 12
12 = Ytterdiameter på halsen (OD-måttet).
Vid pressning med 6-kantsbackar skall halsmärkning och backmärkning överensstämma.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Insulated | No |
| Max. current (Imax) | 190 A |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | Yes |
| With sight-hole | No |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KRTS |

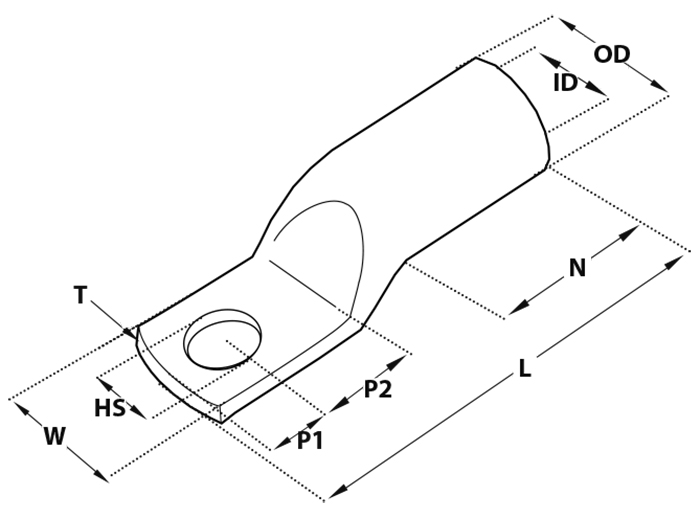

Dimensions
| HS | 6.5 mm |
|---|---|
| ID | 10 mm |
| OD | 14 mm |
| P1 | 7 mm |
| P2 | 10 mm |
| L | 53 mm |
| N | 20 mm |
| W | 15 mm |
| MOQ | 50 . |
| Unit | pcs |
| Bolt dimension (metric) | 6 . |
| Nominal cross section | 50 mm² |
Logistics
| Barcode | 733117631798 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | KRTS 50-6 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs with narrow palm |
| Alternative SKU | KRTS50-6 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
