NP 695
CRIMP TOOL COPPER TUBE LUGS 6-95mm2, KR, KRF, KRT, KRD & DIN 46234
NP 695
- Availability:
-
Yes
- Total: 1
Related items
NP 695

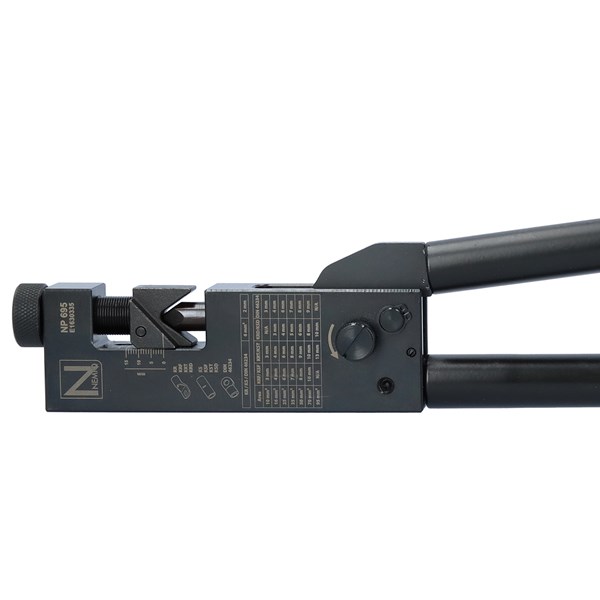

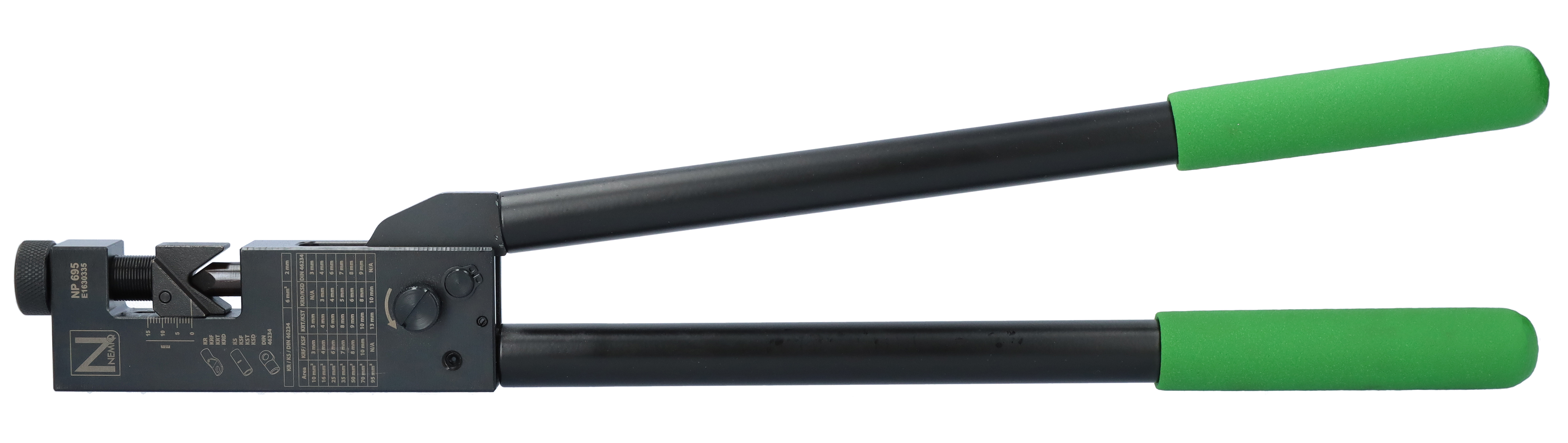

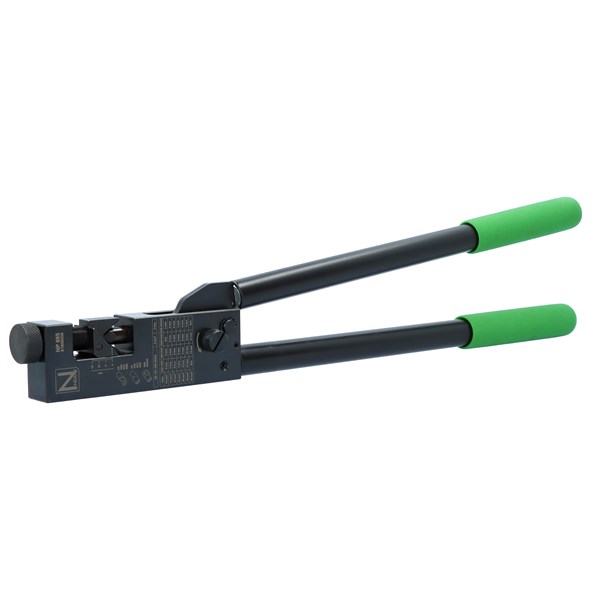

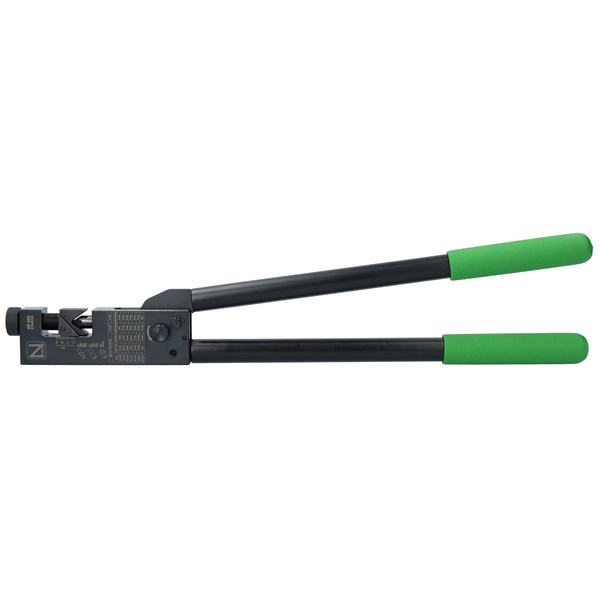

Indent crimp tool for cable lugs, splices and uninsulated DIN terminals. Stepless settings of crimping dies depending on cable series and area of cable lug.
Standard scale for:
KS / KR 6.0 mm²
KSF / KRF 10-70 mm²
KST / KRT 10-95 mm²
KSD / KRD 16-95 mm²
DIN 46234 6.0-70 mm²
Crimps made with this tool fulfills IEC 61238-1.
Built-in ratchet and release button. Completed crimps with settings according to scale on tool will fulfill SS-EN 61238-1.
Length: 525 mm.
- Total: 1
E1630335
Product Properties
| Number of crimps | 1 |
|---|---|
| With locking device (for mechanical tools) | Yes |
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| Compression shape | Arbour clamping |
Product video
Dimensions
| Cross section | 6-95 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 525 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117612241 |
|---|---|
| Country of origin | TW |
| E-no | E1630335 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | NP 695 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
Manual NP 695
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Two Hand (mechanical) |
| Search Description | PRESSVERKTYG RÖRKABELSKOR |
| Alternative SKU | NP695 |
| E-no | E1630335 |
