NP 695

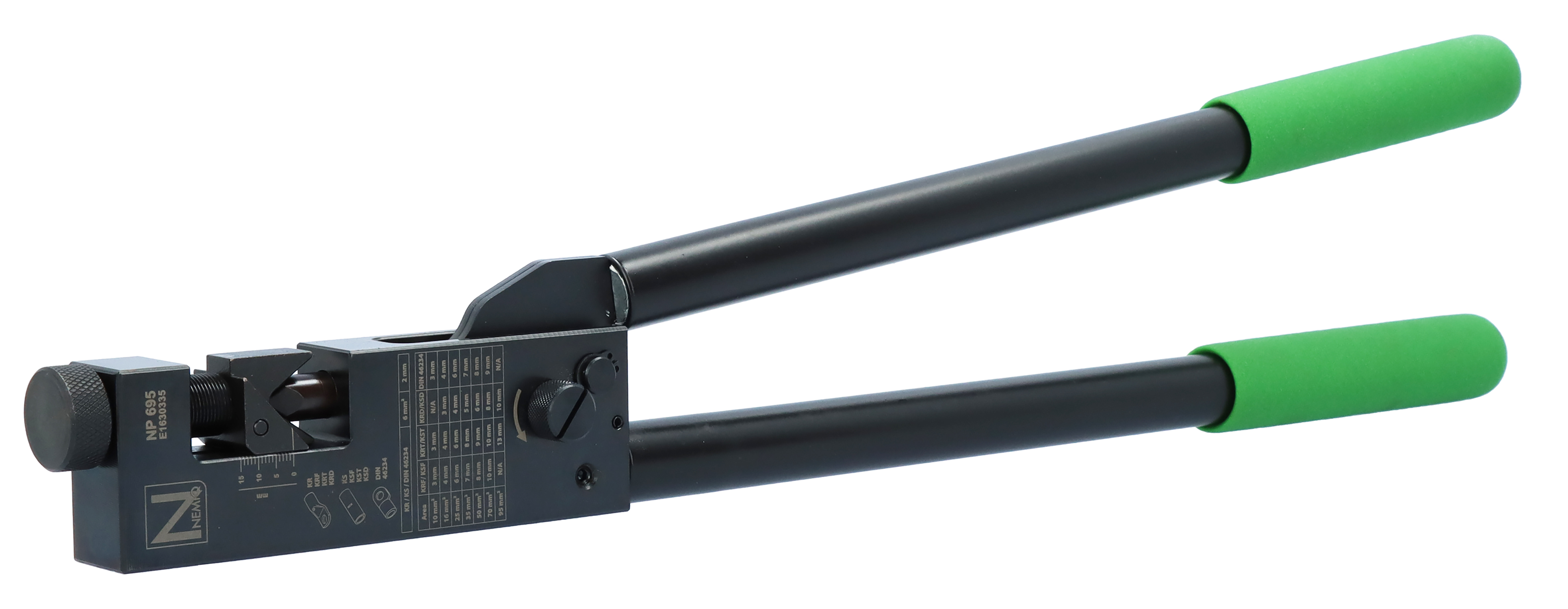

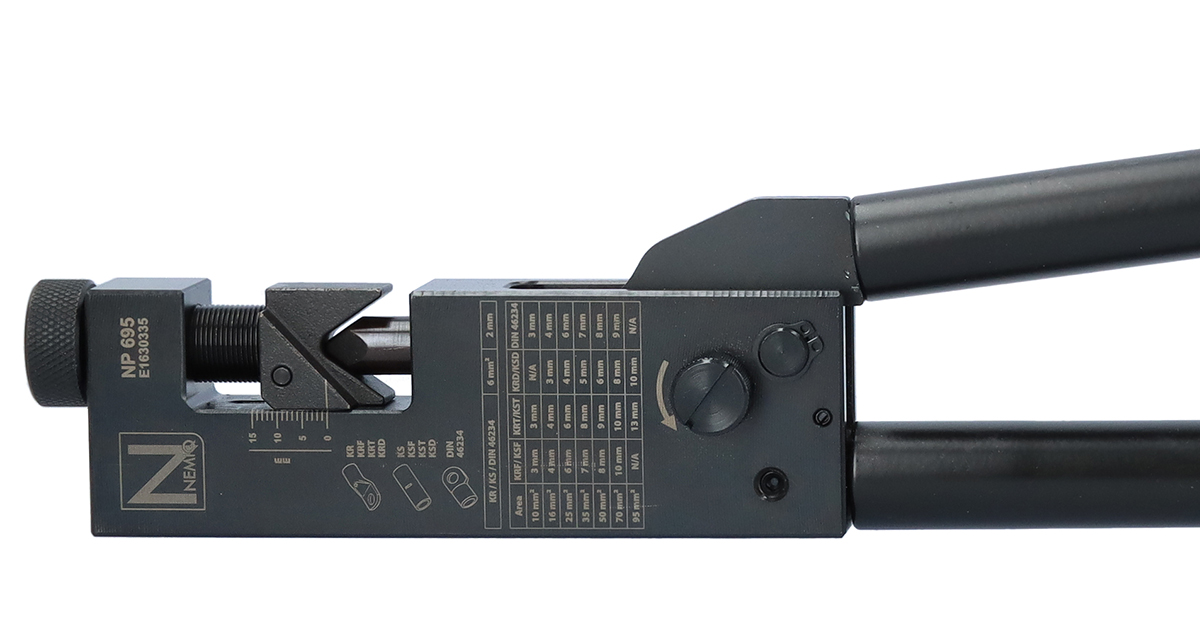

Indent crimp tool for cable lugs, splices and uninsulated DIN terminals. Stepless settings of crimping dies depending on cable series and area of cable lug.
Standard scale for:
KS / KR 6.0 mm²
KSF / KRF 10-70 mm²
KST / KRT 10-95 mm²
KSD / KRD 16-95 mm²
DIN 46234 6.0-70 mm²
Crimps made with this tool fulfills IEC 61238-1.
Built-in ratchet and release button. Completed crimps with settings according to scale on tool will fulfill SS-EN 61238-1.
Length: 525 mm.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- Compression shape:
- Arbour clamping
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Manual NP 695
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| CRIMP TOOL COPPER TUBE LUGS 6-95mm2, KR, KRF, KRT, KRD & DIN 46234 | 6-95 mm² | 1 . | pcs | 525 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| CRIMP TOOL COPPER TUBE LUGS 6-95mm2, KR, KRF, KRT, KRD & DIN 46234 |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL COPPER TUBE LUGS 6-95mm2, KR, KRF, KRT, KRD & DIN 46234 | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Arbour clamping |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL COPPER TUBE LUGS 6-95mm2, KR, KRF, KRT, KRD & DIN 46234 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Two Hand (mechanical) | PRESSVERKTYG RÖRKABELSKOR | NP695 |
Yes
|
|
|
- Total: 1
