360 view

AA 2504 FL-8

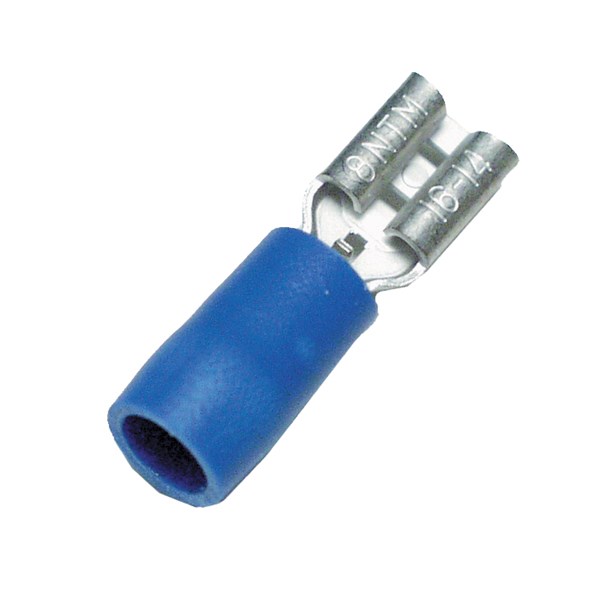

INSULATED RECEPTACLE BLUE, 4.8x0.8mm

Sku

AA 2504 FL-8

Availability:: Yes

Page size:

Total: 1

	Product Description	Stock code
	Tab female disconnects AA-series	18901			.

Total: 1

Page size:

Total: 1

Related items

Tab female disconnects AA-series

18901

Long copper sleeve

Total: 1

Product Properties:

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	15 A
Insulation	Partially isolated
Colour insulation	Blue
With cam clamp	No
With tap spreader	No
Material insulation	Polyvinyl chloride (PVC)
Fire classification	According to UL94V2
Operating temperature	-40-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

Dimensions:

ID	3.9 mm
L	19.5 mm
N	10 mm
W	4.8 mm
MOQ	100 .
Unit	pcs
Nominal cross section	1.04-2.63 mm²
AWG-range	16-14 .
Plug dimensions	Flat 4.8x0.8 mm

Approvals:

UL-File No.	E78965
Approved according to CE	Yes
Approved according to CSA	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V2

Logistic information:

Barcode	733117611335
Country of origin	JP
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	AA 2504 FL-8
Taric code	85369010
Unit	pcs

Other information:

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Receptacle - PVC
Search Description	NICHIFU, TMDV-480820-F-BLU
Alternative SKU	AA2504FL-8

Compliance:

Conflict Minerals	Yes, see report under tab "Documents"
Iron and Steel Sanction	Compliance
REACH	Yes. CAS 117-81-7, < 4 %
RoHS	RoHS 3 [Article 4(1), Annex II]
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:

Product Properties

Suitable for Class 2 conductor	Yes
Suitable for Class 5 conductor	Yes
Model	Bushing
Max. current (Imax)	15 A
Insulation	Partially isolated
Colour insulation	Blue
With cam clamp	No
With tap spreader	No
Material insulation	Polyvinyl chloride (PVC)
Fire classification	According to UL94V2
Operating temperature	-40-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

Dimensions

ID	3.9 mm
L	19.5 mm
N	10 mm
W	4.8 mm
MOQ	100 .
Unit	pcs
Nominal cross section	1.04-2.63 mm²
AWG-range	16-14 .
Plug dimensions	Flat 4.8x0.8 mm

Logistics

Barcode	733117611335
Country of origin	JP
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	AA 2504 FL-8
Taric code	85369010
Unit	pcs

Approvals

UL-File No.	E78965
Approved according to CE	Yes
Approved according to CSA	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V2

Other info

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	NEMIQ
Product Group	Receptacle - PVC
Search Description	NICHIFU, TMDV-480820-F-BLU
Alternative SKU	AA2504FL-8

Compliance

Conflict Minerals	Yes, see report under tab "Documents"
Iron and Steel Sanction	Compliance
REACH	Yes. CAS 117-81-7, < 4 %
RoHS	RoHS 3 [Article 4(1), Annex II]
US TSCA	No (5 PBT Subs, Feb 2021)

Genererate statement of compliance:
