TP 690

CRIMP TOOL INSULATED TERMINALS 0.5-6.0mm², ASYMMETRICAL

Sku

TP 690

Availability:
Yes
  • Total: 1
Product Description
Crimp tool - Basic
  • Total: 1
  • Total: 1

Related items

Crimp tool - Basic

  • Total: 1

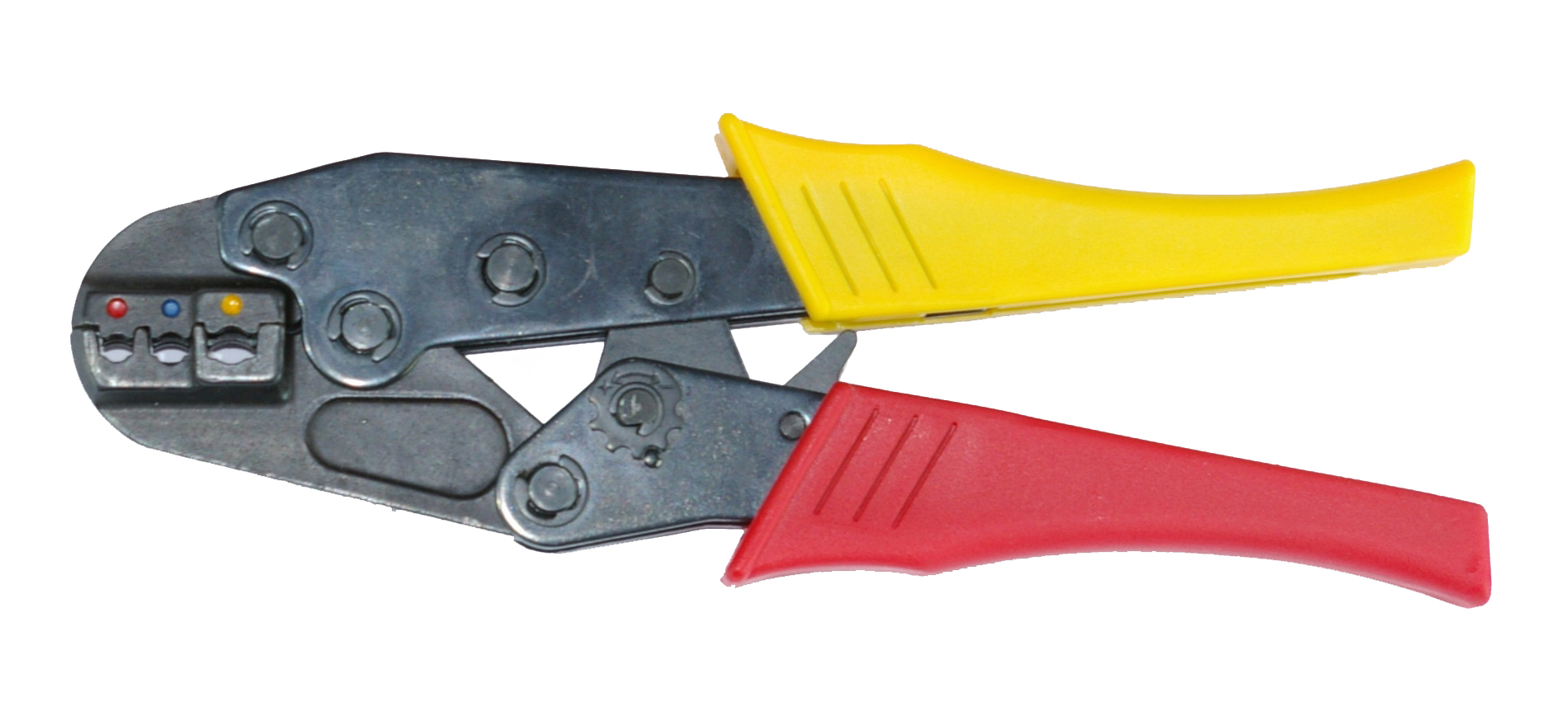

TP 690 är ett assymmetriskt pressverktyg med fast back för 0.5-6.0 mm² (AWG 20-10) isolerade kabelskor.

Det finns 3 uttag i verktygets pressback:
Röd: 0.5-1.5 mm²
Blå: 1.5-2.5 mm²
Gul: 4.0-6.0 mm²

Längd: 250 mm

With locking device (for mechanical tools) Yes
Inserts exchangeable No
Number of included inserts 1 .
With automatic return Yes
Cycle time 2 s
Suitable for Cable lugs and connectors
Construction/operation Mechanical
For component Insulated terminals
Compression shape Oval pressing
Cross section 0.5-6 mm²
MOQ 1 .
Unit pcs
Length 225 mm
Barcode 733117631964
Country of origin TW
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 1 .
Stock code TP 690
Taric code 82032000
Unit pcs
ETIM-Class EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection
ETIM-Release 9.0
Trademark NEMIQ
Product Group One Hand (ratchet)
Search Description PRESSVERKTYG ISOLERADE KABELSKOR
Alternative SKU TP690
Conflict Minerals N/A, Contains no conflict minerals
Extended Minerals N/A, contains no extended minerals
Iron and Steel Sanction Compliance
PFAS No PFAS
REACH No SVHC (Latest. 27 June 2024)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
ECCN Primary Classification CIVIL
ECCN Export Control Code Number N/A

Genererate statement of compliance:

Generate Datasheet:
