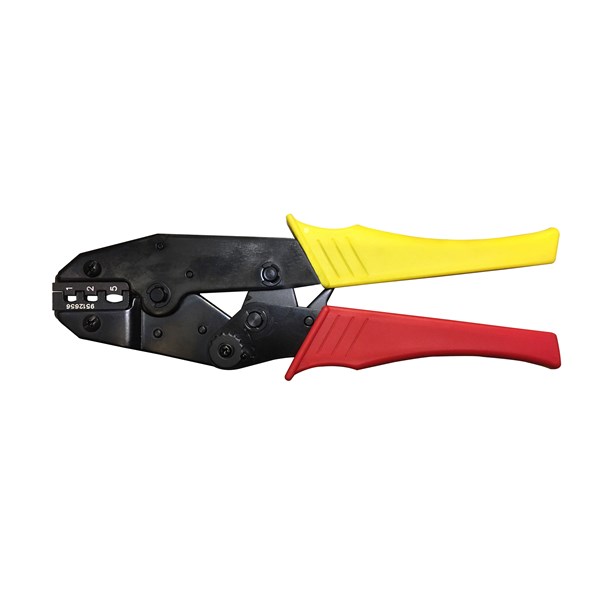

Crimp tool - Basic
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Screen connector, Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals, Non-insulated terminals, roller compaction, Coaxial
- Compression shape:
- Oval pressing, Hexagon, Roll compression (shrinking)
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 0.5-6.0mm², ASYMMETRICAL | 0.5-6 mm² | 1 . | pcs | 225 mm |
Yes
|
|
|
| PRESSVERKTYG RULLPRESS, RED GRIPS, 0.5-2.5mm2, -224 DIE | 1 . | pcs |
Yes
|
|
|
||
| PRESSVERKTYG RULLPRESS, YELLOW GRIPS, 0.5-3.0mm2, -225 DIE | 1 . | pcs |
Yes
|
|
|
||
| CRIMP TOOL OPEN BARREL BLUE GRIPS, 0.5-2.5mm², -981 DIE | 1 . | pcs |
Yes
|
|
|
||
| PRESSVERKTYG KOAXIAL, RG 58/59/62 AU, BNC/TNC | 1 . | pcs | 230 mm |
Yes
|
|
|
|
| PRESSVERKTYG KOAXIAL, BNC/TNC/MINI-UHF | 1 . | pcs | 240 mm |
No
|
|
|
|
| KIT BESTÅENDE AV RG 317, CC 08,HT 312 B,TL 3 | 1 . | pcs | 240 mm |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 0.5-6.0mm², ASYMMETRICAL | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Insulated terminals | Oval pressing |
Yes
|
|
|
| PRESSVERKTYG RULLPRESS, RED GRIPS, 0.5-2.5mm2, -224 DIE | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated terminals, roller compaction | Roll compression (shrinking) |
Yes
|
|
|
| PRESSVERKTYG RULLPRESS, YELLOW GRIPS, 0.5-3.0mm2, -225 DIE | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated terminals, roller compaction | Roll compression (shrinking) |
Yes
|
|
|
| CRIMP TOOL OPEN BARREL BLUE GRIPS, 0.5-2.5mm², -981 DIE | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated terminals, roller compaction | Roll compression (shrinking) |
Yes
|
|
|
| PRESSVERKTYG KOAXIAL, RG 58/59/62 AU, BNC/TNC | Yes | No | 1 . | Yes | 2 s | Screen connector | Mechanical | Coaxial | Hexagon |
Yes
|
|
|
| PRESSVERKTYG KOAXIAL, BNC/TNC/MINI-UHF | Yes | No | 1 . | Yes | 2 s | Screen connector | Mechanical | Coaxial | Hexagon |
No
|
|
|
| KIT BESTÅENDE AV RG 317, CC 08,HT 312 B,TL 3 | Yes | No | 1 . | Yes | 2 s | Screen connector | Mechanical | Coaxial | Hexagon |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 0.5-6.0mm², ASYMMETRICAL | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG ISOLERADE KABELSKOR | TP690 |
Yes
|
|
|
| PRESSVERKTYG RULLPRESS, RED GRIPS, 0.5-2.5mm2, -224 DIE | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | HD-224-RED |
Yes
|
|
|
|
| PRESSVERKTYG RULLPRESS, YELLOW GRIPS, 0.5-3.0mm2, -225 DIE | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | HD-225-YELLOW |
Yes
|
|
|
|
| CRIMP TOOL OPEN BARREL BLUE GRIPS, 0.5-2.5mm², -981 DIE | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | HD-981-BLUE |
Yes
|
|
|
|
| PRESSVERKTYG KOAXIAL, RG 58/59/62 AU, BNC/TNC | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 | One Hand (ratchet) | BLACKFRIDAY | 30-481 |
Yes
|
|
|
|
| PRESSVERKTYG KOAXIAL, BNC/TNC/MINI-UHF | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | REABB2017 | RG9600 |
No
|
|
|
| KIT BESTÅENDE AV RG 317, CC 08,HT 312 B,TL 3 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | RGKIT |
Yes
|
|
|
- Total: 7
