KST 70-PP2

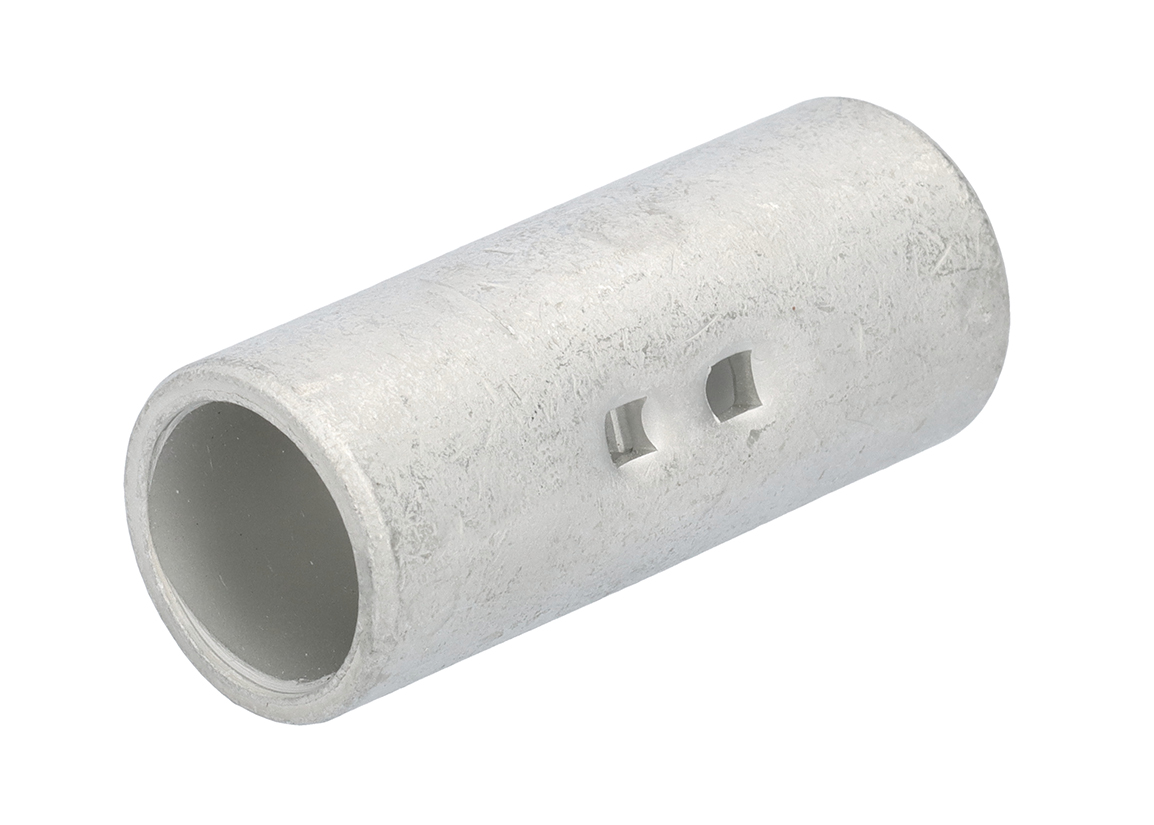

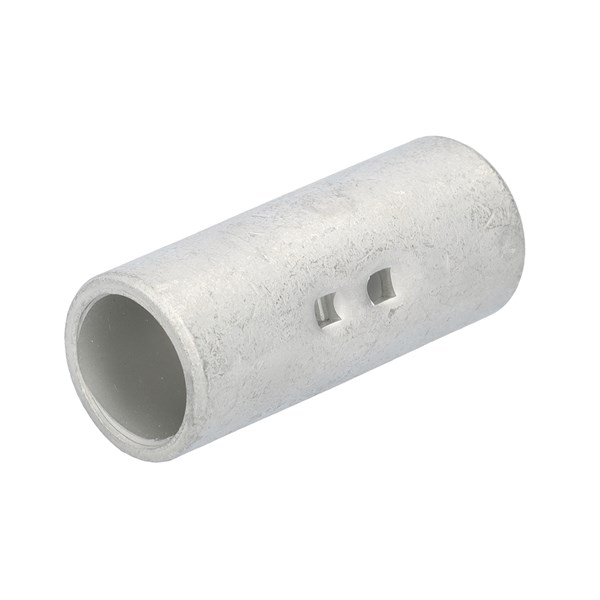

SPLICE KST, 2-P 70 mm²
KST 70-PP2
- Availability:
-
Yes
- Total: 1
Related items
Copper tube splices in Consumer pack
Nelco supplies a wide selection of copper tube lugs, deliverered in a retail package with euro-hole and EAN.
Available in 2, 4 and 8 pack.
For more information about each terminal, remove the -PP from the partnumber, and make a search at the top of the page.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | DIN-version |
| Max. current (Imax) | 227 A |
| Number of branches | 0 N/A |
| Insulation | None |
| Colour insulation | N/A |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| For pull protected connections | No |
| Voltage level | Up to 35 kV |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Series | KRT/KST(10-500mm2) |
Product video
Dimensions
| A | 12 mm |
|---|---|
| B | 16 mm |
| C | 55 mm |
| MOQ | 1 . |
| Unit | pck |
| Nominal cross section | 70 mm² |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117611192 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | KST 70-PP2 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Conflict Minerals Reporting Template Version 6.31_Approved
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Copper Tube Splices - Consumer pack |
| Alternative SKU | KST70-PP2 |
