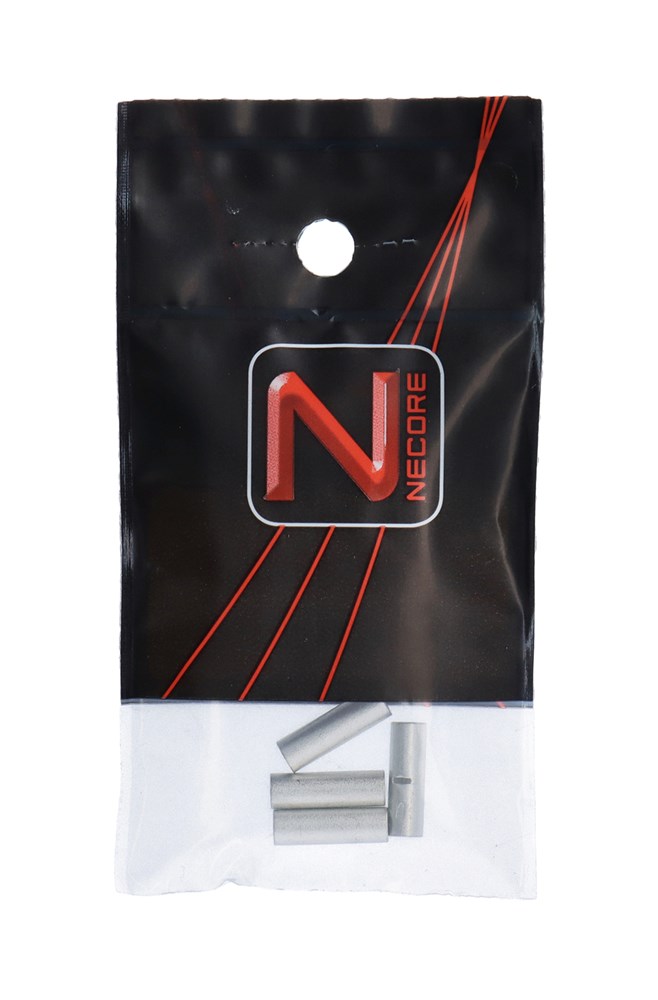

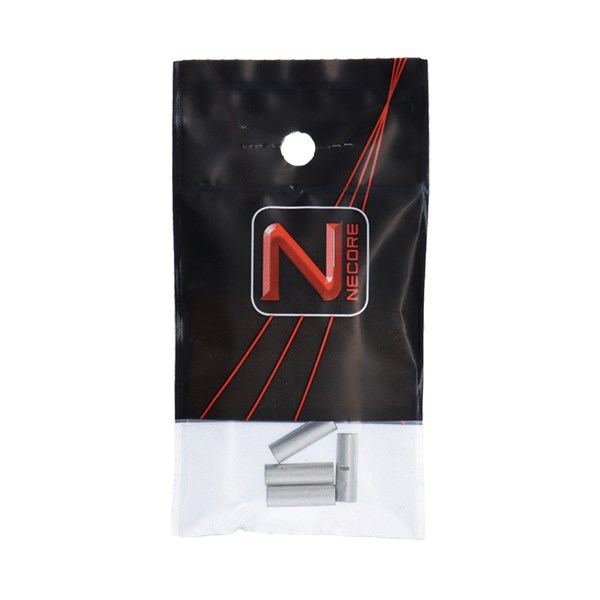

Copper tube splices in Consumer pack
Nelco supplies a wide selection of copper tube lugs, deliverered in a retail package with euro-hole and EAN.
Available in 2, 4 and 8 pack.
For more information about each terminal, remove the -PP from the partnumber, and make a search at the top of the page.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Model:
- DIN-version, UL model
- Max. current (Imax):
- 227 A, 22 A, 66 A, 97 A, 30 A, 124 A, 51 A
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Series:
- KRT/KST(10-500mm2)
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Material Spec KR, KRF, KRT, KRD, KS (BxSK), KSF, KST, KSD, CUT 0,75-630mm2
Dimensions
- Total: 7
| Product Description | A | B | C | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICE KSF 16mm2 | 10 . | pck | 16 mm² |
Yes
|
|
|
|||
| SPLICE KS 1.5mm2 | 10 . | pck | 1.5 mm² |
Yes
|
|
|
|||
| SPLICE KS 2.5mm2 | 10 . | pck | 2.5 mm² |
Yes
|
|
|
|||
| SPLICE KST, 2-P 70 mm² | 12 mm | 16 mm | 55 mm | 1 . | pck | 70 mm² |
Yes
|
|
|
| SPLICE KSF 10mm2 | 10 . | pck | 10 mm² |
Yes
|
|
|
|||

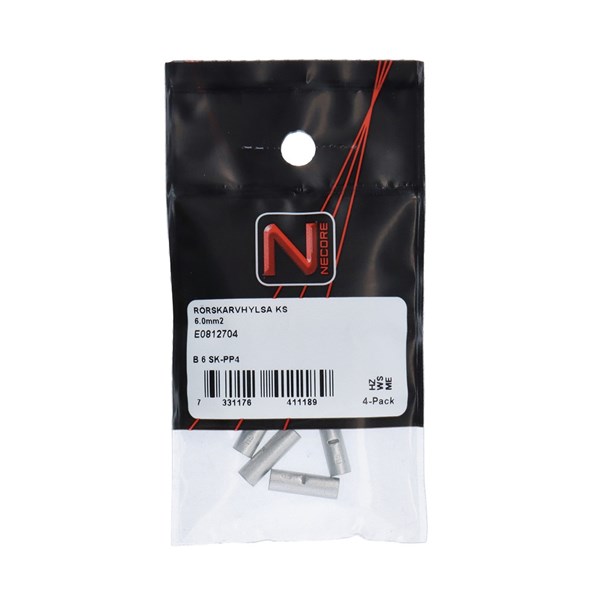

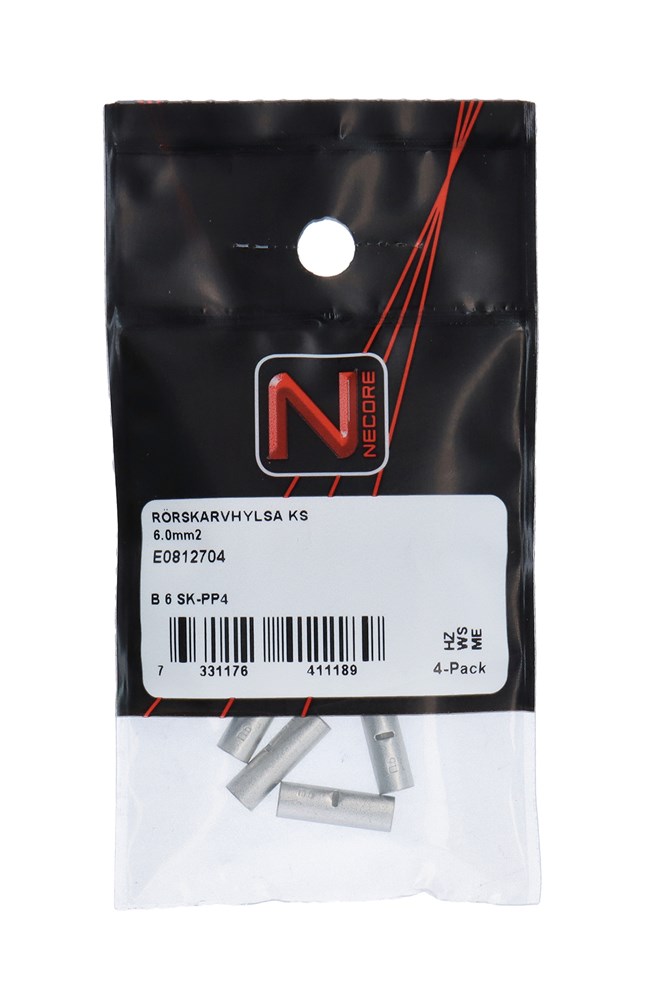

| SPLICE KS 6.0mm2 | 10 . | pck | 6 mm² |
Yes
|
|
|
|||
| SPLICE KSF 25mm2 | 10 . | pck | 25 mm² |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| SPLICE KSF 16mm2 |
|
Yes
|
|
|
| SPLICE KS 1.5mm2 |
|
Yes
|
|
|
| SPLICE KS 2.5mm2 |
|
Yes
|
|
|
| SPLICE KST, 2-P 70 mm² |
|
Yes
|
|
|
| SPLICE KSF 10mm2 |
|
Yes
|
|
|
| SPLICE KS 6.0mm2 |
|
Yes
|
|
|
| SPLICE KSF 25mm2 |
|
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Suitable for Class 6 conductor | Model | Max. current (Imax) | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Max Temp | Surface protection | Material | Series | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICE KSF 16mm2 | Yes | Yes | UL model | 97 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
||
| SPLICE KS 1.5mm2 | Yes | Yes | Yes | UL model | 22 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
|
| SPLICE KS 2.5mm2 | Yes | Yes | Yes | UL model | 30 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
|
| SPLICE KST, 2-P 70 mm² | Yes | Yes | DIN-version | 227 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper | KRT/KST(10-500mm2) |
Yes
|
|
|
|
| SPLICE KSF 10mm2 | Yes | Yes | UL model | 66 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
||
| SPLICE KS 6.0mm2 | Yes | Yes | Yes | UL model | 51 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
|
| SPLICE KSF 25mm2 | Yes | Yes | UL model | 124 A | 0 N/A | None | N/A | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 35 kV | Other | No | 150 °C | Tinned | Copper |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICE KSF 16mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B16SK-PP4 |
Yes
|
|
|
| SPLICE KS 1.5mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B1.5SK-PP8 |
Yes
|
|
|
| SPLICE KS 2.5mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B2.5SK-PP8 |
Yes
|
|
|
| SPLICE KST, 2-P 70 mm² | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | KST70-PP2 |
Yes
|
|
|
|
| SPLICE KSF 10mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B10SK-PP4 |
Yes
|
|
|
| SPLICE KS 6.0mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B6SK-PP4 |
Yes
|
|
|
| SPLICE KSF 25mm2 | EC001059 - Crimp splices for copper conductor | 9.0 |
|
105026 | SKH2023ERIK4 ENR2023V | B25SK-PP4 |
Yes
|
|
|
- Total: 7
