85-950

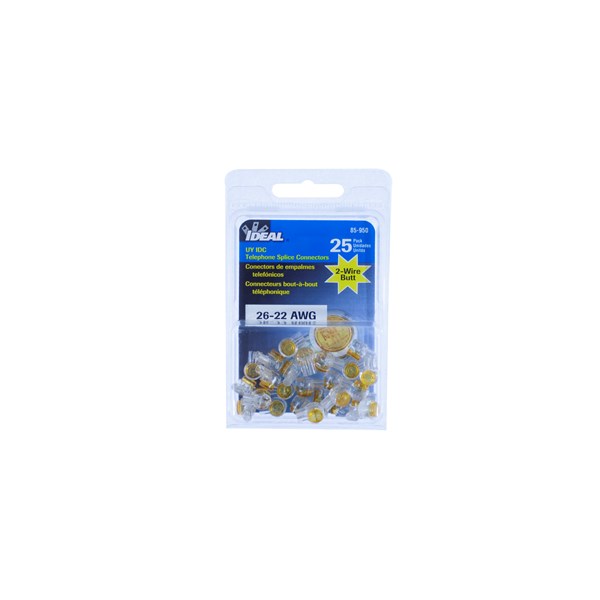

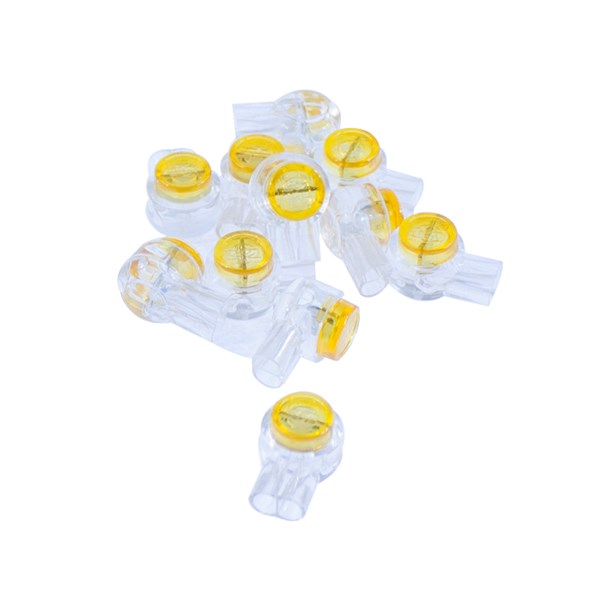

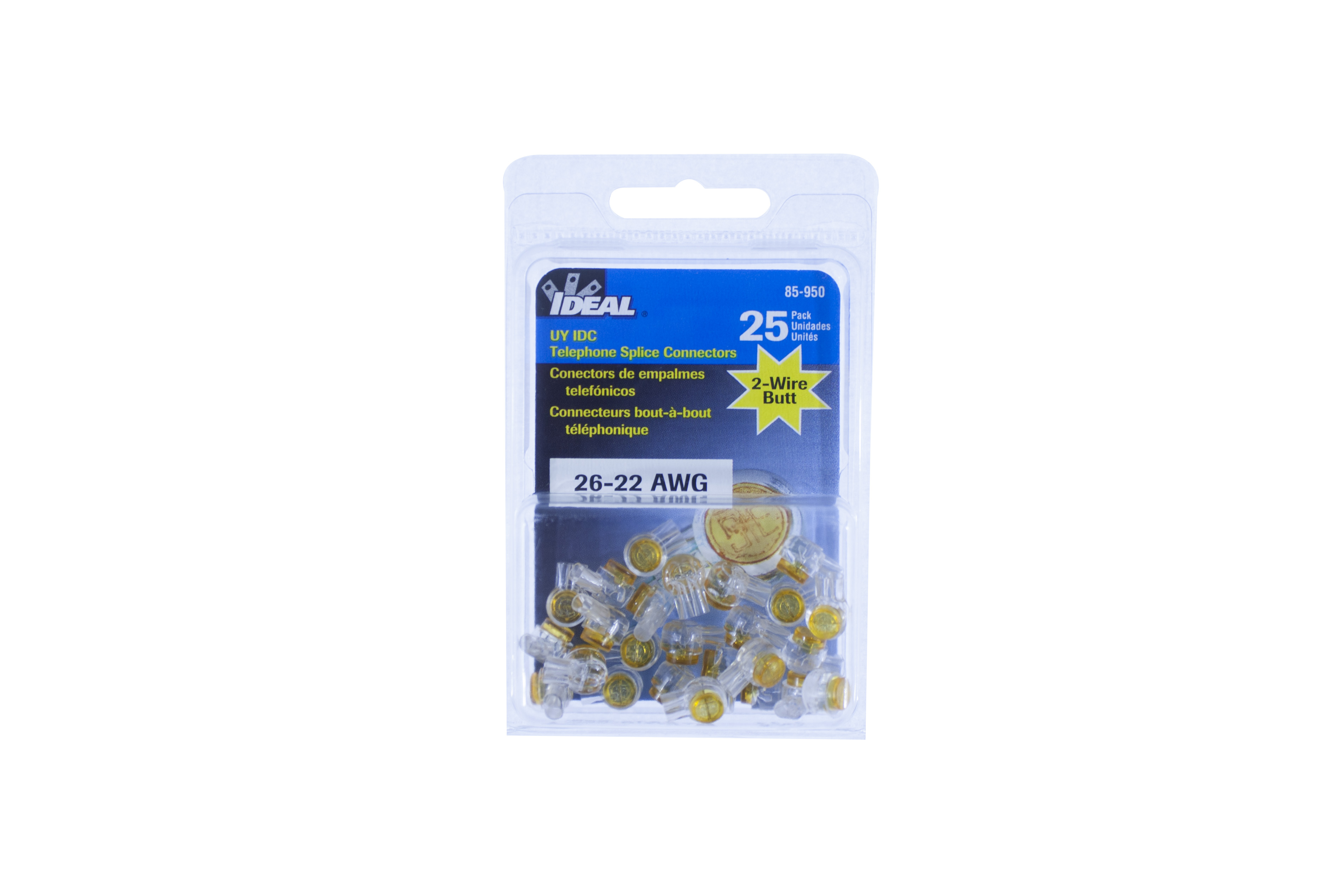

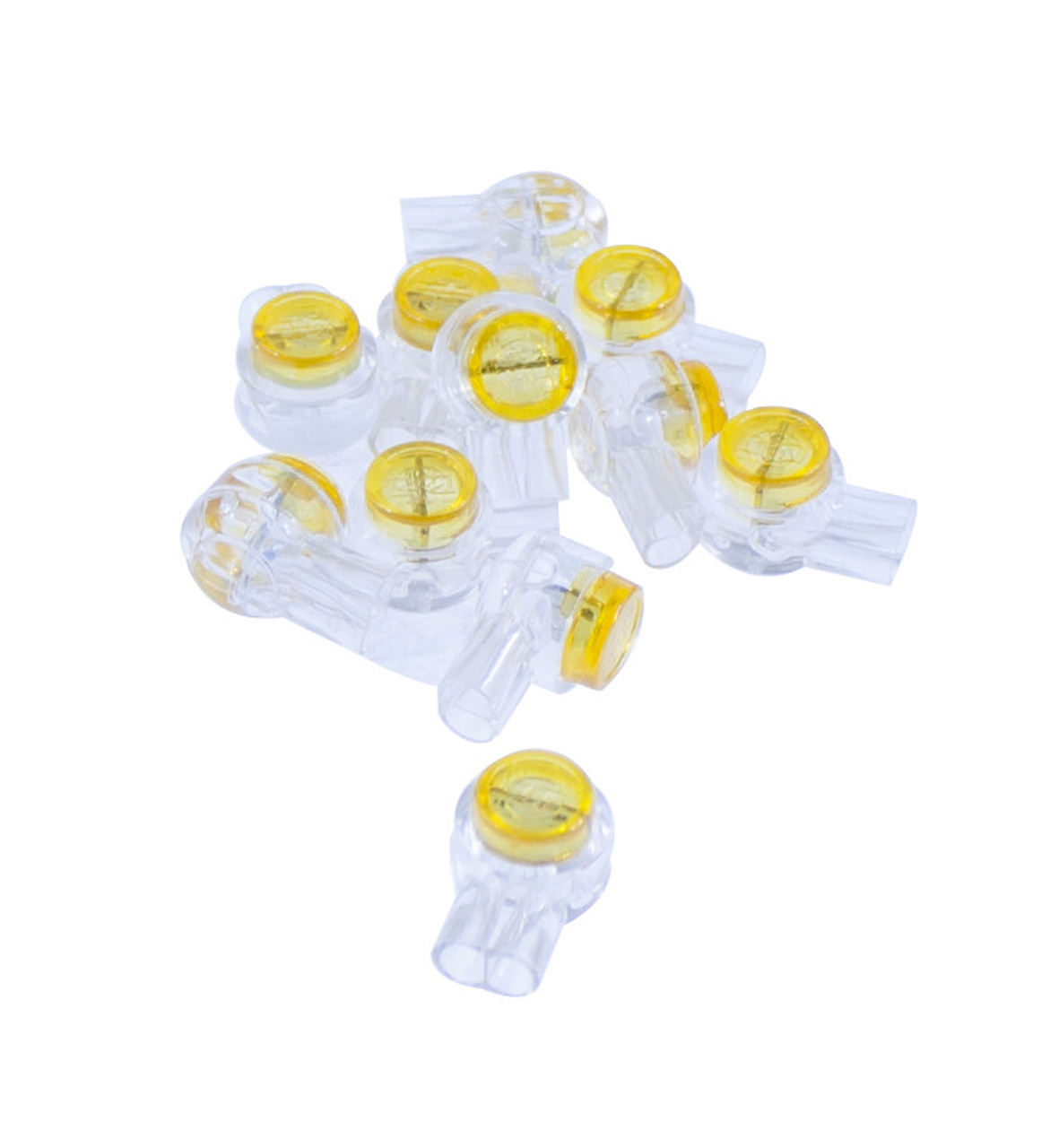

IDC BUTT SPLICE CONNECTOR, UY, 2-WIRE, 25PCS/PACK YELLOW, OD MAX=1.52mm, (AWG 26-22), JELLYBEAN
85-950
- Availability:
-
Yes
- Total: 1
Related items
IDC-skarvar
Fast connections, the cables do not need to strip.
Designed for low voltage cables.
Moisture Resistant.
- Total: 1
E0893071
Product Properties
| Model | Branch |
|---|---|
| Colour insulation | Yellow |
| Grease filling against corrosion | Yes |
| Max. number of cores | 2 . |
| Temperature | -40-105 °C |
| Interrupt free shifting | No |
| Material insulation | Polypropylene (PP) |
| Packaging | Loose piece |
Dimensions
| Core diameter | 0.4-0.7 mm |
|---|---|
| Max. outer diameter | 0.6-1.52 mm |
| MOQ | 1 . |
| Unit | pck |
| Nominal cross section | 0.1288-0.3255 mm² |
Logistics
| Barcode | 078325085950 |
|---|---|
| Country of origin | US |
| E-no | E0893071 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Packaging | Loose piece |
| Stock code | 85-950 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| With approval according to UL | Yes |
|---|
Other info
| ETIM-Class | EC000306 - Low current connector |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | IDEAL |
| Product Group | IDC connector |
| Search Description | FISKÖGA FISKÖGON |
| Alternative SKU | 85-950 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
