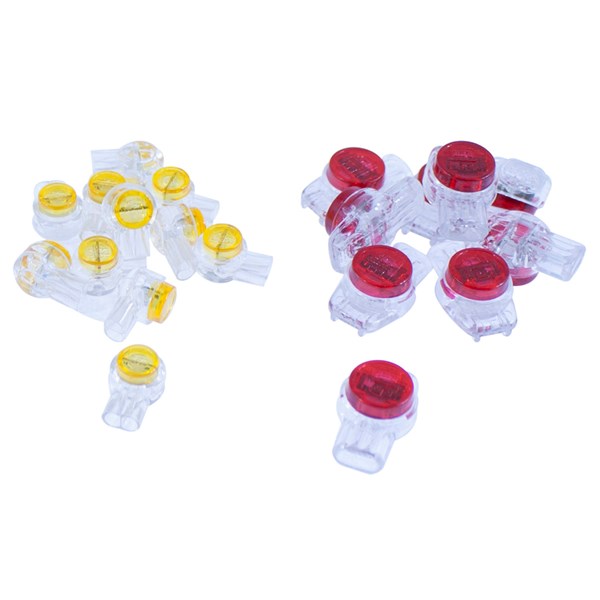

IDC-skarvar
Fast connections, the cables do not need to strip.
Designed for low voltage cables.
Moisture Resistant.
Technical properties
- Model:
- Branch
- Colour insulation:
- Red, Yellow
- Grease filling against corrosion:
- Yes
- Max. number of cores:
- 3 ., 2 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Material insulation:
- Polypropylene (PP)
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Core diameter | Max. outer diameter | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE,100PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | 0.4-0.9 mm | 0.6-1.68 mm | 1 . | pck | 0.1288-0.6527 mm² |
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE, 25PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | 0.4-0.9 mm | 0.6-1.68 mm | 1 . | pck | 0.1288-0.6527 mm² |
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UY, 2-WIRE, 25PCS/PACK YELLOW, OD MAX=1.52mm, (AWG 26-22), JELLYBEAN | 0.4-0.7 mm | 0.6-1.52 mm | 1 . | pck | 0.1288-0.3255 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | With approval according to UL | Availability | ||
|---|---|---|---|---|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE,100PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN |
|
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE, 25PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN |
|
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UY, 2-WIRE, 25PCS/PACK YELLOW, OD MAX=1.52mm, (AWG 26-22), JELLYBEAN |
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Model | Colour insulation | Grease filling against corrosion | Max. number of cores | Temperature | Interrupt free shifting | Material insulation | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE,100PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | Branch | Red | Yes | 3 . | -40-105 °C | No | Polypropylene (PP) |
Yes
|
|
|
|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE, 25PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | Branch | Red | Yes | 3 . | -40-105 °C | No | Polypropylene (PP) | Loose piece |
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UY, 2-WIRE, 25PCS/PACK YELLOW, OD MAX=1.52mm, (AWG 26-22), JELLYBEAN | Branch | Yellow | Yes | 2 . | -40-105 °C | No | Polypropylene (PP) | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE,100PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | EC000306 - Low current connector | 9.0 |
|
IDC connector | FISKÖGON FISKÖGA | 86-925 |
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UR2, 3-WIRE, 25PCS/PACK RED, OD MAX=1.68mm, (AWG 26+19), JELLYBEAN | EC000306 - Low current connector | 9.0 |
|
IDC connector | FISKÖGON FISKÖGA | 85-925 |
Yes
|
|
|
| IDC BUTT SPLICE CONNECTOR, UY, 2-WIRE, 25PCS/PACK YELLOW, OD MAX=1.52mm, (AWG 26-22), JELLYBEAN | EC000306 - Low current connector | 9.0 |
|
IDC connector | FISKÖGA FISKÖGON | 85-950 |
Yes
|
|
|
- Total: 3
