1.692.3200.50

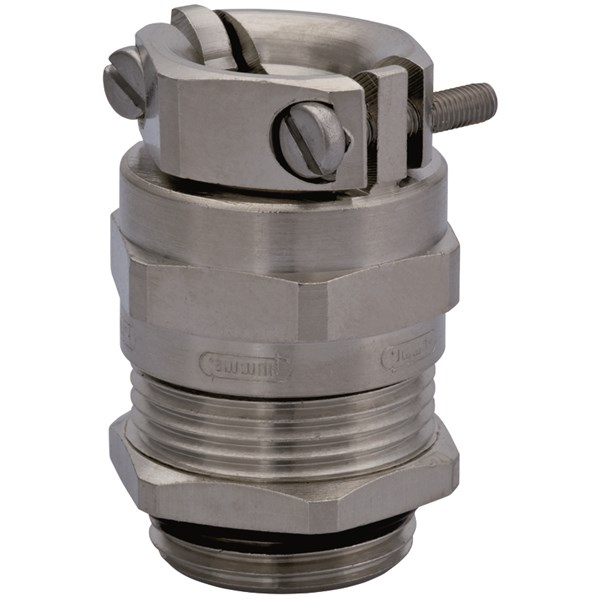

CABLE GLAND, HSK-MZ-EMV M32, 18-25mm
1.692.3200.50
- Availability:
-
No
- Total: 1
Related items
HSK-MZ-EMV, extra dragavlastning
EMC-förskruvning i förnicklad mässing.
MaterialFörnicklad mässing
Tätningsinsats Polyamid
FormtätningNBR
O-ringNBR
Skyddsklass IP 68 - 10 bar, inom angivet klämområde vid användning av O-ring.
Drifttemperatur kontinuerligt: -40° C till +100° C
- Total: 1
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP68 |
| With strain relief | Yes |
| Model | Straight |
| Material quality | Brass |
| RAL-number | 0 N/A |
| Thread type | Metric |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | No |
| With locknut | No |
| Snapping in opening | No |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | No |
| For armoured cable | No |
| EMC-version | Yes |
| Screened | Yes |
| Type of sealing | Sealing ring |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Brass |
| Surface protection | Nickel-plated |
| Operating temperature | -40-100 °C |
| Material | Metal |
| Halogen free | Yes |
| Wrench width | 40 mm |
Dimensions
| MOQ | 25 . |
|---|---|
| Unit | pcs |
| Suitable for cable diameter | 18-25 mm |
| Nominal thread size metric/PG | 32 . |
| Pitch thread | 1.5 mm |
| Thread length | 8 mm |
| Wrench width | 40 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 403387844217 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 25 . |
| Stock code | 1.692.3200.50 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP68 |
|---|---|
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Hummel |
| Product Group | EMC |
| Alternative SKU | 1.692.3200.50 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1185 |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | Yes. CAS 7439-92-1, < 4 % |
| RoHS | RoHS 3 (Exemption 6c) |
| SCIP | b061a0a7-0fef-4e6f-94bc-b0cebbe04ba1 |
| US TSCA | Compliance |
