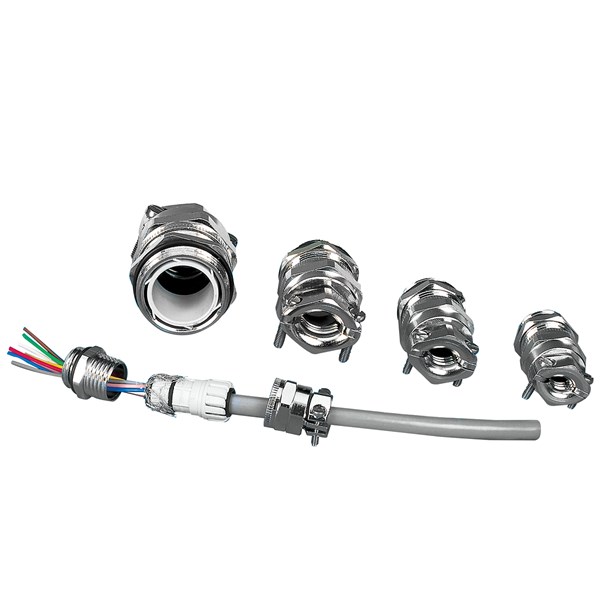

HSK-MZ-EMV, extra dragavlastning
EMC-förskruvning i förnicklad mässing.
MaterialFörnicklad mässing
Tätningsinsats Polyamid
FormtätningNBR
O-ringNBR
Skyddsklass IP 68 - 10 bar, inom angivet klämområde vid användning av O-ring.
Drifttemperatur kontinuerligt: -40° C till +100° C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 20 mm, 24 mm, 30 mm, 40 mm
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm, LONG THREAD | 25 . | pcs | 13-18 mm | 25 . | 1.5 mm | 12 mm | 30 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm | 25 . | pcs | 13-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 8 mm | 40 mm | Other |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm, LONG THREAD | IP68 |
|
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M16, 5-10mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M20, 10-14mm | IP68 |
|
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm | IP68 |
|
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M32, 18-25mm | IP68 |
|
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M16, 5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 20 mm |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M20, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M32, 18-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 40 mm |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
EMC | 1.692.2500.30 |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.692.1600.50 |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.692.2000.50 |
No
|
|
|
| CABLE GLAND, HSK-MZ-EMV M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.692.2500.50 |
Yes
|
|
|
| CABLE GLAND, HSK-MZ-EMV M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.692.3200.50 |
No
|
|
|
- Total: 5
