1778412802

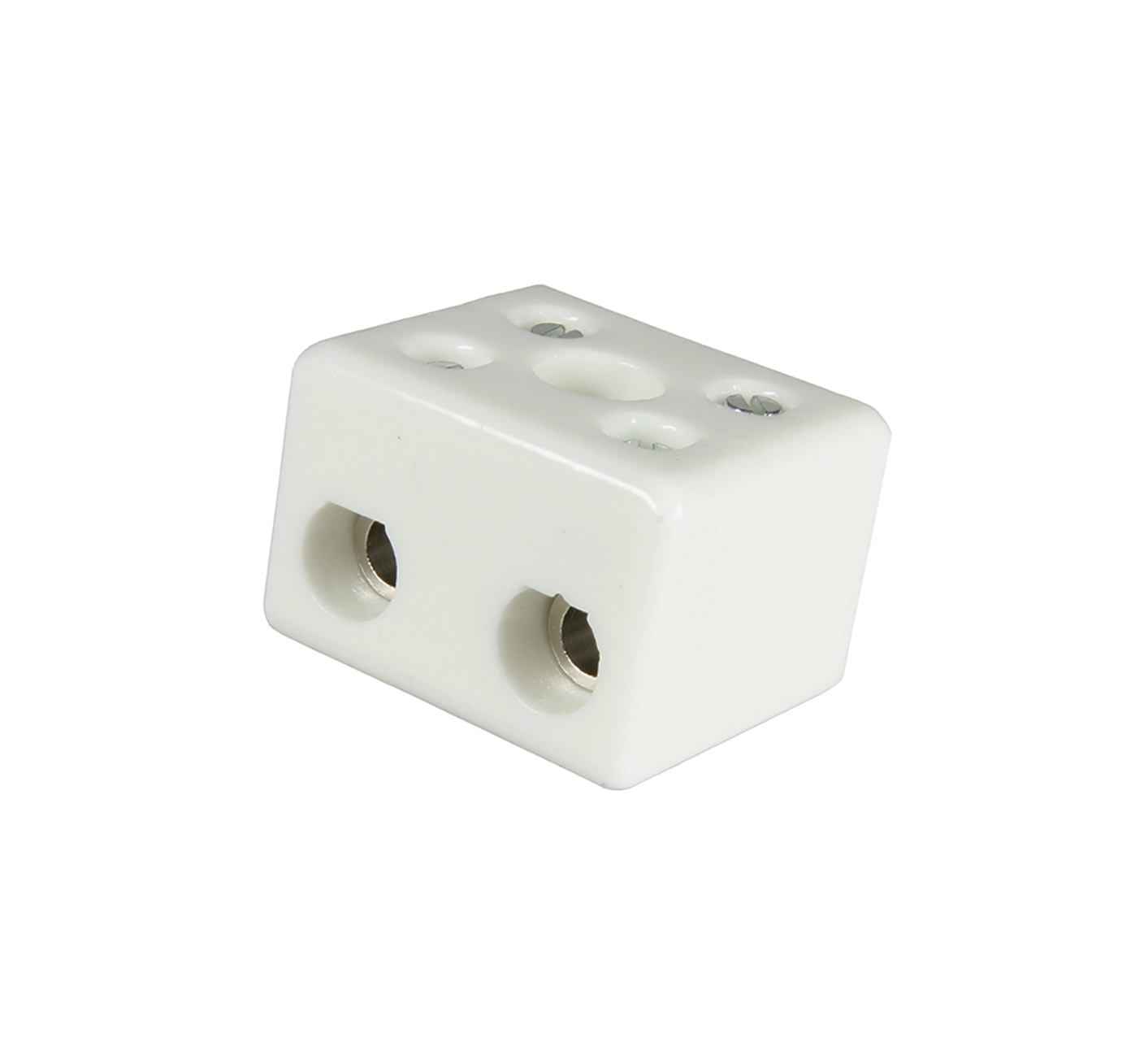

KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/2
1778412802
- Availability:
-
Yes
- Total: 1
Related items
Plintar porslin
Connectors porcelain type PM - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M4 x 9 mm.
Torque: 1.2 Nm
Distance: 18 mm
Cable area: up to 16 mm² with wire protection DS up to 6 mm²
Wire protectors: Tinned bronze
Voltage rating: 380 V
Current rating: EN60598 41 A, EN60998 41 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 9.5-10 mm
- Total: 1
Product Properties
| Number of poles | 2 . |
|---|---|
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Transparent | No |
Dimensions
| MOQ | 20 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | 402801210346 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 20 . |
| Stock code | 1778412802 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001284 - Single- and multi-pole terminal strip |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Adels |
| Product Group | Terminal Strip - Porcelain |
| Search Description | KOPPLINGSPLINT PORSLIN, 2-POL, VIT |
| Alternative SKU | 1778412802 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| REACH | Yes. CAS 7439-92-1, < 4 % |
| RoHS | RoHS 3 (Exemption 6c) |
| SCIP | c90d1f41-c565-4227-8779-aaa698b784e1 |
| US TSCA | No (5 PBT Subs, Feb 2021) |
