Plintar porslin

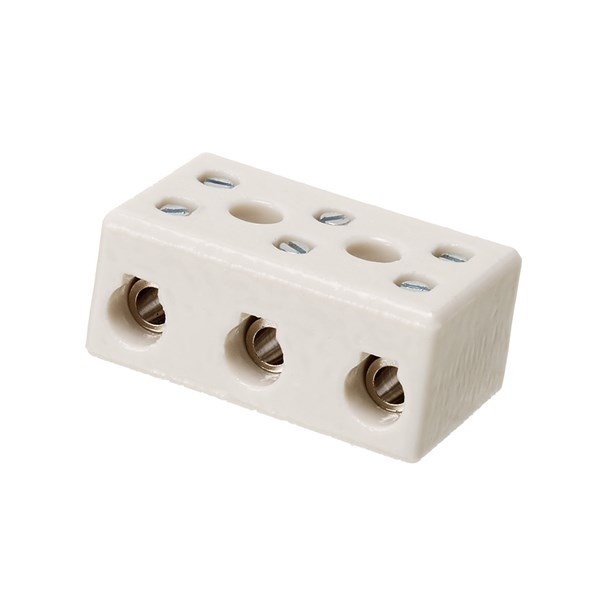

Connectors porcelain type PM - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M4 x 9 mm.
Torque: 1.2 Nm
Distance: 18 mm
Cable area: up to 16 mm² with wire protection DS up to 6 mm²
Wire protectors: Tinned bronze
Voltage rating: 380 V
Current rating: EN60598 41 A, EN60998 41 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 9.5-10 mm
Technical properties
- Number of poles:
- 2 ., 3 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/2 | 20 . | pcs |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/3 | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/2 |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/3 |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of poles | Type of electrical connection 1 | Type of electrical connection 2 | Transparent | Availability | ||
|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/2 | 2 . | Screw connection | Screw connection | No |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/3 | 3 . | Screw connection | Screw connection | No |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KOPPLINGSPLINT PORSLIN, 2-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/2 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 2-POL, VIT | 1778412802 |
Yes
|
|
|
| KOPPLINGSPLINT PORSLIN, 3-POL, VIT, 0.5-16mm2, UTAN TRÅDSKYDD, PM/3 | EC001284 - Single- and multi-pole terminal strip | 9.0 |
|
Terminal Strip - Porcelain | KOPPLINGSPLINT PORSLIN, 3-POL, VIT | 1778412803 |
Yes
|
|
|
- Total: 2
