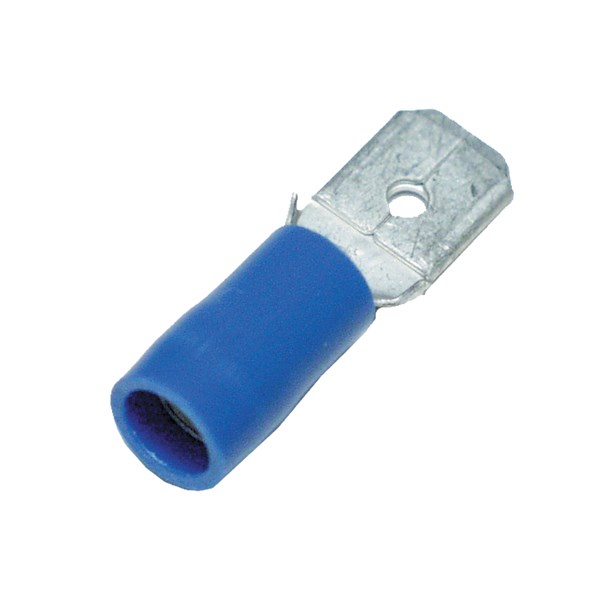

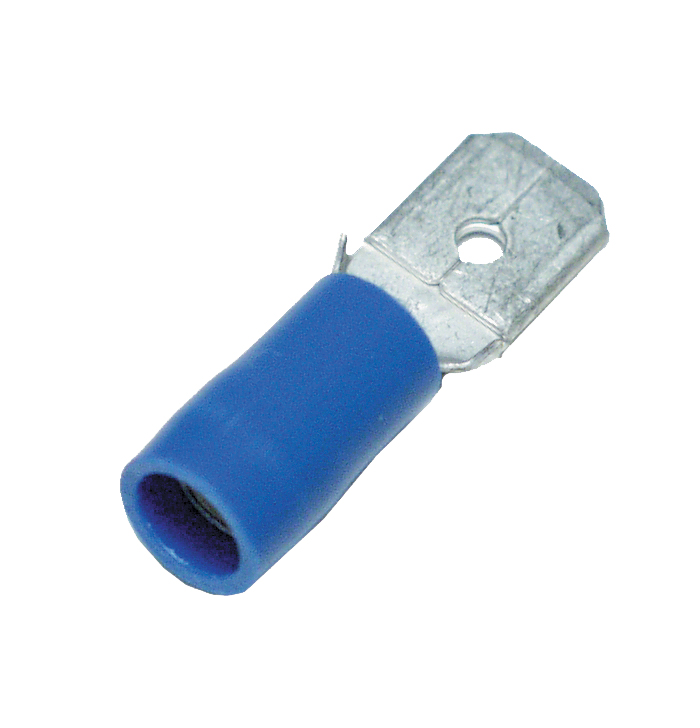

Tab male disconnects AA-series
Long copper sleeve
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
- Inflammability class of insulation material according to with UL94:
- V0
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AA-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 3
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED TAB RED, 6.3x0.8mm | 3.2 mm | 21 mm | 10 mm | 6.3 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| INSULATED TAB BLUE, 6.3x0.8mm | 3.9 mm | 21 mm | 10 mm | 6.3 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
No
|
|
|
| INSULATED TAB YELLOW, 6.3x0.8mm | 3.9 mm | 26 mm | 15 mm | 6.3 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 6.3x0.8 mm |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED TAB RED, 6.3x0.8mm | E78965 |
|
|
|
|
Yes
|
|
|
| INSULATED TAB BLUE, 6.3x0.8mm | E78965 |
|
|
|
|
No
|
|
|
| INSULATED TAB YELLOW, 6.3x0.8mm | E78965 |
|
|
|
|
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Voltage max | Halogen free | Packaging | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED TAB RED, 6.3x0.8mm | Plug | 10 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | No | Loose piece |
|
Yes
|
|
|
| INSULATED TAB BLUE, 6.3x0.8mm | Plug | 15 A | Partially isolated | Blue | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | No | Loose piece |
|
No
|
|
|
| INSULATED TAB YELLOW, 6.3x0.8mm | Plug | 24 A | Partially isolated | Yellow | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | No | Loose piece |
|
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED TAB RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Tab - PVC | AA1507H |
Yes
|
|
|
|
| INSULATED TAB BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Tab - PVC | ISOLERAD FLATSTIFT | AA2507H |
No
|
|
|
| INSULATED TAB YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Tab - PVC | AA4607H |
No
|
|
|
- Total: 3
