AA 4607 H

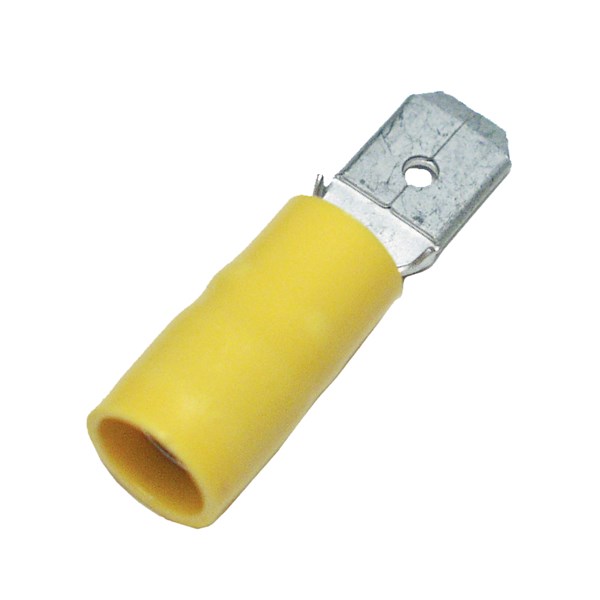

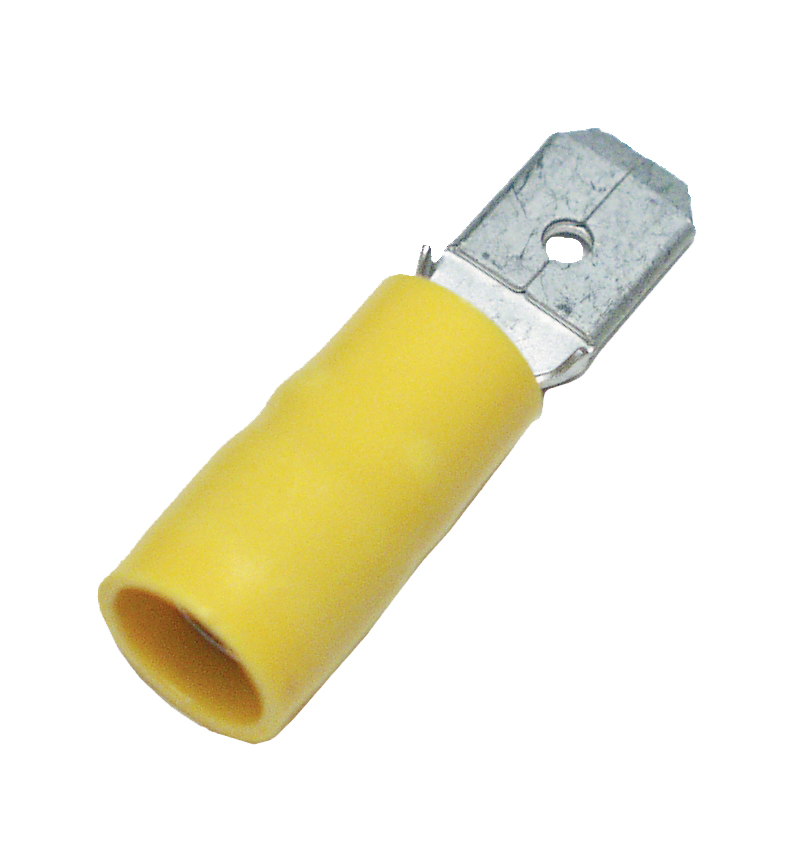

INSULATED TAB YELLOW, 6.3x0.8mm
AA 4607 H
- Availability:
-
Yes
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 24 A |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -40-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 3.9 mm |
|---|---|
| L | 26 mm |
| N | 15 mm |
| W | 6.3 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 2.63-6.64 mm² |
| AWG-range | 12-10 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117612618 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | AA 4607 H |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E78965 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Tab - PVC |
| Search Description | NICHIFU, TMDV-630855-M-YEL |
| Alternative SKU | AA4607H |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | Yes. CAS 117-81-7, < 4 % |
| RoHS | RoHS 3 [Article 4(1), Annex II] |
| US TSCA | No (5 PBT Subs, Feb 2021) |
