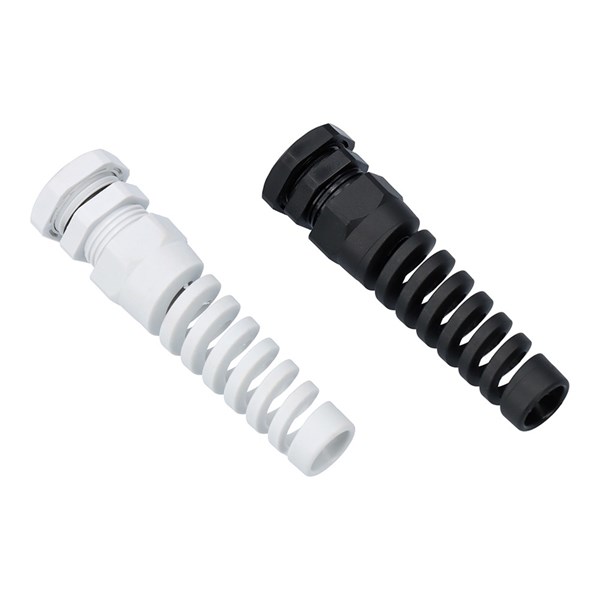

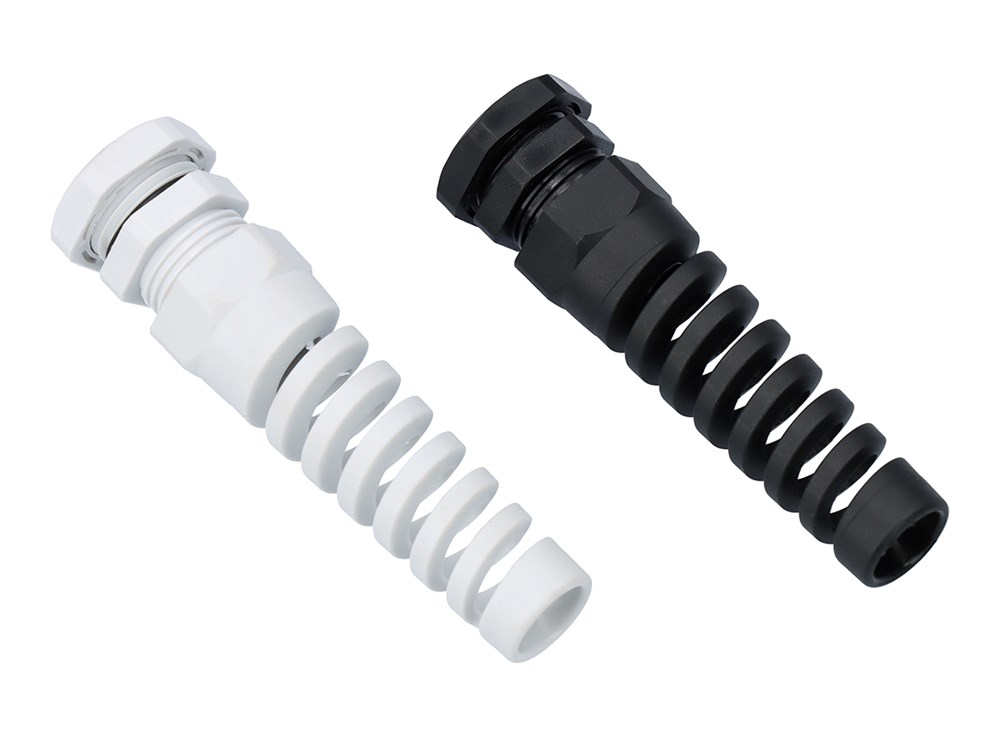

PCGS BASIC, Standard cable gland Flex PA6, with flex spiral nut.
Watertight and easy-to-assemble cable gland with good strain relief and large clamping area. With flexible spiral for optimal cable bending protection.
Including lock nut.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 9005 ., 7035 .
- Thread type:
- Metric, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- Yes
- With locknut:
- Yes
- Snapping in opening:
- Yes
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Black, Grey
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 24 mm, 33 mm, 22 mm
Show more
Item List
- Total: 14
- Total: 14
Accessories
Related products
Spare Parts
Product video
Documents

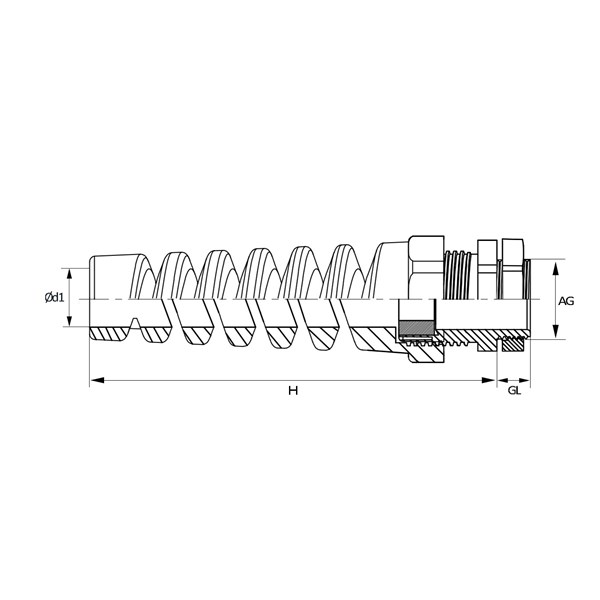

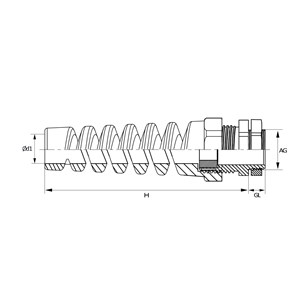

Dimensions
- Total: 14
| Product Description | H | AG | GL | Ød1 | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, BLACK | 54 mm | 12 mm | 8 mm | 7 mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, GREY | 54 mm | 12 mm | 8 mm | 7 mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8mm, BLACK | 63 mm | 16 mm | 8 mm | 8.5 mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8.0mm, GREY | 63 mm | 16 mm | 8 mm | 8.5 mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, BLACK | 90 mm | 20 mm | 9 mm | 13 mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, GREY | 90 mm | 20 mm | 9 mm | 13 mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, BLACK | 114 mm | 25 mm | 11 mm | 20 mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 1 mm | 33 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, GREY | 114 mm | 25 mm | 11 mm | 20 mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 1 mm | 33 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, BLACK | 54 mm | 12.5 mm | 8 mm | 7 mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.588 mm | 8 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, GREY | 54 mm | 12.5 mm | 8 mm | 7 mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.588 mm | 8 mm | 15 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, BLACK | 63 mm | 15.2 mm | 8 mm | 8.5 mm | 50 . | pcs | 4-8 mm | 9 . | 1.588 mm | 8 mm | 19 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, GREY | 63 mm | 15.2 mm | 8 mm | 8.5 mm | 50 . | pcs | 4-8 mm | 9 . | 1.588 mm | 8 mm | 19 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, BLACK | 78 mm | 18.6 mm | 8 mm | 10.5 mm | 50 . | pcs | 5-10 mm | 11 . | 1.588 mm | 8 mm | 22 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, GREY | 78 mm | 18.6 mm | 8 mm | 10.5 mm | 50 . | pcs | 5-10 mm | 11 . | 1.588 mm | 8 mm | 22 mm | 22 mm | Other |
Yes
|
|
|
- Total: 14
Similar Options
Approvals
- Total: 14
| Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, GREY | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8.0mm, GREY | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, GREY | IP68 |
|
No
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, GREY | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, GREY | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, GREY | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, BLACK | IP68 |
|
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, GREY | IP68 |
|
Yes
|
|
|
- Total: 14
Technical Properties
- Total: 14
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8.0mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, BLACK | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, GREY | No | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
- Total: 14
Other information
- Total: 14
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M12-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M12-N-LGY |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M16-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M16, 4-8.0mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M16-N-LGY |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M20-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M20, 6-12mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M20-N-LGY |
No
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M25-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION M25, 13-18mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-M25-N-LGY |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG07-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG7, 3-6.5mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG07-N-LGY |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG09-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG9, 4-8mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG09-N-LGY |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, BLACK | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG11-N-BLK |
Yes
|
|
|
| CABLE GLAND PA, BENDING PROTECTION PG11, 5-10mm, GREY | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | PCGS-PG11-N-LGY |
Yes
|
|
|
- Total: 14
