PCGS-M12-N-LGY

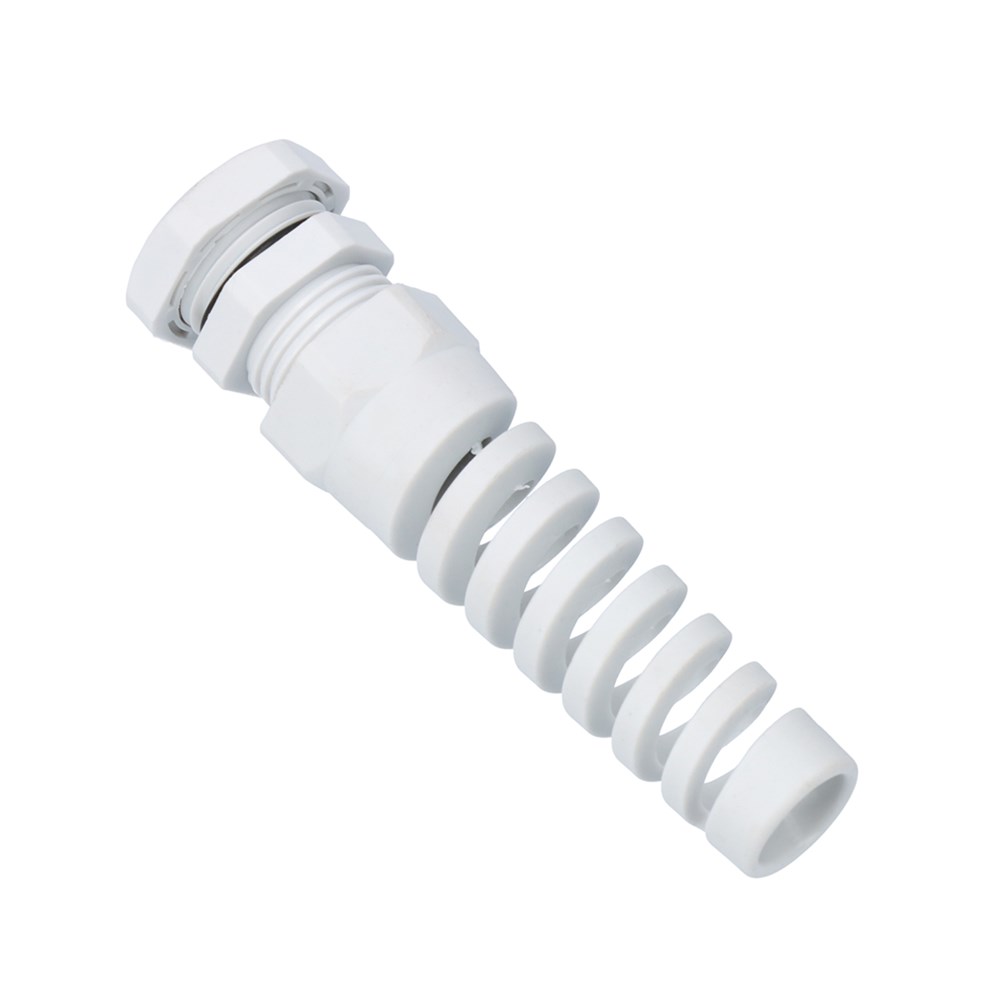

CABLE GLAND PA, BENDING PROTECTION M12, 3-6.5mm, GREY
PCGS-M12-N-LGY
- Availability:
-
Yes
- Total: 1
| Product Description | ||||
|---|---|---|---|---|
| PCGS BASIC, Standard cable gland Flex PA6, with flex spiral nut. |
|
- Total: 1
- Total: 1
Related items
PCGS BASIC, Standard cable gland Flex PA6, with flex spiral nut.
Watertight and easy-to-assemble cable gland with good strain relief and large clamping area. With flexible spiral for optimal cable bending protection.
Including lock nut.
- Total: 1
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP68 |
| With strain relief | Yes |
| Model | Straight |
| Material quality | Polyamide (PA) |
| RAL-number | 7035 . |
| Thread type | Metric |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | Yes |
| With locknut | Yes |
| Snapping in opening | Yes |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | No |
| For armoured cable | No |
| EMC-version | No |
| Screened | No |
| Type of sealing | Sealing ring |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Grey |
| Surface protection | Untreated |
| Operating temperature | -40-100 °C |
| Material | Plastic |
| Halogen free | Yes |
| Wrench width | 15 mm |
Dimensions
| H | 54 mm |
|---|---|
| AG | 12 mm |
| GL | 8 mm |
| Ød1 | 7 mm |
| MOQ | 50 . |
| Unit | pcs |
| Suitable for cable diameter | 3-6.5 mm |
| Nominal thread size metric/PG | 12 . |
| Pitch thread | 1.5 mm |
| Thread length | 8 mm |
| Wrench width | 15 mm |
| Hexagon angular dimension | 15 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 733117640853 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | PCGS-M12-N-LGY |
| Taric code | 39269097 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP68 |
|---|---|
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Plastic, standard |
| Alternative SKU | PCGS-M12-N-LGY |
Compliance
| PFAS | No PFAS |
|---|---|
| POPs | No POPs |
| RoHS | RoHS 3 (2015/863) |
