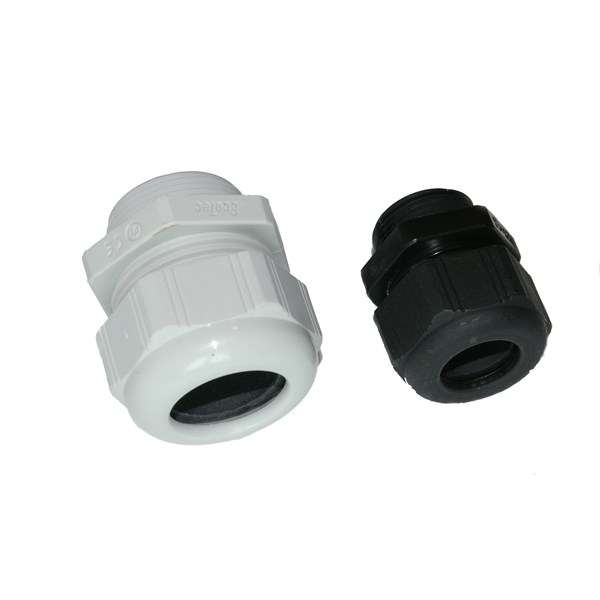

Ecotec, standard cable gland PA6
Formtätning: SBR
Technical properties
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 9005 ., 7035 .
- Thread type:
- Metric, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Light grey, Black
- Surface protection:
- Untreated
- Operating temperature:
- -40-100 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15 mm, 19 mm, 24 mm, 27 mm, 33 mm, 42 mm, 53 mm, 60 mm, 68 mm, 22 mm
Show more
Item List
- Total: 28
- Total: 28
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
LCM_datasheet
Dimensions
- Total: 28
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, ECOTEC, GREY M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M50, 32-38mm | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M50, 23-38mm | 5 . | pcs | 23-38 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG7, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG9, 4-8mm | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG13, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG21, 13-18mm | 50 . | pcs | 13-18 mm | 21 . | 1.588 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG29, 18-25mm | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG7, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 7 . | 1.27 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG9, 4-8mm | 50 . | pcs | 4-8 mm | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG11, 5-10mm | 50 . | pcs | 5-10 mm | 11 . | 1.41 mm | 8 mm | 22 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG13, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG16, 10-14mm | 50 . | pcs | 10-14 mm | 16 . | 1.41 mm | 10 mm | 27 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG29, 18-25mm | 25 . | pcs | 18-25 mm | 29 . | 1.588 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
- Total: 28
Similar Options
Approvals
- Total: 28
- Total: 28
Technical Properties
- Total: 28
| Product Description | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, ECOTEC, GREY M12, 3-6.5mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 4-8mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 5-10mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M20, 10-14mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M25, 13-18mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M32, 18-25mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M40, 22-32mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M50, 32-38mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY M63, 37-44mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M12, 3-6.5mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M16, 5-10mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M20, 6-12mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M32, 18-25mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M40, 22-32mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 53 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK M50, 23-38mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, ECOTEC, BLACK M63, 37-44mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 68 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG7, 3-6.5mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG9, 4-8mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG11, 5-10mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG13, 6-12mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG21, 13-18mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, GREY PG29, 18-25mm | IP68 | Yes | Straight | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Light grey | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG7, 3-6.5mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG9, 4-8mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG11, 5-10mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 22 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG13, 6-12mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG16, 10-14mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 27 mm |
Yes
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG29, 18-25mm | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | PG | No | Yes | No | No | No | No | No | No | No | No | Sealing ring | None | None | Black | Untreated | -40-100 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
- Total: 28
Other information
- Total: 28
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, ECOTEC, GREY M12, 3-6.5mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM12G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 4-8mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM16G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M16, 5-10mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM16GE |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M20, 10-14mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM20GE |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M25, 13-18mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM25G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M32, 18-25mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM32G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M40, 22-32mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM40G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M50, 32-38mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM50G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY M63, 37-44mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM63G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M12, 3-6.5mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM12B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M16, 5-10mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM16BE |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M20, 6-12mm | EC000441 - Cable gland | 7.0 | Plastic, standard | KABELFÖRSKRUVNING, ECOTEC, SVART | LCM20B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M32, 18-25mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM32B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M40, 22-32mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM40B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M50, 23-38mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM50B |
No
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK M63, 37-44mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCM63B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG7, 3-6.5mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP07G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG9, 4-8mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP09G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG11, 5-10mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP11G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG13, 6-12mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP13G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG21, 13-18mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP21G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, GREY PG29, 18-25mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP29G |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG7, 3-6.5mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP07B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG9, 4-8mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP09B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG11, 5-10mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP11B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG13, 6-12mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP13B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG16, 10-14mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP16B |
Yes
|
|
|
|
| CABLE GLAND, ECOTEC, BLACK PG29, 18-25mm | EC000441 - Cable gland | 7.0 |
|
Plastic, standard | LCP29B |
Yes
|
|
|
- Total: 28
