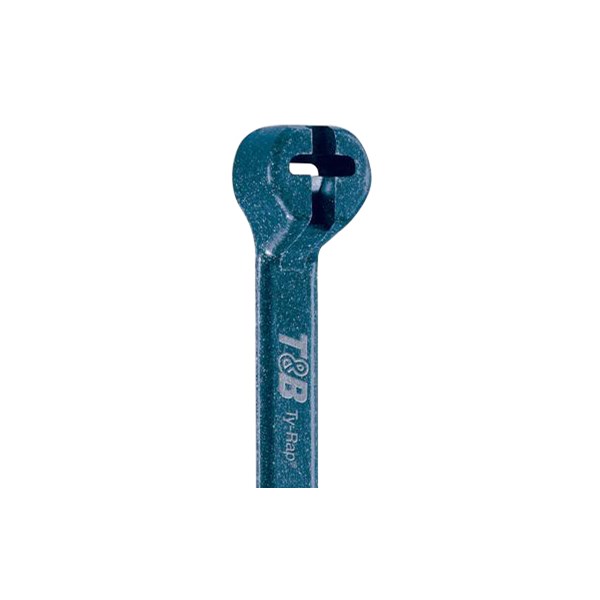

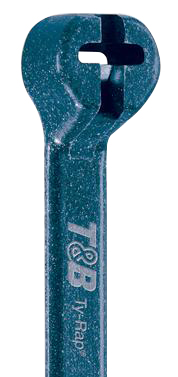

Ty-Rap, detectable cable ties - NDT-series
For contamination-sensitive industry using detection equipment.
This metal-containing cable tie has been specially developed for the food and medical fields. Detectable by metal detectors. Detectable by X-Ray. Bright blue colour for an easy visual detection.
Material - cable tie: Polyamide 6 with metal pigment
Material - tongue: Stainless steel 316
Technical properties
- Detectable:
- Yes
- Min. tensile strength:
- 200 N, 180 N, 220 N, 80 N, 540 N
- Model:
- Without toothing
- Material quality:
- Polyamide (PA)
- Operating temperature:
- -40-85 °C
- Band closure:
- Steel nose
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Blue
- Surface protection:
- Untreated
- Material:
- Plastic with metal pigments
- Halogen free:
- Yes
- Max. tensile force:
- 200 N, 180 N, 220 N, 80 N, 540 N
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Bundle diameter | MOQ | Unit | Length belt/tape/tie | Tie thickness | Band width | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 186x4.8mm, Blue Steel Barb, Traceable, PA6 | 3.5-45 mm | 100 . | pcs | 186 mm | 1.22 mm | 4.8 mm | 200 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Blue Steel Barb, Traceable, PA6 | 2-29 mm | 100 . | pcs | 140 mm | 3.6 mm | 180 N |
Yes
|
|
|
|
| Cable Tie, TY-RAP, 361x4.8mm, Blue Steel Barb, Traceable, PA6 | 4-360 mm | 100 . | pcs | 360 mm | 1.19 mm | 4.8 mm | 220 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 92x2.4mm, Blue Steel Barb, Traceable, PA6 | 2-16 mm | 100 . | pcs | 92 mm | 2.4 mm | 80 N |
Yes
|
|
|
|
| Cable Tie, TY-RAP, 340x7.0mm, Blue Steel Barb, Traceable, PA6 | 6-90 mm | 50 . | pcs | 340 mm | 1.5 mm | 7 mm | 540 N |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|
| Cable Tie, TY-RAP, 186x4.8mm, Blue Steel Barb, Traceable, PA6 |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Blue Steel Barb, Traceable, PA6 |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 361x4.8mm, Blue Steel Barb, Traceable, PA6 |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 92x2.4mm, Blue Steel Barb, Traceable, PA6 |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 340x7.0mm, Blue Steel Barb, Traceable, PA6 |
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 186x4.8mm, Blue Steel Barb, Traceable, PA6 | Yes | 200 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | None | Blue | Untreated | Plastic with metal pigments | Yes | 200 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Blue Steel Barb, Traceable, PA6 | Yes | 180 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | None | Blue | Untreated | Plastic with metal pigments | Yes | 180 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 361x4.8mm, Blue Steel Barb, Traceable, PA6 | Yes | 220 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | None | Blue | Untreated | Plastic with metal pigments | Yes | 220 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 92x2.4mm, Blue Steel Barb, Traceable, PA6 | Yes | 80 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | None | Blue | Untreated | Plastic with metal pigments | Yes | 80 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 340x7.0mm, Blue Steel Barb, Traceable, PA6 | Yes | 540 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | None | Blue | Untreated | Plastic with metal pigments | Yes | 540 N |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 186x4.8mm, Blue Steel Barb, Traceable, PA6 | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | F&B | TY525MR-NDT |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Blue Steel Barb, Traceable, PA6 | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TY524MR-NDT, 7TCG009330R0028, F&B | TY524MR-NDT |
Yes
|
|
|
| Cable Tie, TY-RAP, 361x4.8mm, Blue Steel Barb, Traceable, PA6 | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TY528M-NDT, 7TCG009330R0025, TY 528 MR-NDT, F&B | TY528MR-NDT |
Yes
|
|
|
| Cable Tie, TY-RAP, 92x2.4mm, Blue Steel Barb, Traceable, PA6 | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TY523M-NDT, TY 523 M-NDT, 7TCG009330R0027, F&B | TY523MR-NDT |
Yes
|
|
|
| Cable Tie, TY-RAP, 340x7.0mm, Blue Steel Barb, Traceable, PA6 | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | F&B | TY527MR-NDT |
Yes
|
|
|
- Total: 5
