360 view
TY 525 MR-NDT

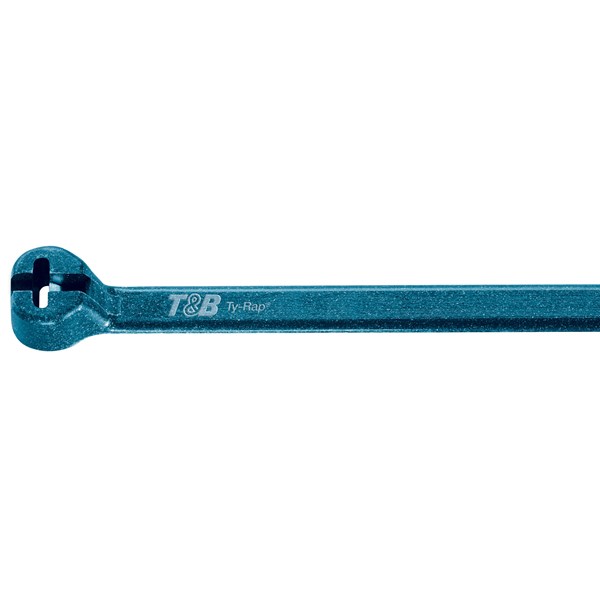

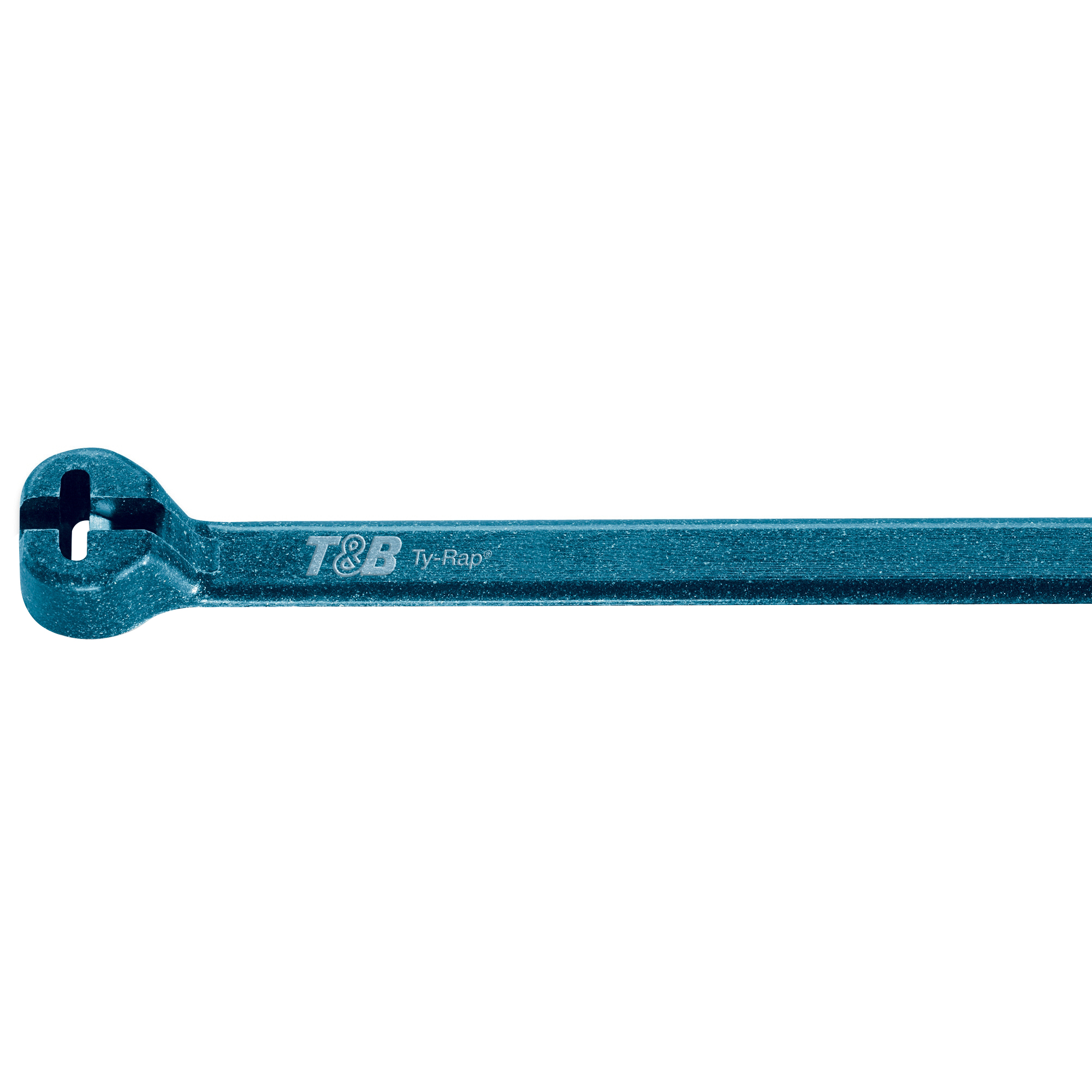

Cable Tie, TY-RAP, 186x4.8mm, Blue Steel Barb, Traceable, PA6
TY 525 MR-NDT
- Availability:
-
Yes
- Total: 1
Related items
Ty-Rap, detectable cable ties - NDT-series
For contamination-sensitive industry using detection equipment.
This metal-containing cable tie has been specially developed for the food and medical fields. Detectable by metal detectors. Detectable by X-Ray. Bright blue colour for an easy visual detection.
Material - cable tie: Polyamide 6 with metal pigment
Material - tongue: Stainless steel 316
- Total: 1
E1516794
Product Properties
| Detectable | Yes |
|---|---|
| Min. tensile strength | 200 N |
| Model | Without toothing |
| Material quality | Polyamide (PA) |
| Operating temperature | -40-85 °C |
| Band closure | Steel nose |
| UV-stable acc. ASTM D6779 | No |
| Transparent | No |
| Fluorescent | No |
| Solvable fastener | No |
| Text strip | None |
| Type of fastening | None |
| Colour | Blue |
| Surface protection | Untreated |
| Material | Plastic with metal pigments |
| Halogen free | Yes |
| Max. tensile force | 200 N |
Dimensions
| Bundle diameter | 3.5-45 mm |
|---|---|
| MOQ | 100 . |
| Unit | pcs |
| Length belt/tape/tie | 186 mm |
| Tie thickness | 1.22 mm |
| Band width | 4.8 mm |
| Max. tensile force | 200 N |
Logistics
| Barcode | 541502250700 |
|---|---|
| Country of origin | HU |
| E-no | E1516794 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | TY 525 MR-NDT |
| Taric code | 39269097 |
| Unit | pcs |
Approvals
| Inflammability class of insulation material according to with UL94 | V2 |
|---|
Other info
| ETIM-Class | EC000046 - Cable tie |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Cable ties with higher technical spec |
| Search Description | F&B |
| Alternative SKU | TY525MR-NDT |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
