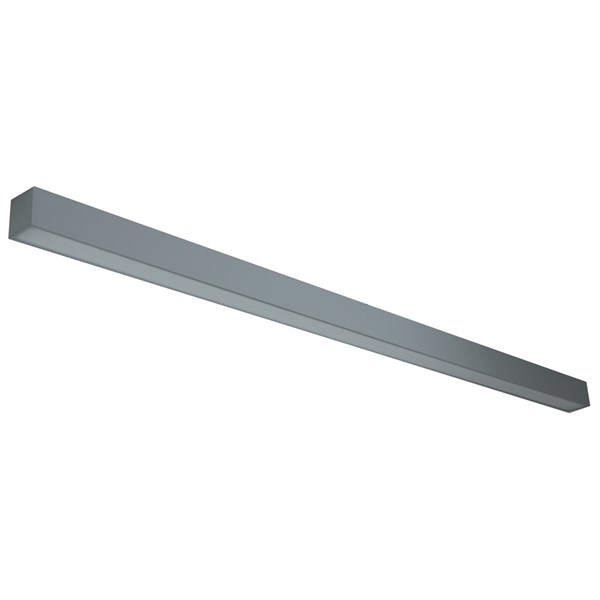

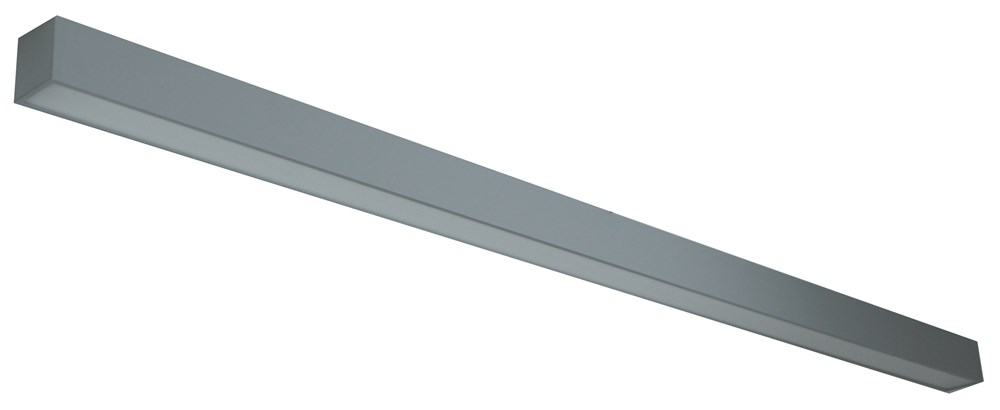

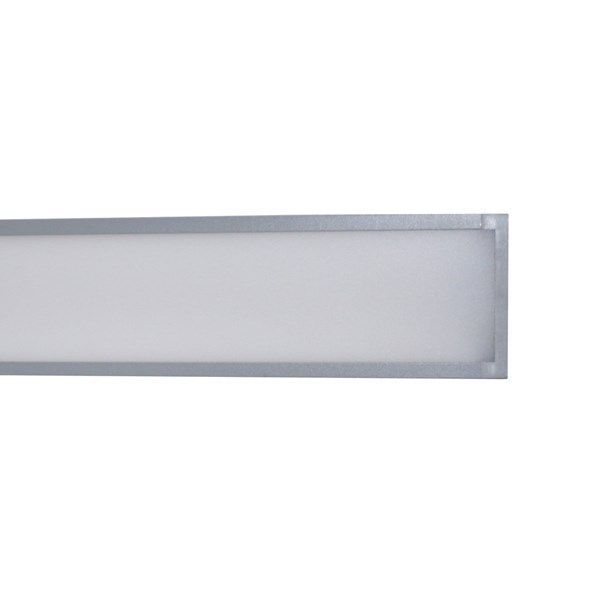

LED ARMATUR 60x60mm

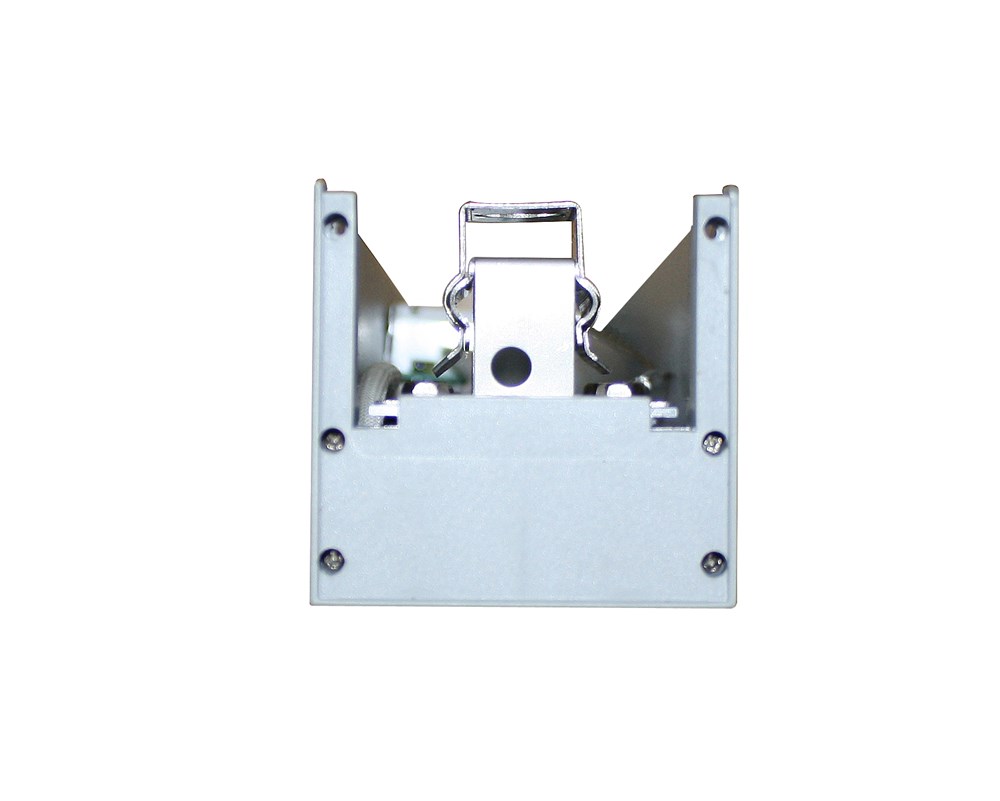

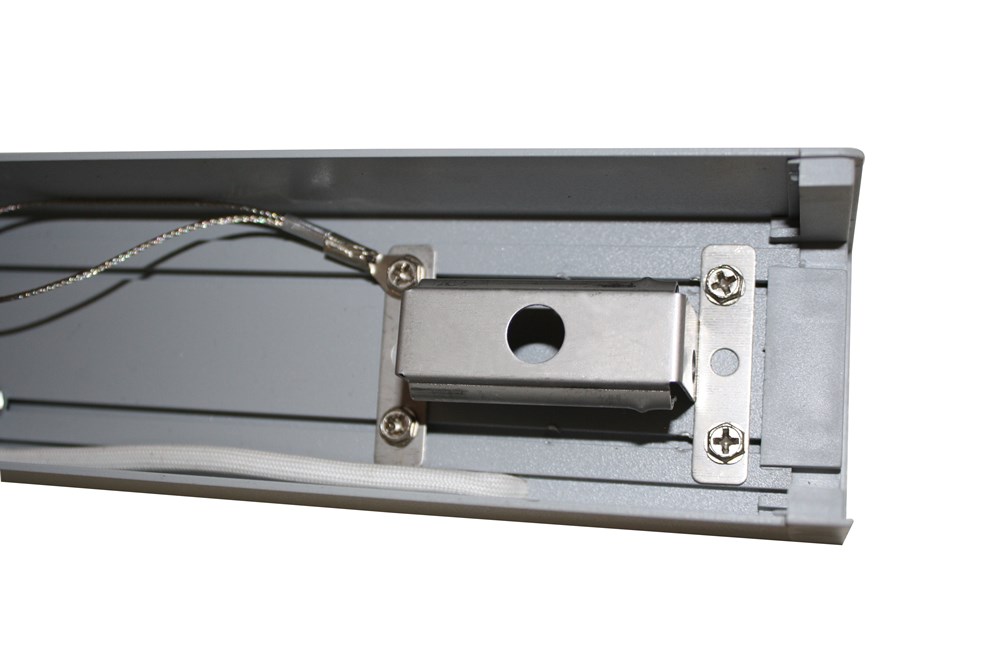

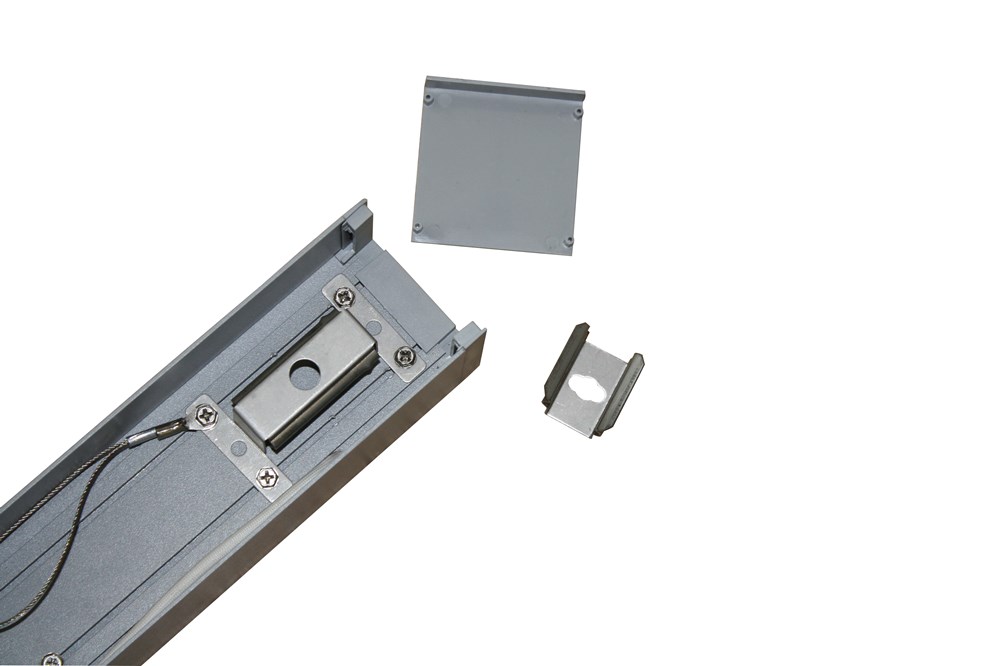

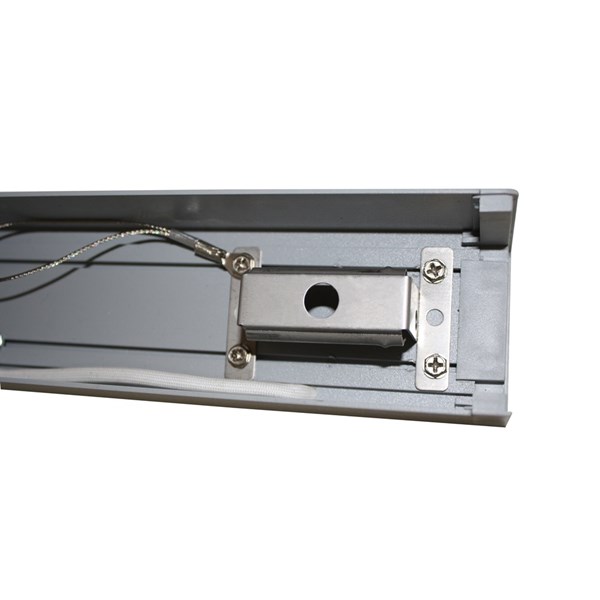

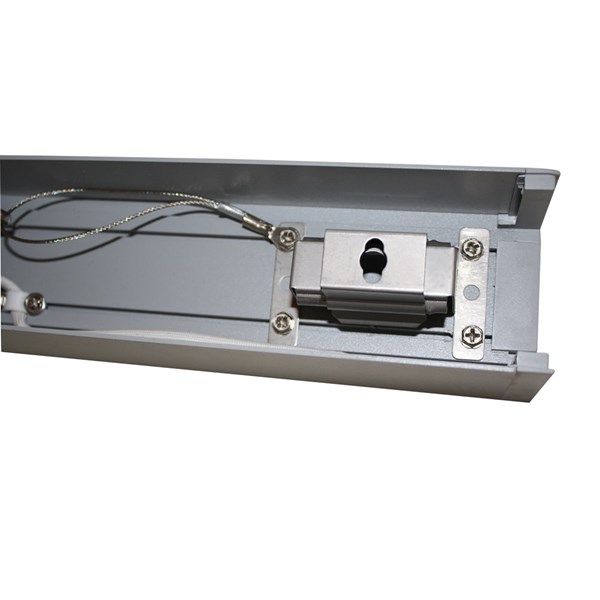

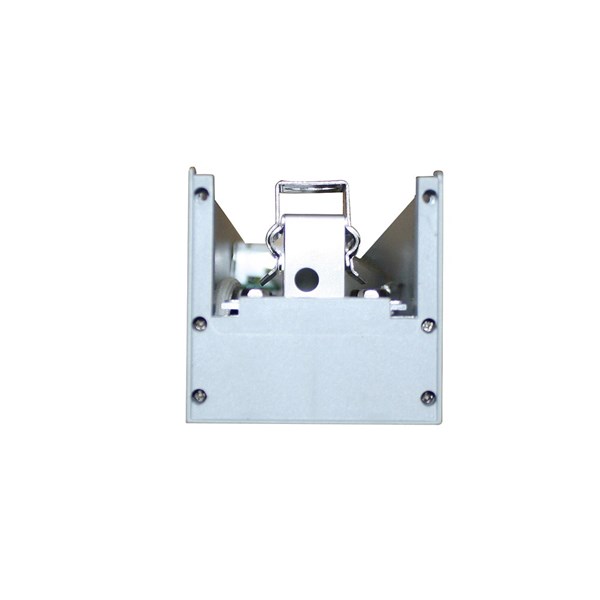

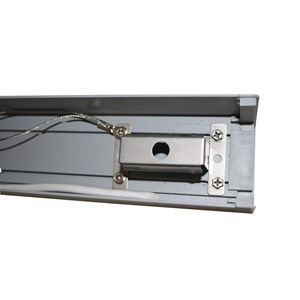

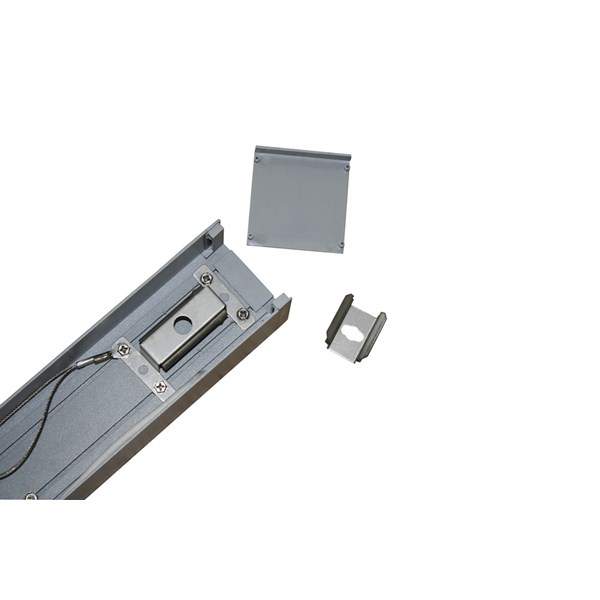

LED Luminaires for pendant installation or surface mount to the ceiling.
Technical data:
Length: See below.
Height: 60 mm
Width: 60 mm
Color temp: See below.
Efficacy: Approx. 100lm/W, See below.
Life-span: 50.000h
Light beam spread: 110°
Voltage: 110-250VAC
Type of LED: SMD 2835 LED
Power: See below.
Dimmable: Yes
CRI: RA80

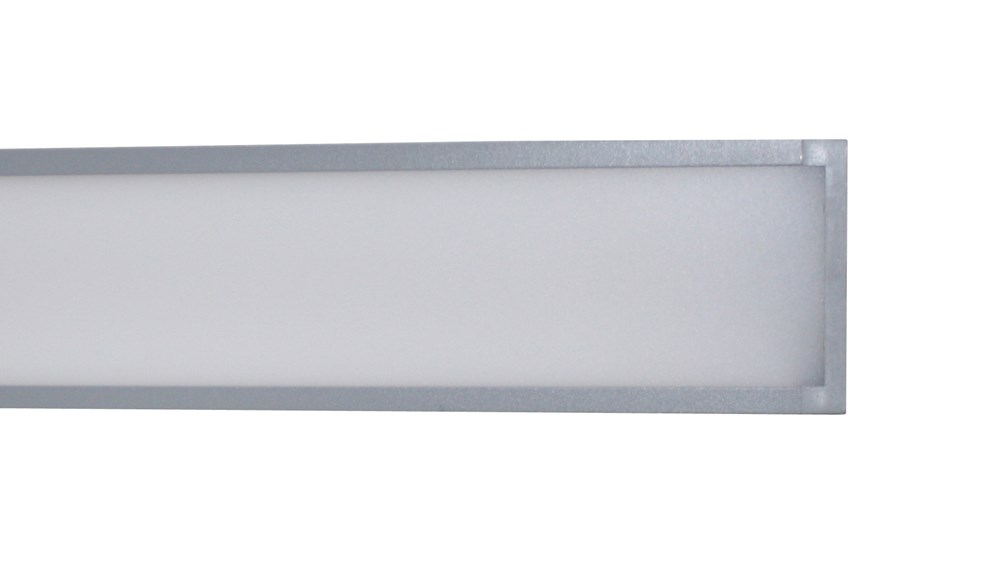

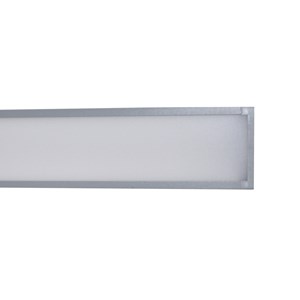

Lens: PMMA
Energy rating: A++
On/Off delay: <1s
IP rating: IP20
Driver: On/Off, 0-10V or Dali. See below.
Warranty: 3 years.
Technical properties
- Dimming 0-10 V:
- Yes
- Dimming DALI:
- Yes

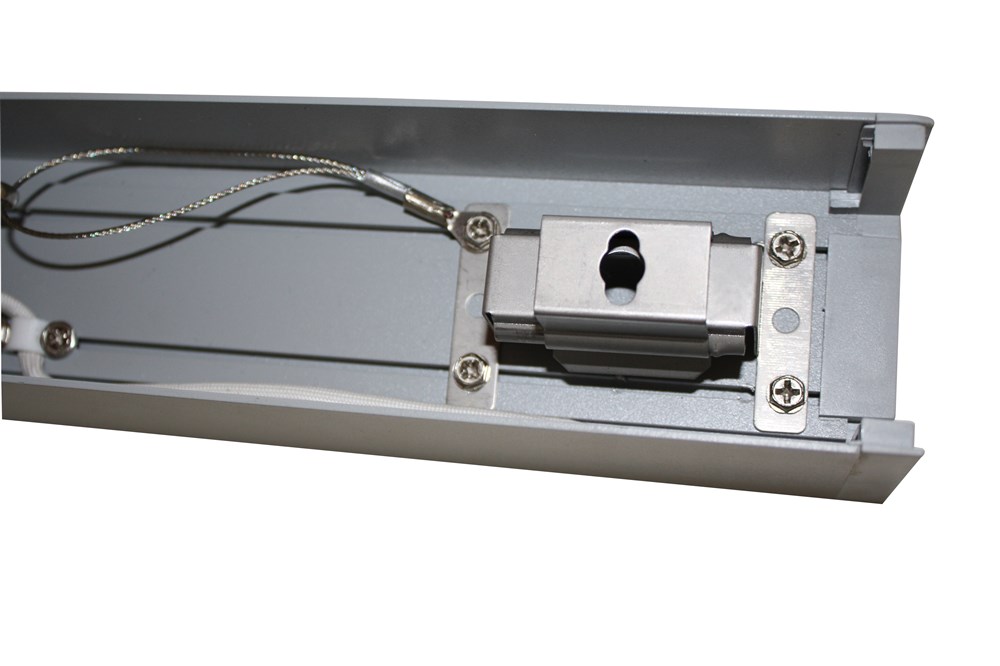

- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Housing colour:
- Grey
- Voltage type:
- AC
- Nominal voltage:
- 110-250 V
- With control gear:
- Yes
- Light distribution:
- Symmetric
- Rated life time L70/B50 at 25 °C:
- 50000 h
- Max. system power:
- 40 W, 28 W, 50 W, 36 W
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 80-89
- Luminaire efficacy:
- 100 lm/W
- Degree of protection (IP):
- IP20
- Rated luminous flux according to IEC 62722-2-1:
- 3900 lm, 2900 lm, 4900 lm, 3800 lm
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
LA6060_English Manual
Dimensions
- Total: 4
| Product Description | Width | MOQ | Height/depth | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| LED LUMINAIRES 60x60mm, 1190mm, 40W, 3000K, 3900lm 230VAC, INKL DRIVER DIMMABLE TE/LE, IP20 | 60 mm | 1 . | 60 mm | pcs | 1190 mm |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1190mm, 28W, 3000K, 2900lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | 60 mm | 1 . | 60 mm | pcs | 1190 mm |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 50W, 3000K, 4900lm 230VAC, INKL DRIVER DIMMABLE 0-10V, IP20 | 60 mm | 1 . | 60 mm | pcs | 1490 mm |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 36W, 3000K, 3800lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | 60 mm | 1 . | 60 mm | pcs | 1490 mm |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Rated luminous flux according to IEC 62722-2-1 | Voltage type | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|
| LED LUMINAIRES 60x60mm, 1190mm, 40W, 3000K, 3900lm 230VAC, INKL DRIVER DIMMABLE TE/LE, IP20 | 3900 lm | AC | IP20 |
Yes
|
|
|
|
| LED LUMINAIRES 60x60mm, 1190mm, 28W, 3000K, 2900lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | 2900 lm | AC | IP20 |
Yes
|
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 50W, 3000K, 4900lm 230VAC, INKL DRIVER DIMMABLE 0-10V, IP20 | 4900 lm | AC | IP20 |
|
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 36W, 3000K, 3800lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | 3800 lm | AC | IP20 |
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Dimming 0-10 V | Dimming DALI | Suitable for suspended mounting | Suitable for ceiling mounting | Lamp type | With light source | Housing colour | Voltage type | Nominal voltage | With control gear | Light distribution | Rated life time L70/B50 at 25 °C | Max. system power | Colour temperature | Colour rendering index CRI | Luminaire efficacy | Degree of protection (IP) | Rated luminous flux according to IEC 62722-2-1 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED LUMINAIRES 60x60mm, 1190mm, 40W, 3000K, 3900lm 230VAC, INKL DRIVER DIMMABLE TE/LE, IP20 | Yes | Yes | LED not exchangeable | Yes | Grey | AC | 110-250 V | Yes | Symmetric | 50000 h | 40 W | 3000 K | 80-89 | 100 lm/W | IP20 | 3900 lm |
Yes
|
|
|
||
| LED LUMINAIRES 60x60mm, 1190mm, 28W, 3000K, 2900lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | Yes | Yes | Yes | LED not exchangeable | Yes | Grey | AC | 110-250 V | Yes | Symmetric | 50000 h | 28 W | 3000 K | 80-89 | 100 lm/W | IP20 | 2900 lm |
Yes
|
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 50W, 3000K, 4900lm 230VAC, INKL DRIVER DIMMABLE 0-10V, IP20 | Yes | Yes | Yes | LED not exchangeable | Yes | Grey | AC | 110-250 V | Yes | Symmetric | 50000 h | 50 W | 3000 K | 80-89 | 100 lm/W | IP20 | 4900 lm |
Yes
|
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 36W, 3000K, 3800lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | Yes | Yes | Yes | LED not exchangeable | Yes | Grey | AC | 110-250 V | Yes | Symmetric | 50000 h | 36 W | 3000 K | 80-89 | 100 lm/W | IP20 | 3800 lm |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED LUMINAIRES 60x60mm, 1190mm, 40W, 3000K, 3900lm 230VAC, INKL DRIVER DIMMABLE TE/LE, IP20 | EC002892 - Ceiling-/wall luminaire | 9.0 |
|
Ceiling Lights & Pendants | LED ARMATUR 60X60MM, 1190MM, 40W, 3000K, 3900LM | LA6060-1200-010V |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1190mm, 28W, 3000K, 2900lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | EC002892 - Ceiling-/wall luminaire | 9.0 |
|
Ceiling Lights & Pendants | LED ARMATUR 60X60MM, 1190MM, 28W, 3000K, 2900LM | LA6060-1200-DALI |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 50W, 3000K, 4900lm 230VAC, INKL DRIVER DIMMABLE 0-10V, IP20 | EC002892 - Ceiling-/wall luminaire | 9.0 |
|
Ceiling Lights & Pendants | LED ARMATUR 60X60MM, 1490MM, 50W, 3000K, 4900LM | LA6060-1500-010V |
Yes
|
|
|
| LED LUMINAIRES 60x60mm, 1490mm, 36W, 3000K, 3800lm 230VAC, INKL DRIVER DIMMABLE DALI, IP20 | EC002892 - Ceiling-/wall luminaire | 9.0 |
|
Ceiling Lights & Pendants | LED ARMATUR 60X60MM, 1490MM, 36W, 3000K, 3800LM | LA6060-1500-DALI |
Yes
|
|
|
- Total: 4
