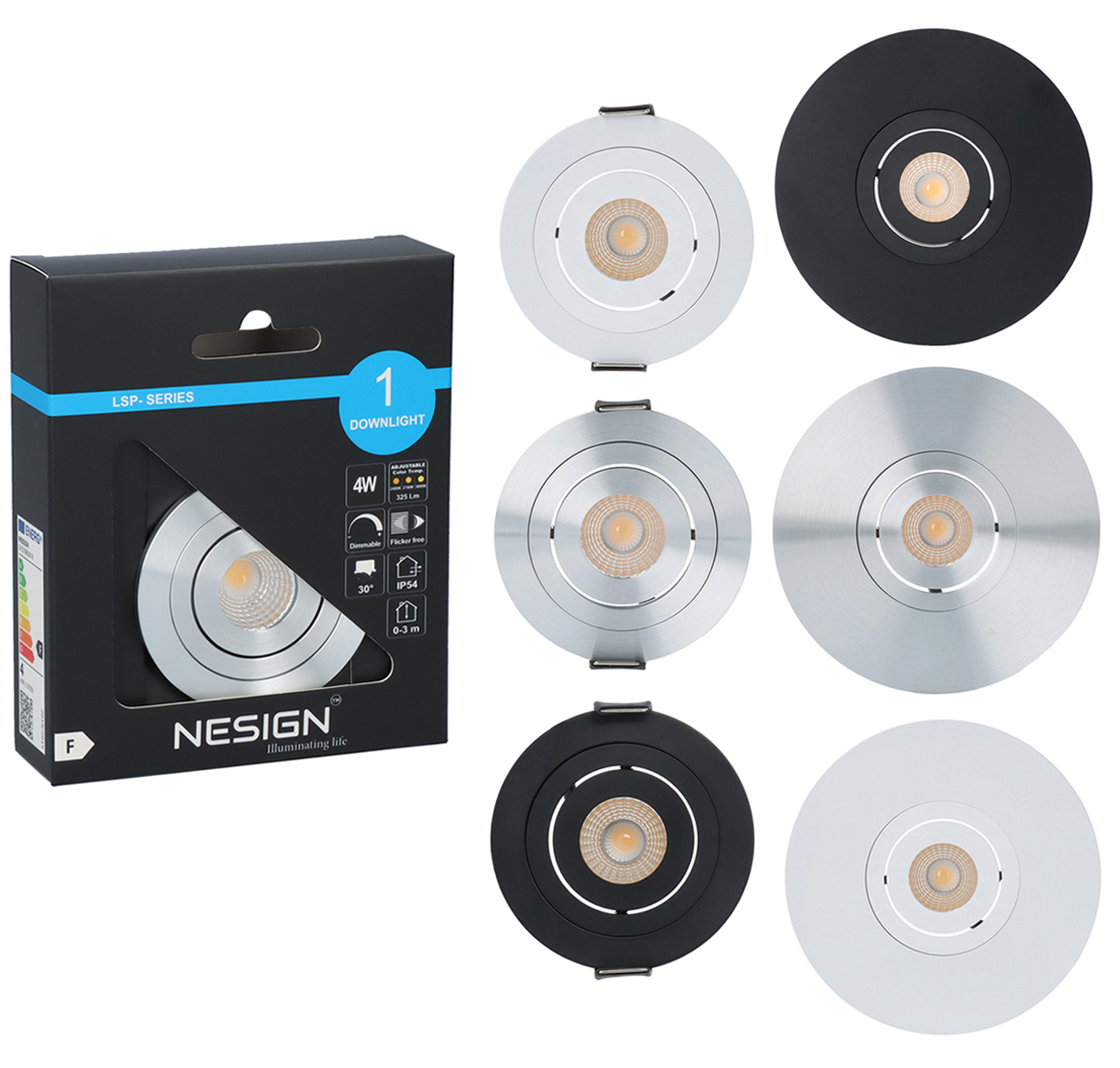

LSP Downlights 3CCT Runda 3-Pack
These downlights can be tilted, only use high quality components and has a premium feeling.Works for both indoor and outdoor use.
Available with diameter 60 mm, 80 mm and 90 mm.
60 mm frames have springs and can be mounted in ceiling.Hole size: 52-54 mm.
80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes. Hole size: 52-62 mm.
90 mm frames have metal wings and can be mounted in ceiling as well as in 80mm junction boxes.Hole size: 52-72mm.3-pack. Can be supplemented with drivers, cables and connectors.
Technical data:
Power: 3.3W
Lumen: See below.
Dimmable: Yes
Light beam spread: 60°
Color temp: See below.
IP rating: IP54
Temp. Range: -20°C to +50°C
Life-span: 70% after 50.000h
Voltage: 1-10V
Amperage: 350mA
Amount of LED’s: 3pcs
Type of LED: COB, CREE CXA1304-2 STEP
CRI: RA90
Optics: Reflector with a prism in front of the LED.
Glass: Clear
Energy rating: A++
Cable: 100 mm AWG22 with connector.
Size: Depth = 50 mm, Height = 60 mm
Downlight depth in box: Max 25 mm
Available in white, black or aluminum color.
Technical properties
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- No
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- F
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 4 W
- Colour of light:
- White
- Colour temperature:
- 2400-3000 K
- Colour rendering index CRI:
- 80-89
- Luminous flux:
- 325 lm
- Lamp efficacy:
- 82 lm/W
- Luminous intensity:
- 364 cd
- Number of poles:
- 2 .
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP54
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 325 lm
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
LSP Product Information sheet_eng
Dimensions
- Total: 3
| Product Description | Width | Built-in width | Built-in length | Built-in diameter | Conductor cross section | MOQ | Connectable conductor cross section | Height/depth | Unit | Length | Outer diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, ALU, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 0 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 80 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, BLACK, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 0 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 80 mm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, WHITE, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 0 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 80 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Rated luminous flux according to IEC 62722-2-1 | Protection class according to IEC 61140 | Voltage type | Degree of protection (NEMA) | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, ALU, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 325 lm | III | AC | Other | IP54 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, BLACK, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 325 lm | III | AC | Other | IP54 |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, WHITE, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | 325 lm | III | AC | Other | IP54 |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Dimmable | Dimming 0-10 V | Dimming 1-10 V | Dimming DALI | Dimming DSI | Dimming DMX | Dimming potentiometer (integrated) | Dimming GPRS | Dimming LineSwitch | Dimming manufacturer's proprietary system | Dimming mains voltage modulation | Dimming phase cut-off (trailing edge) | Dimming phase cut-on (leading edge) | Dimming programmable | Dimming RF | Dimming Sine Wave Reduction | Dimming Touch and Dim | Dimming Zigbee | Dimming with push-button | Protection class according to IEC 61140 | Housing material | Suitable for surface mounting | Suitable for built-in mounting | Suitable for wall mounting | Suitable for suspended mounting | Suitable for ceiling mounting | Suitable for traverse mounting | Suitable for pedestal/floor mounting | Suitable for light-track mounting | Suitable for clamp-mounting | Suitable for low voltage cable system | Adjustability | With movement sensor | With light sensor | Lamp type | With light source | Suitable for number of light sources | Lamp holder | Housing colour | Material cover | Surface brushed | Voltage type | Nominal voltage | Type of control gear | With control gear | Dimming depending on control gear | Reflector | Light distributor | Light distribution | Beam angle | Light outlet | Energy efficiency class of the built-in lamp | Degree of protection (NEMA) | Suitable for lamp power | Max. system power | Colour of light | Colour temperature | Colour rendering index CRI | Luminous flux | Lamp efficacy | Luminous intensity | Number of poles | Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Suitable for workplace according to EN 12464-1 | Covering of the luminaire with thermally insulating material possible | Connection type | Frame shape | Degree of protection (IP) | Surface protection | Rated luminous flux according to IEC 62722-2-1 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, ALU, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Aluminium | None | Yes | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | Round | IP54 | Other | 325 lm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, BLACK, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Black | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | Round | IP54 | Powder coating | 325 lm |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, WHITE, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | White | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | Round | IP54 | Powder coating | 325 lm |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, ALU, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | LSP-33CCTA80R-MW |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, BLACK, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | LSP-33CCTB80R-MW |
No
|
|
|
| 3-PACK LED DOWNLIGHTS 80mm, 3.3W, WHITE, ROUND 60gr, IP54 PRISM REFLECTOR, 3CCT, WINGS | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | LSP-33CCTW80R-MW |
Yes
|
|
|
- Total: 3
