SP 2530 SFB

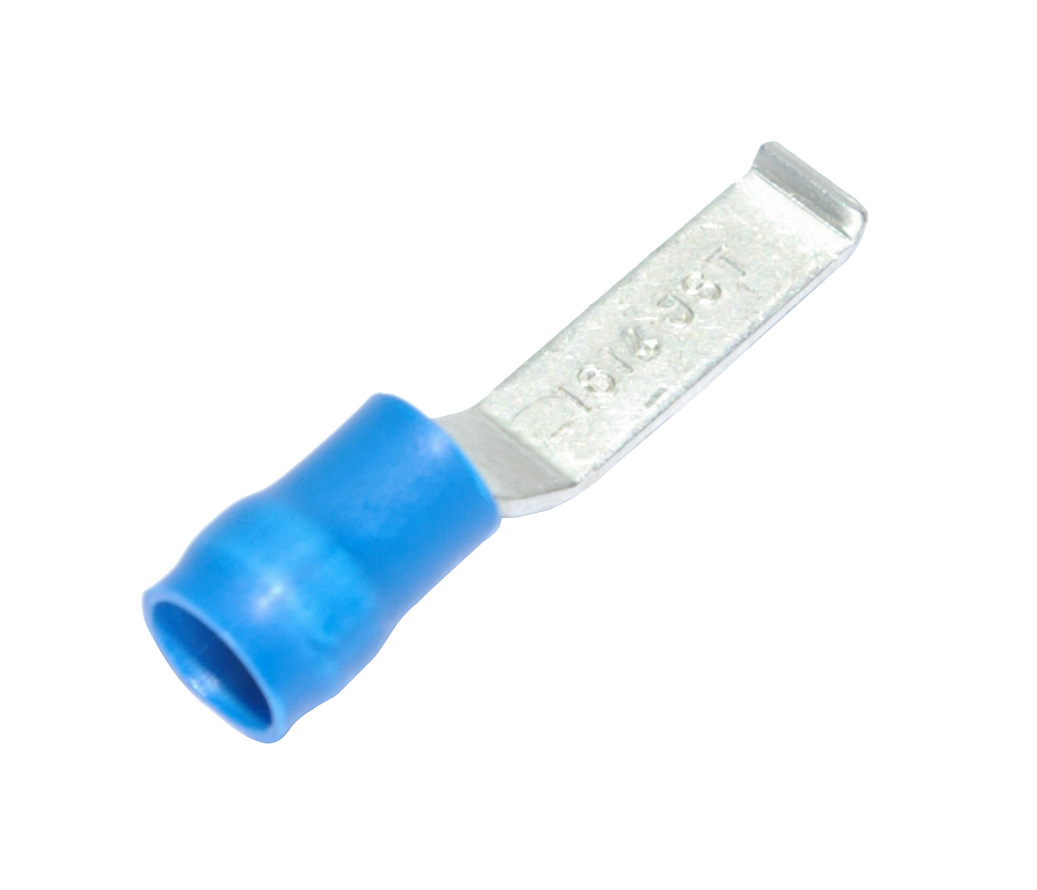

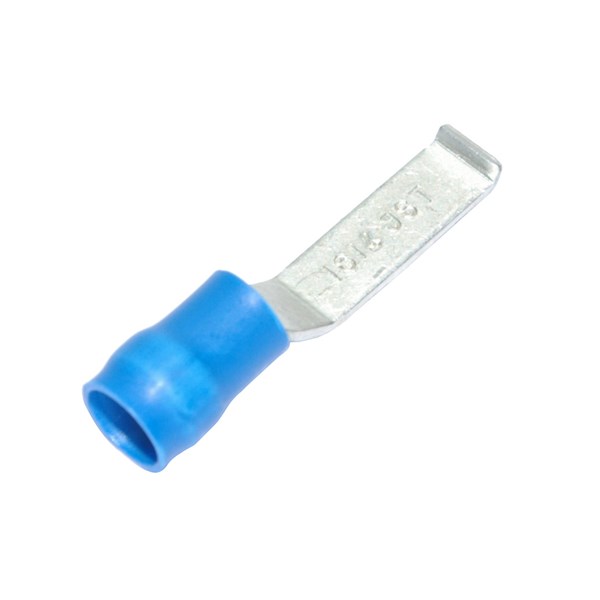

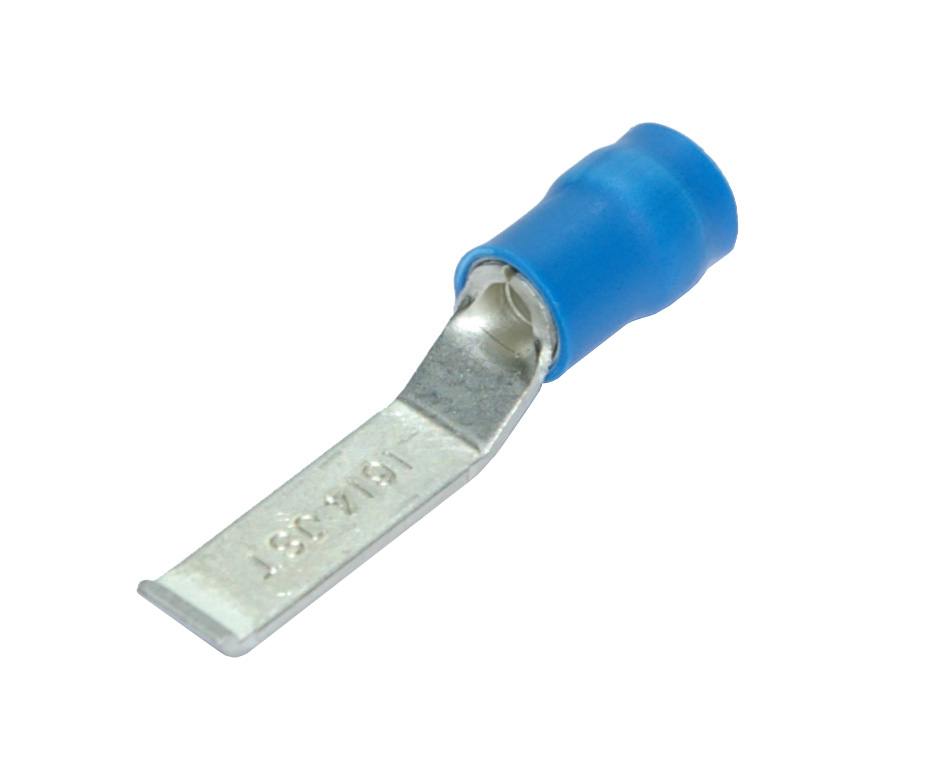

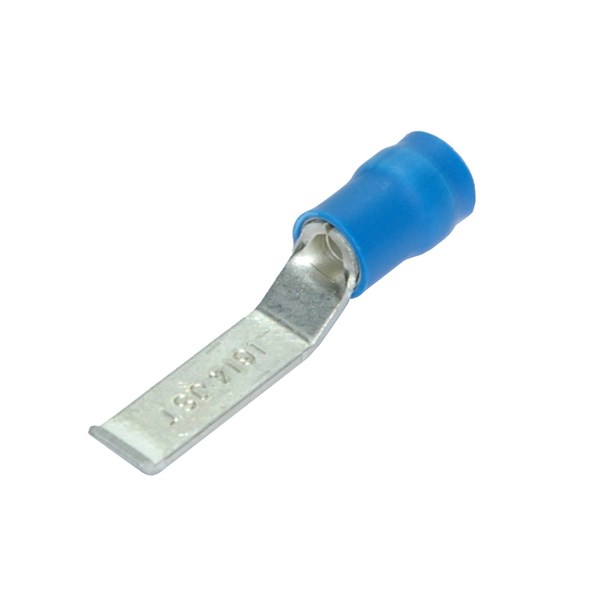

INSULATED BLADE TERMINAL BLUE, 16.8x4.6mm
SP 2530 SFB
- Availability:
-
No
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Max. current (Imax) | 27 A |
| Flange shape | Flat-pin shape |
| According to DIN | No |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| Sleeve form | Long |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Material insulation | Polyvinyl chloride (PVC) |
| Fire classification | According to UL94V2 |
| Operating temperature | -25-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | No |
Dimensions
| G | 17 mm |
|---|---|
| G1 | 15 mm |
| ID | 5.2 mm |
| T | 0.8 mm |
| L | 27.5 mm |
| N | 9.5 mm |
| W | 4.6 mm |
| X | 2 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117610299 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | SP 2530 SFB |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E42024 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Blade Terminals - PVC |
| Search Description | JST, 19560400 , FVDWSAH-2 |
| Alternative SKU | SP2530SFB |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| PFAS | No PFAS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
